DOPPLER VELOCITY LOG

DVL1000 - 300 m

Bottom-track from over 0.2 to 75 m range; 300 m max. operational depth

Request a quote
Technical specification (PDF)
get help

Need Help? Get in touch.

Overview

  • The DVL1000 is the world’s smallest survey-grade Doppler Velocity Log. It combines compact design with unprecedented functionality, being able to fly higher in the water column and closer to the seabed than similar equipment. This version has a maximum operational depth of 300 m and is ideally suited for subsea navigation where size and weight are a concern. This 1 MHz Doppler Velocity Log is used by industry leaders in the subsea market because of its high accuracy and state-of-the-art technology.

Highlights

  • Industry-wide acceptance
  • Bottom track from 0.2-75 m range
  • Quality estimates - per beam and ping

Applications

  • Diver navigation systems
  • Hand-portable unmanned underwater vehicles (UUVs)
  • Shallow-water UUVs

    • Toggle all

    • Bottom velocity

      Single ping std @ 3 m/s 0.5 cm/s
      Long-term accuracy ±0.1% / ±0.1 cm/s
      Minimum altitude 0.2 m
      Maximum altitude 75 m
      Velocity resolution 0.01 mm/s
      Maximum ping rate 8 Hz max

    • Water tracking

      Minimum accuracy 0.3% of measured value ± 0.3 cm/s
      Minimum range 2.0 m

    • Current profiling

      Minimum accuracy 0.3% of measured value ± 0.3 cm/s
      Velocity resolution 0.1 cm/s
      Interval User-specified Nth ping
      Maximum range 30 m
      Blanking 0.1 m
      Cell size 0.2-2.0 m
      Max # cells 150

    • Environmental

      Operating temperature -4 to +40 °C
      Storage temperature -20 to +60 °C
      Vibration IEC60068-2-64
      EMC approval IEC/EN 61000-6-2, 61000-6-3

    • Mechanical

      Depth rating 300 m
      Weight 1.60 kg
      Weight in water 0.15 kg
      Height 158 mm
      Diameter ø114 mm

    • Hardware

      Frequency of operation 1 MHz
      Beam width 2.9°
      Configuration 4-beam Janus array convex transducer, 25° beam angle
      Internal memory 16 GB / 64 GB optional
      Frequency of operation 500 kHz
      Bandwidth 25% centered at transmit frequency

    • Interfaces

      Serial (either serial or ethernet) Configurable RS-232 or RS-422, 8-pin male
      Ethernet 10/100 Mbits Auto MDI-X.TCP/IP, UDP/IP, HTTP protocols. Fixed IP / DHCP client /Auto IP address assignment.UPnP and Nortek proprietary instrument discovery over Ethernet. IEEE1588/PTP and NTP for absolute time stamping. Multiple simultaneous data format transmission possible. Data formats Nortek proprietary
      Data formats Nortek proprietary w/ 1 ms time stamp accuracy, NMEA0183, Variants of PDx
      Trigger Internal 1, 2, 3, 4, 5, 6, 7 or 8 Hz or Trigger In. Trigger option through command (ethernet or serial) External TTL or 485 lines: (configurable Rising/Falling/Edges)

    • Sensors

      Pressure 0.1% FS /precision better than 0.002% of full scale per sample
      Temperature -4° to +40 °C ± 0.1 °C

    • Power

      DC input 12-48 V
      Maximum continuous current 1.5 A
      Average power 1.3 W*
      * Power based on 1 Hz sampling and altitude with greatest transmit pulse.

    • Materials

      Standard models POM housing

    • Toggle all

    • Technical drawings

      DVL 1000 - 300m General Arrangement - NGA032-005....Rev.A...

      Download this

    • End User Declaration

      End User Declaration - Nortek DVL

      Download this

      Declaration of conformity

      Download this

    • Toggle all

    • Main Product

      01

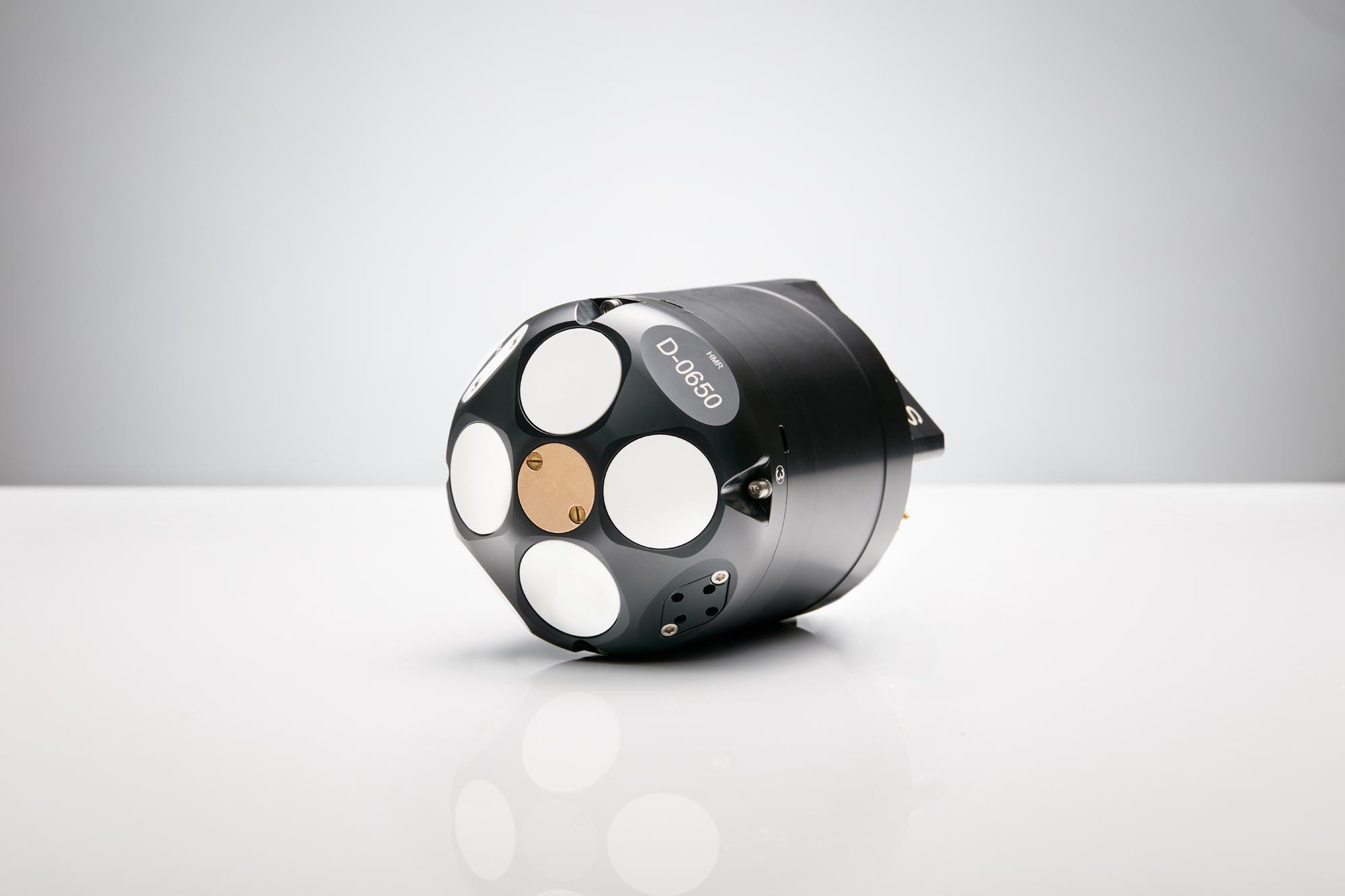

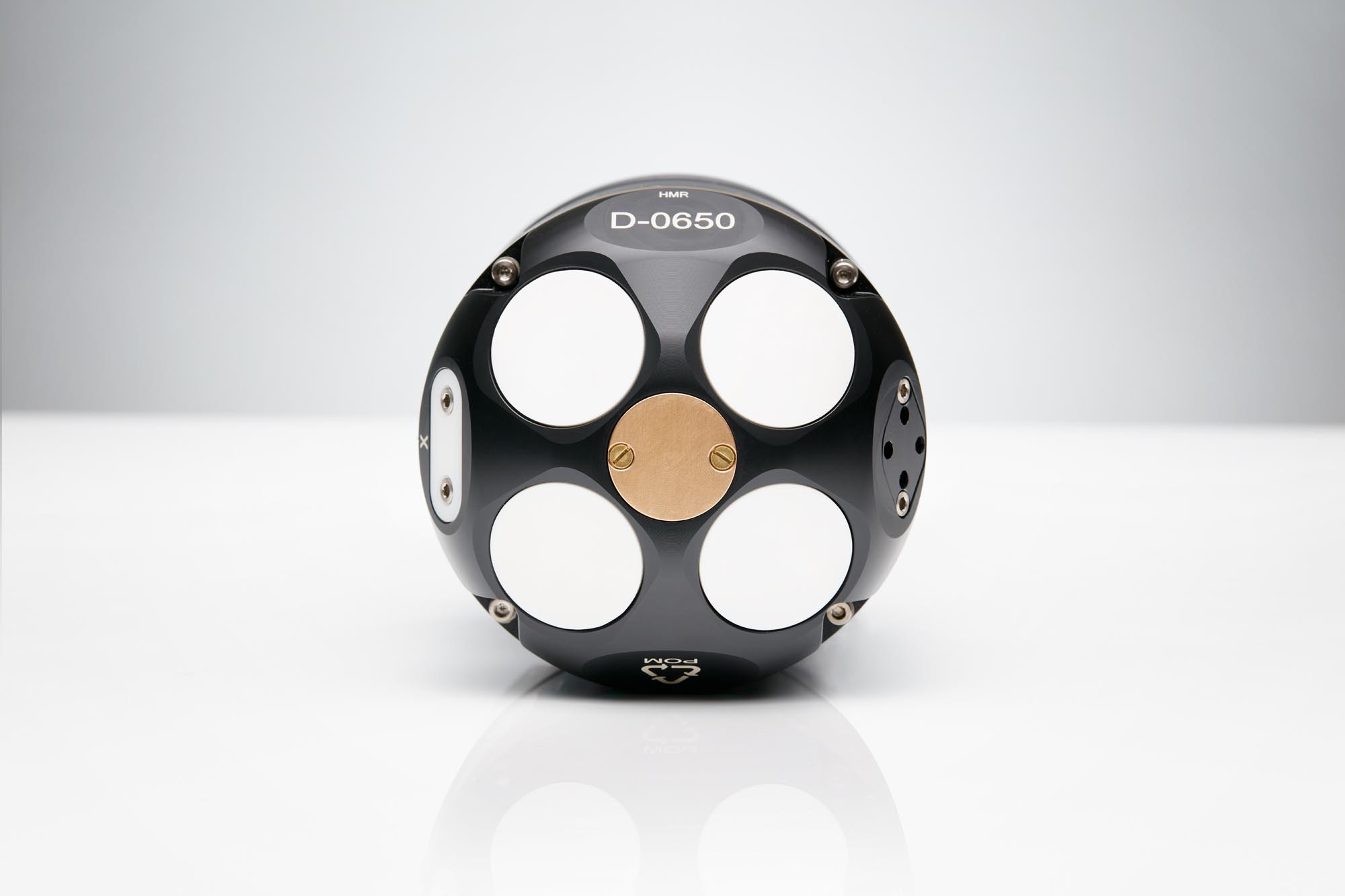

      DVL1000, 300m

    • Probe type / Head

      01

      4 beam head

    • Housing

      01

      Plastic housing, 300m

    • Memory

      01

      16 GB SD card data logger

      02

      64 GB

    • Pressure sensors

      01

      Pressure sensor 0-10 m, 0,1%

      02

      Pressure sensor 0-20 m, 0,1%

      03

      Pressure sensor 0-30 m, 0,1%

      04

      Pressure sensor 0-50 m, 0,1%

      05

      Pressure sensor 0-100 m, 0,1%

      06

      Pressure sensor 0-200m, 0,1%

      07

      Pressure sensor 0-300m, 0,1%

    • Cables

      01

      Cable, 8 pin female ethernet AD2CP with RS485 trigger

      02

      Cable, 8 pin female serial AD2CP with RS485 trigger

      03

      Cable, 8 pin female ethernet AD2CP with TTL trigger

      04

      Cable, 8 pin female serial AD2CP with TTL trigger

    • Others

      01

      Bottom track

      02

      Current profiles, 4 beams

Related content
