Nortek Speed Log - 500 kHz

SPEED LOG

Nortek Speed Log - 500 kHz

Speed Through Water measurements for navigation and current profiles for maritime applications.

Highlights

  • Accurate Speed Through Water
  • Self-calibrating (eliminates costly calibration runs)
  • Biofouling-resistant design
  • IMO.96(72) / DNV Type Approved

Overview

  • The NSL500 is a universal Doppler Speed Log that combines precision with functionality to provide accurate measurements. Speed Through Water is key to vessel navigation and monitoring fuel efficiency. The NSL500 is DNV GL type approval for IMO.96(72). The modern NSL’s touchscreen displays allow for easy user interface and operation. It provides Speed Through Water (STW) and Speed Over Ground (SOG) as well as distance traveled, even in challenging conditions. This 500 kHz Doppler Speed Log provides accurate input to vessel performance monitoring to support vessel operations.

    The NSL also has the functionality of a vessel-mounted current profiler, traditionally used for ocean current measurements onboard survey vessels. It can provide real-time current profiles up to 70 m depths. Nortek offers a complete system with instrument, interface cabinet and displays.

Applications

  • Highly accurate Speed Through Water measurements to monitor fuel efficiency
  • Current measurements for survey vessels
  • Vessel speed for performance monitoring
  • Monitoring currents for specialized offshore vessels

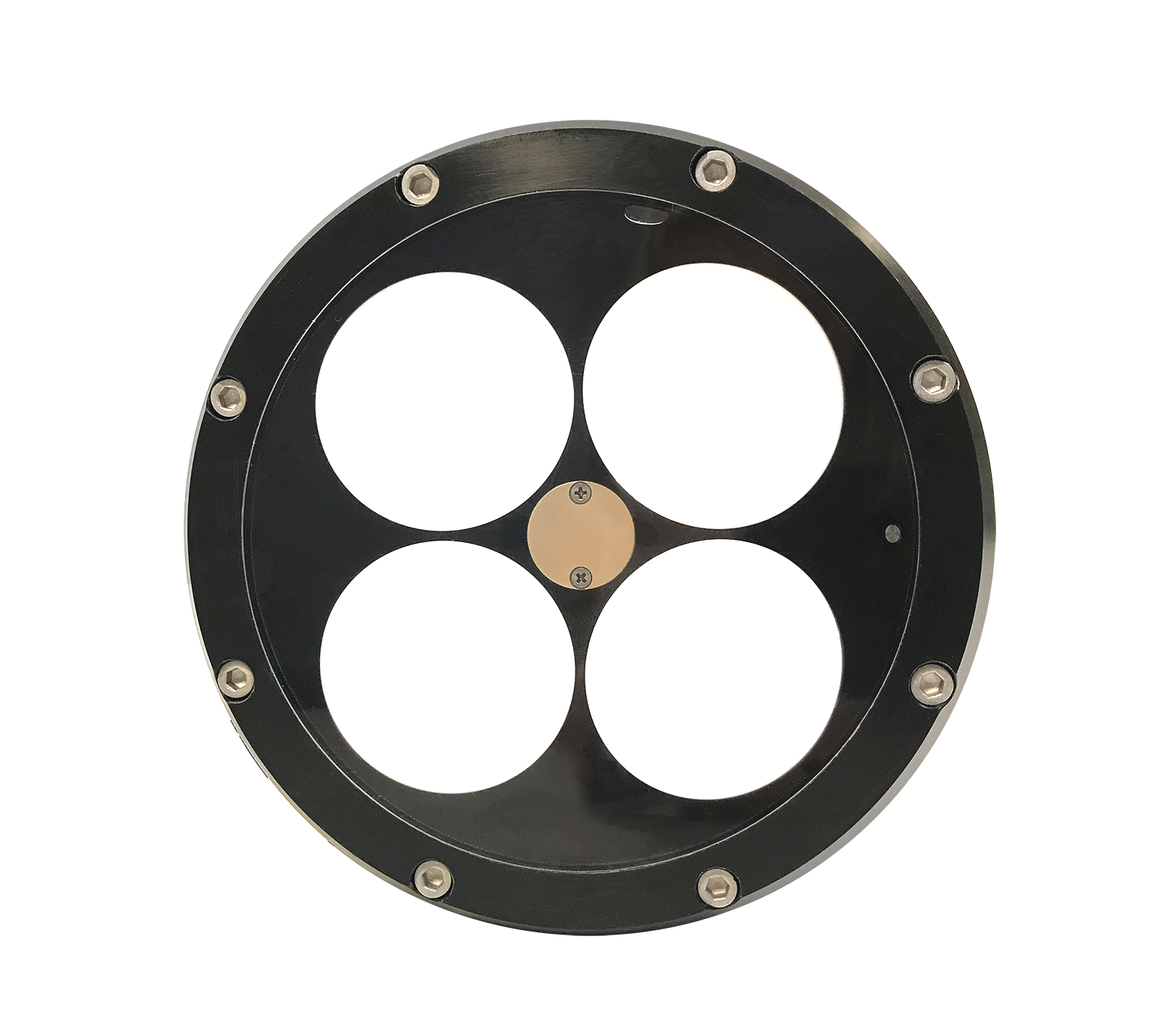

Nortek Speed Log - 500 kHz - additional image
Nortek Speed Log - 500 kHz - additional image
Nortek Speed Log - 500 kHz - additional image
Nortek Speed Log - 500 kHz - additional image
Nortek Speed Log - 500 kHz - additional image
    • Toggle all

    • Nortek Speed Log - 500 kHz

      Speed range -10.0 to 40.0 knots
      Speed directions Provides speed in both longitudinal andtransverse directions
      Water track (STW) from 3 meters
      Speed resolution 0.1 knots
      STW accuracy 0.3% of measured value +/- 0.3 cm/s
      Bottom track (SOG) < 200 meters
      Bottom track accuracy +/- 0.1% / +/- 0.1 cm/s
      Operating Temperature(HMI & IPC) -15 – 55 C
      Operating temperature 0-55°C
      Humidity Up to 95% (non-condensing)
      Storage temperature 1-55°C
      Distance run 0-999 999.9 NM
      Distance sailed Trip counter function & resettable
      Distance accuracy 1% of distance run or 0.1 NM
    • Interfaces

      Serial output 6 NMEA RS-422 (IEC 61162)
      Serial input 6 NMEA RS-422/485 (IEC 61162)
      Ethernet Option with Switch
      Digital input 4
      Digital output 4
      USB ports 4 x USB2.0 & 4 x USB3.0
      Supported NMEA sentences Output: VBW, VLW, MTW, PNRTQ, HBT, ALF, ALCInput: VTG, ZDA, THS (default)/ HDT, DDC, ACN,DBT, DPT, MWV
    • Mechanical

      Instrument materials POM with Titanium fasteners
      Instrument weight 7 kg
      Installation Instrument to be flush mounted with hull
      Sea valve material Ductile Iron (Body), Bronze (Seat)
      Sea valve weight 85 kg
      Bell housing material Steel EN10250,-2 / S355J2G3+N
      Bell housing weight 29 kg
      Interface cabinet material Coated steel RAL7035
      Interface cabinet weight 26 kg
      Main display 10” Multitouch panel
    • Instrument

      Operation frequency 500 kHz
      Temperature sensor range -4°C to 40°C
      Temperature accuracy 0.1 °C
      Pressure sensor Piezoresistive
      Compass Solid State magnetometer
      Tilt Solid State accelerometer
      AHRS Attitude sensor
      Power supply standard 100-240V AC 50/60 Hz
      Optional Instrumentpower supply 24V DC
      Power consumption 125 W
      Max. peak current 1.5 A
      IP rating IP 68
    • Interface Cabinet (IPC)

      Power supply standard 100-240V AC 50/60 Hz
      Power consumption 240 W
      Max current 10 A
      IP rating IPC and JB IP44
    • Specifications

      Classification DNV-GL TAP-4.7, IACS E10
      Class includes IMO, MSC334(90), IEC 61023, IEC 60945, IEC61162-1/2, IEC 62288, IEC 62923
    • Current profiling

      Minimum accuracy 0.3% of measured value ± 0.3 cm/s
      Velocity resolution 0.1 cm/s
      Maximum range 70 m
      ell size 1 m
