Vectrino Profiler

VELOCIMETER

Vectrino Profiler

Boundary velocity profile measurements over 30 mm with 1 mm vertical resolution

Highlights

  • Boundary profile measurements
  • 1 mm vertical resolution
  • 100 Hz maximum sampling rate

Overview

  • As the name suggests, this velocimeter is the profiling version of the Vectrino system. The Vectrino Profiler’s strength lies in collecting a small profile of up to 30 cells that are only 1 mm in height. It is globally used as the standard flow-measuring tool for hydraulic laboratory applications.

Applications

  • Projects highlighting the effect of vegetation on near-bed flows
  • Simulated bed changes in flumes
  • Measurements of high-resolution flow profiles in laboratory flumes
  • Turbulence measurements in laboratory flumes
Investigating transport and mixing at river confluences with Nortek's Vectrino
How University of Miami's hurricane research is helping save lives
Go behind the scenes at Nortek's HQ

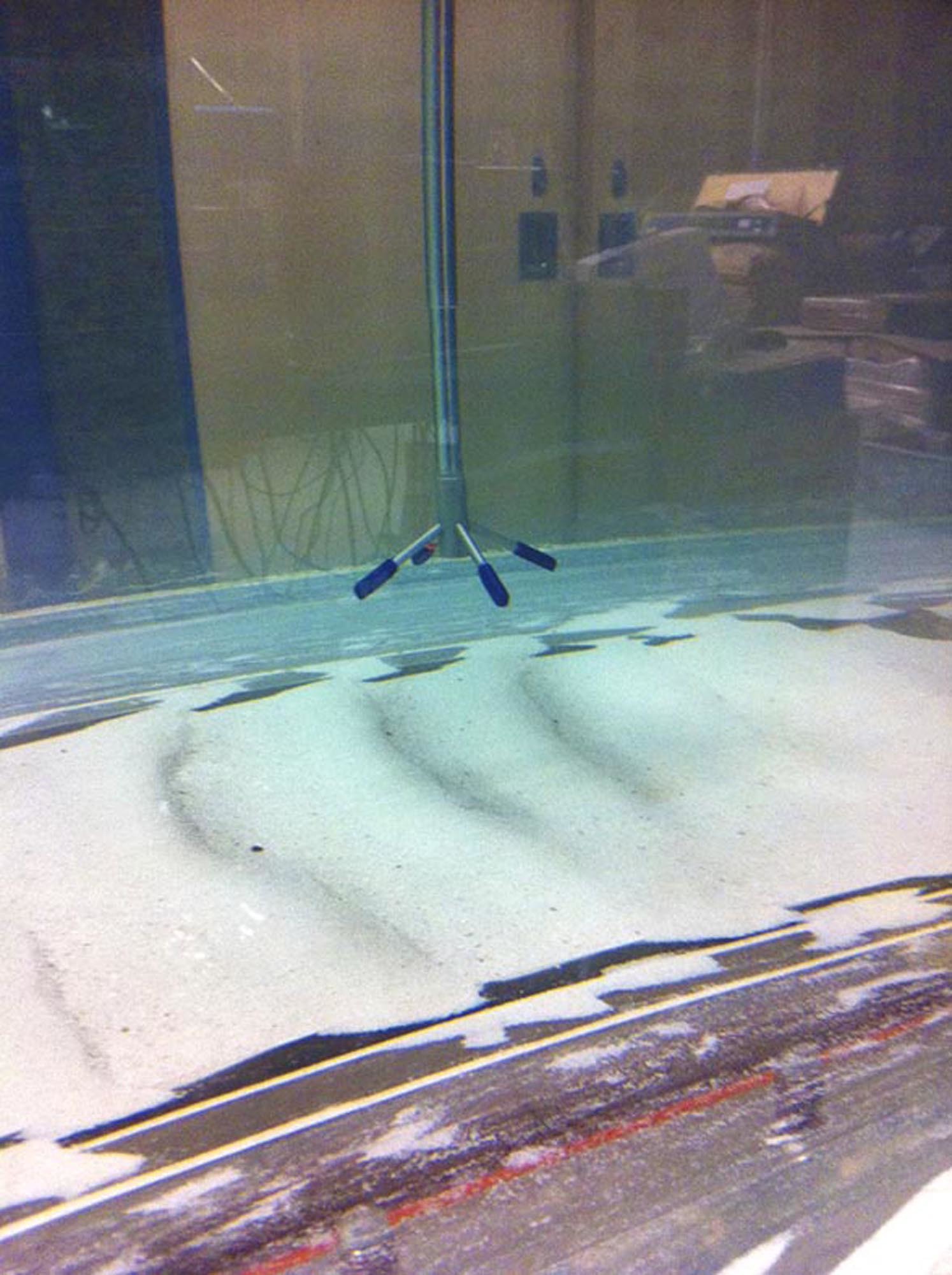

Vectrino Profiler - additional image

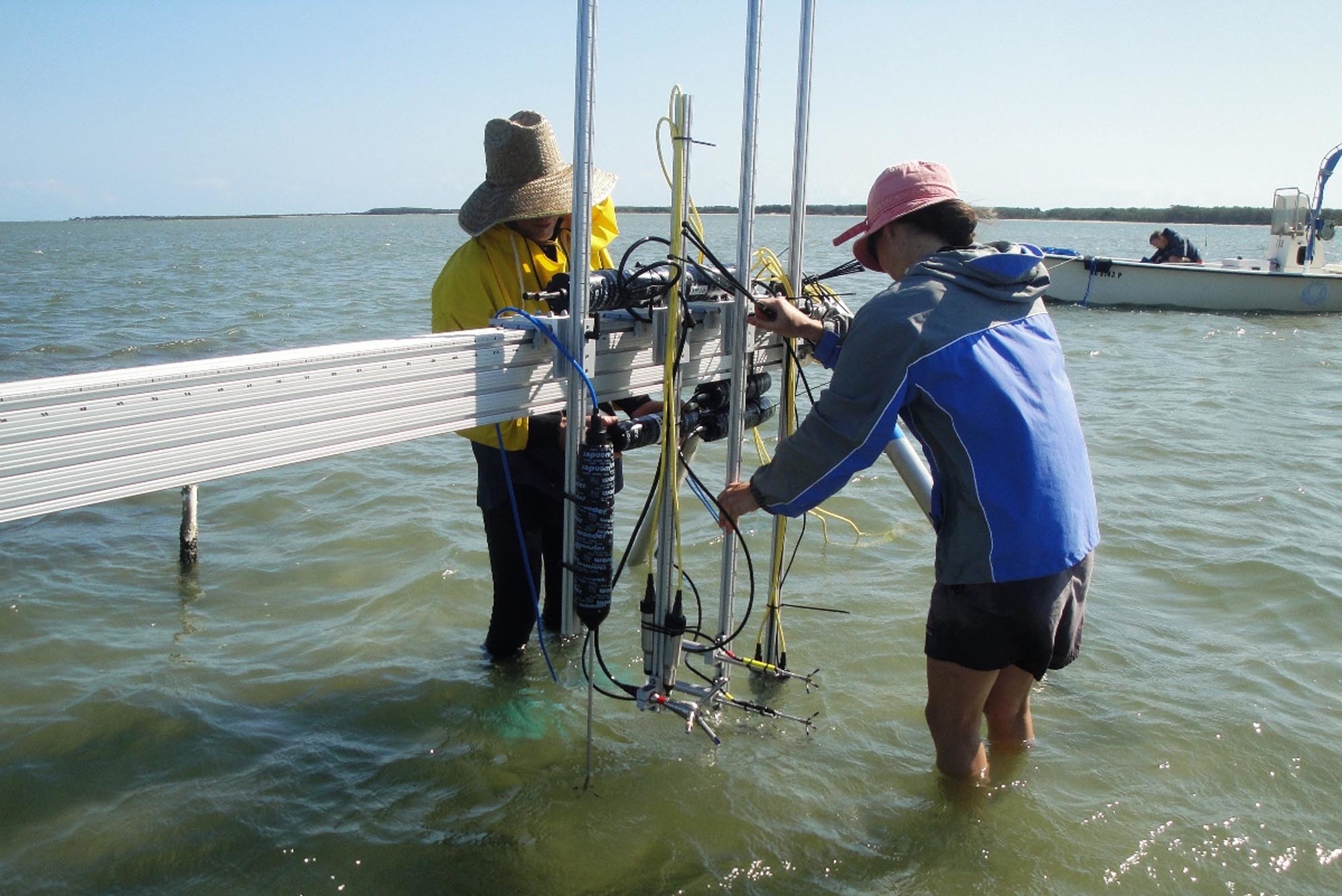

Vectrino Profiler - additional image
Vectrino Profiler - additional image
    • Toggle all

    • Water velocity measurements

      Maximum profiling range Up to 30 mm
      Distance from probe 40-70 mm from probe
      Sampling volume diameter 7 mm
      Sampling volume Height (user-selectable) N/A
      Cell size 1-4 mm (user-selectable)
      Velocity range Increments of 0.1 m/s, maximum 3.0 m/s
      Adaptive ping interval Once, or at 1 second to 1 hour interval
      Accuracy ±1% of measured value ±1 mm/s
      Velocity precision N/A
      Sampling rate (output) 1-100 Hz
      Internal sampling rate N/A
    • Distance measurements

      Minimum range 20 mm
      Maximum range Up to 2 meters depending on signal strength
      Cell size 1-4 mm (user-selectable)
      Accuracy 0.5 mm at 1 mm cell size
      Sampling rate 1-10 Hz
    • Echo intensity

      Acoustic frequency 10 MHz
      Resolution Linear & Log scale
      Dynamic range 60 dB
    • Sensors

      Temperature: Thermistor embedded in probe
      Temp. range -4 to +32 C
      Temp. accuracy/resolution 1 °C/0.1 °C
      Temp. time response 5 min
      Compass: N/A
      Accuracy/resolution N/A
      Tilt: N/A
      Accuracy/resolution N/A
      Maximum tilt N/A
      Up or Down N/A
      Pressure: N/A
      Standard range N/A
      Accuracy/precision N/A
    • Analog inputs

      No. of channels N/A
      Supply voltage to analog output devices N/A
    • Data recording

      Capacity (standard) N/A
      Data record N/A
    • Real-time clock

      Accuracy N/A
      Backup in absence of power N/A
    • Data communications

      I/O RS422
      Communication baud rate Up to 1.25 Mbps
      Recorder download baud rate N/A
      User control Handled via ”Vectrino Profiler” configuration and collection software.
      Analog outputs N/A
      Output range N/A
      Synchronization RS-485 sync in or sync out
    • Connectors

      Bulkhead (Impulse) MCBH-12-FS, bronze (Impulse)
      Cable PMCIL-12-MP – see also options below
    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®)
    • Multi unit operation

      Software Vectrino Profiler software allows multiple Vectrino Profiler to be run within a single instance of the program
      I/O RS 485–USB support for devices with 1, 2, 4,and 8 serial ports.
    • Power

      DC input 12-48 V DC
      Maximum peak current 2.5 A at 12 V DC
      Max. consumption 4 W at 100 Hz
      Typical consumption, 4 Hz N/A
      Sleep consumption N/A
      Transmit power N/A
    • Batteries

      Battery capacity N/A
      New battery voltage N/A
      Data collection capacity N/A
    • Environmental

      Operating temperature -4 to +32 °C
      Storage temperature -15 to +60 °C
      Shock and vibration IEC 721-3-4
      Depth rating 20 m
    • Materials

      Standard model POM housing. Stainless steel (316) probe and fasteners
    • Dimensions

      Maximum diameter 66 mm
      Maximum length 350 mm (housing only), 365 mm (fixed stem)
    • Weight

      Weight in air 1.2 kg
      Weight in water Neutral
    • Options

      4-beam down-looking probe. Fixed stem or 1 m flexible cable.
      10, 20, 30 or 50 m cable with Impulse underwater connector
      RS 232–USB converter (one-to-one, four-to-one or eight-to-one)

    • Toggle all

    • Technical drawings


    • Toggle all

    • Main product

      01

      Vectrino Profiler

    • Probe type / Head

      01

      4-beam down-looking probe

      02

      Probe mounted on 36-cm stem

      03

      Probe mounted on 1-m cable

    • Housing

      01

      Housing with 12-pin underwater connector

    • Cables

      01

      10-m cable with 12 pin underwater connector, including RS485 to USB converter

      02

      20-m cable with 12 pin underwater connector, including RS485 to USB converter

      03

      30-m cable with 12 pin underwater connector, including RS485 to USB converter

      04

      40-m cable with 12 pin underwater connector, including RS485 to USB converter

      05

      50-m cable with 12 pin underwater connector, including RS485 to USB converter

      06

      100-m cable with 12 pin underwater connector, including RS485 to USB converter
