Ocean currents

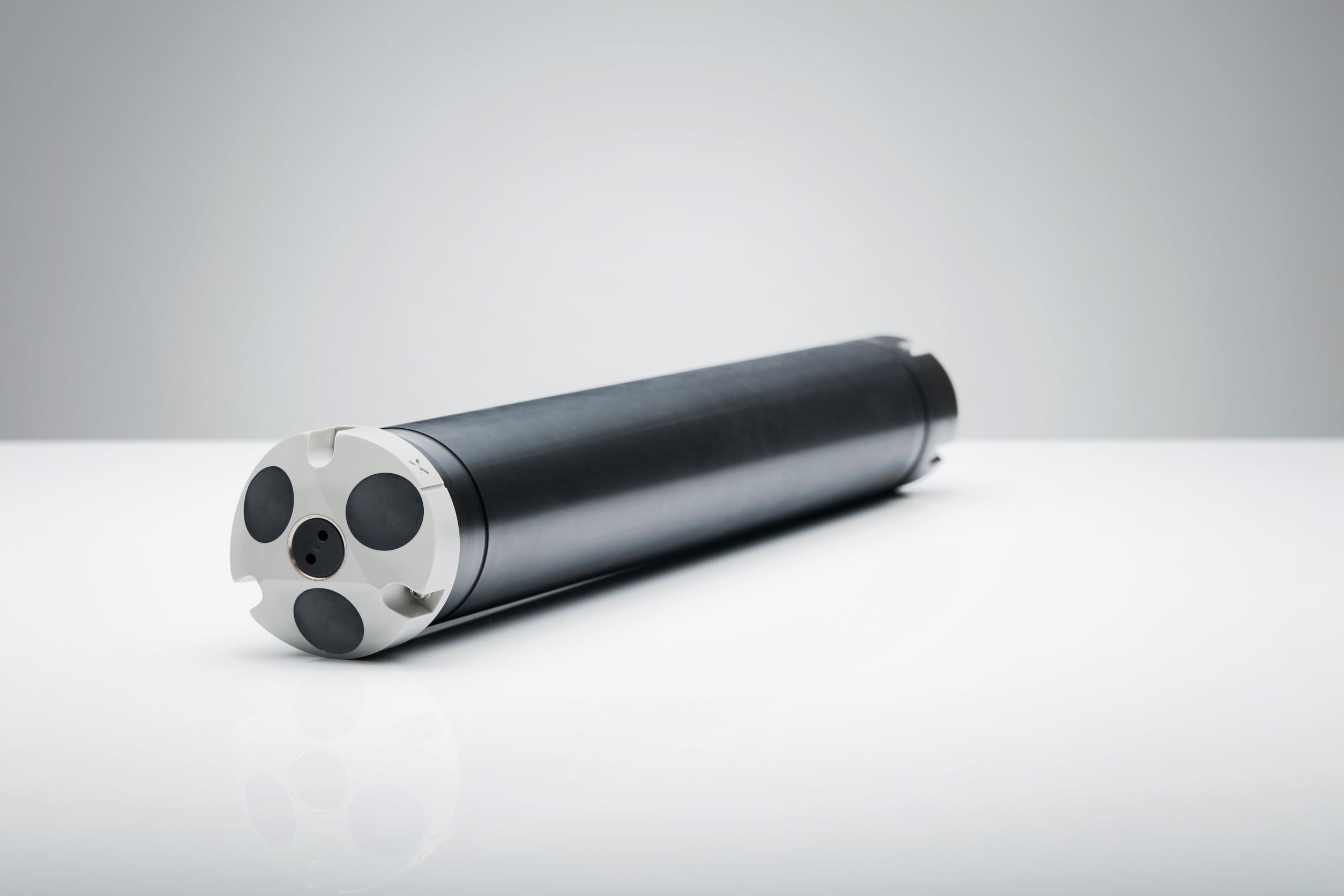

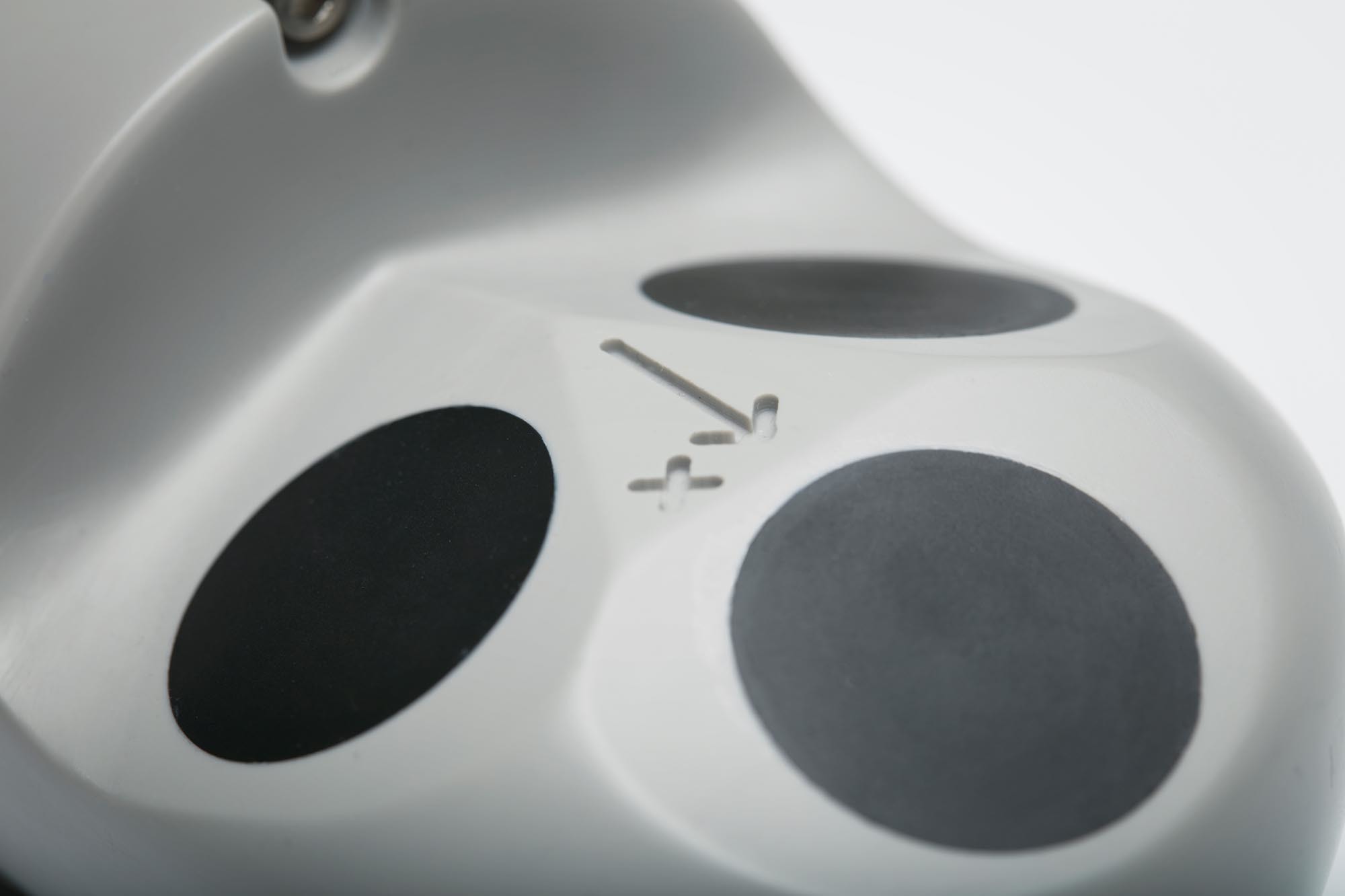

Aquadopp Profiler 1 MHz

Small and compact, with up to 25 m current profiling range; option for PUV wave measurements

概要

The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in four profiling range options, from < 1 m to > 85 m. Designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.

  • Currents
  • Waves

ハイライト

  • Up to 25 m current profiling range
  • Optional right-angle head
  • PUV wave measurements

使用法

  • Mean flow measurements with high focus on ease of use and simplicity
  • Measurements in flow regimes with strong variations in flow speeds
  • Projects with needs for both high-resolution and normal-range current measurements
  • Studies of deep-water currents
  • Studies of tidal currents
  • Measurements of combinations of waves and currents
  • Suitable for wave buoys

Setup

The 1MHz Aquadopp Profiler, designed for current measurements up to a 25m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements.

Deployment

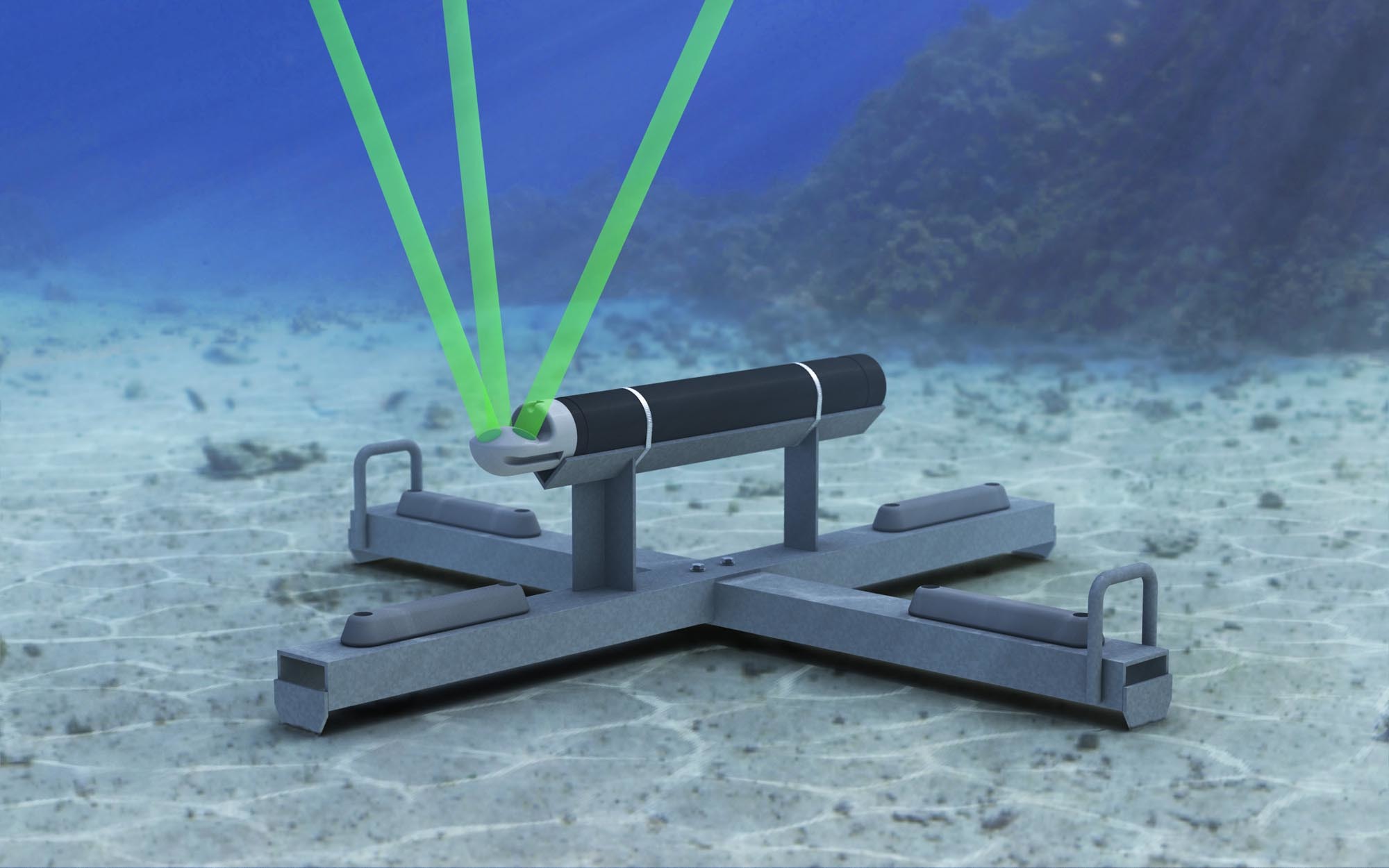

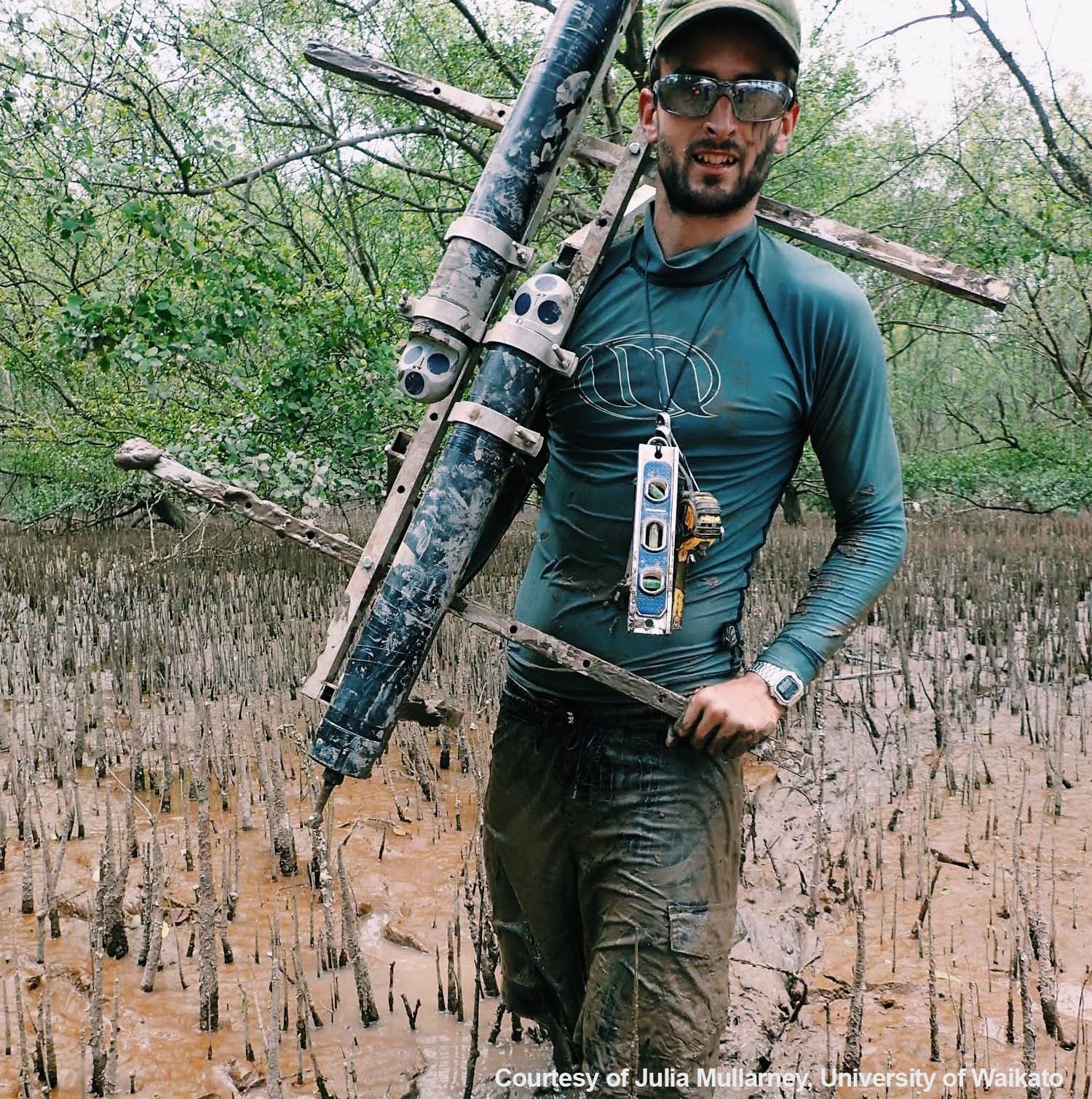

Compact size and an optional right-angle head allow for very near-bed deployments, maximizing water column coverage in shallow areas. Teams of all sizes can deploy an Aquadopp Profiler successfully.

Data

Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.

PDFをダウンロード

Water velocity measurements

Maximum profiling range

12-25 m

Cell size

0.3-4 m

Minimum blanking

0.20 m

Maximum number of cells

96

Measurement cell position

N/A

Default position (along beam)

N/A

Velocity range

±10 m/s

Accuracy

±1% of measured value ±0.5 cm/s

Velocity precision

Consult instrument software

Maximum sampling rate (output)

1 Hz

Internal sampling rate

7 Hz

Echo intensity (along slanted beams)

Sampling

Same as velocity

Resolution

0.45 dB

Dynamic range

90 dB

Transducer acoustic frequency

1 MHz

Number of beams

3

Beam width

3.4°

HR option

Maximum profiling range

6 m

Cell size

20-300 mm

Minimum blanking

0.2 m

Maximum number of cells

128

Range/Velocity limitations

Product of profiling range and velocity should not exceed 1.0 m2/s

Accuracy

±1% of measured value ±0.5 cm/s

Max. sampling rate

1 Hz (continuous mode), 8 Hz (burst mode)

Sensors

Temperature:

Thermistor embedded in head

Temp. range

-4 to +40 °C

Temp. accuracy/resolution

0.1 °C/0.01 °C

Temp. time response

10 min

Compass:

Magnetometer

Accuracy/resolution

2°/0.1° for tilt < 20°

Tilt:

Liquid level

Accuracy/resolution

0.2°/0.1°

Maximum tilt

30°

Up or Down

Automatic detect

Pressure:

Piezoresistive

Range

0-100 m (inquire for options)

Accuracy/precision

0.5% FS / 0.005% of full scale

Data recording

Capacity

9 MB, can add 4/16 GB

Data record

9*Ncells + 32 bytes

Diagnostics record

N/A

Wave record

Nsamples * 24 + 60 bytes

Mode

Stop when full (default) or wrap mode

Real-time clock

Accuracy

±1 min/year

Backup in absence of power

4 weeks

Data communications

I/O

RS-232 or RS-422

Communication baud rate

300-115200 Bd

Recorder download baud rate

600/1200 kBd for both RS-232 and RS-422

User control

Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binary or ASCII data output

Software

Functions

Deployment planning, instrument configuration, data retrieval and conversion (for Windows®)

Power

DC input

9-15 V DC

Maximum peak current

3 A

Avg. power consumption

0.05 W

Sleep current

< 100 μA

Transmit power

0.3-20 W, 3 adjustable levels

Batteries

Battery capacity

1) 50 Wh (alkaline or Li-ion), 2) 165 Wh (lithium), 3) Single or dual

New battery voltage

13.5 V DC (alkaline)

Environmental

Operating temperature

-5 to +40 °C

Storage temperature

-20 to +60 °C

Shock and vibration

IEC 721-3-7

EMC approval

IEC 61000

Depth rating

300 m (3000 m option)

Connectors

Bulkhead

MCBH-8-FS

Cable

PMCIL-8-MP on 10 m Polyurethane cable

Materials

Standard model

POM and polyurethane plastics with titanium fasteners

Dimensions

Maximum diameter

75 mm

Maximum length

~550 mm (single battery), +110 mm (double battery) depending on head configuration

Weight

Weight in air

2.2 kg

Weight in water

0.2 kg

Options

1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations

Online cable information

Cable length

0-10m; 10-50m; 50-500m

Power wire gauge

20AWG; 20AWG; 18AWG

Hardware

Standard; Standard; Long cable kit

Input voltage

9-24VDC; 24VDC +/-0,5; 48VDC +2/-5

Absolut maximum DC input

26 VDC; 26 VDC; 51 VDC

Communication

RS232/RS422/115200; RS232/RS422/115200; RS422/115200
