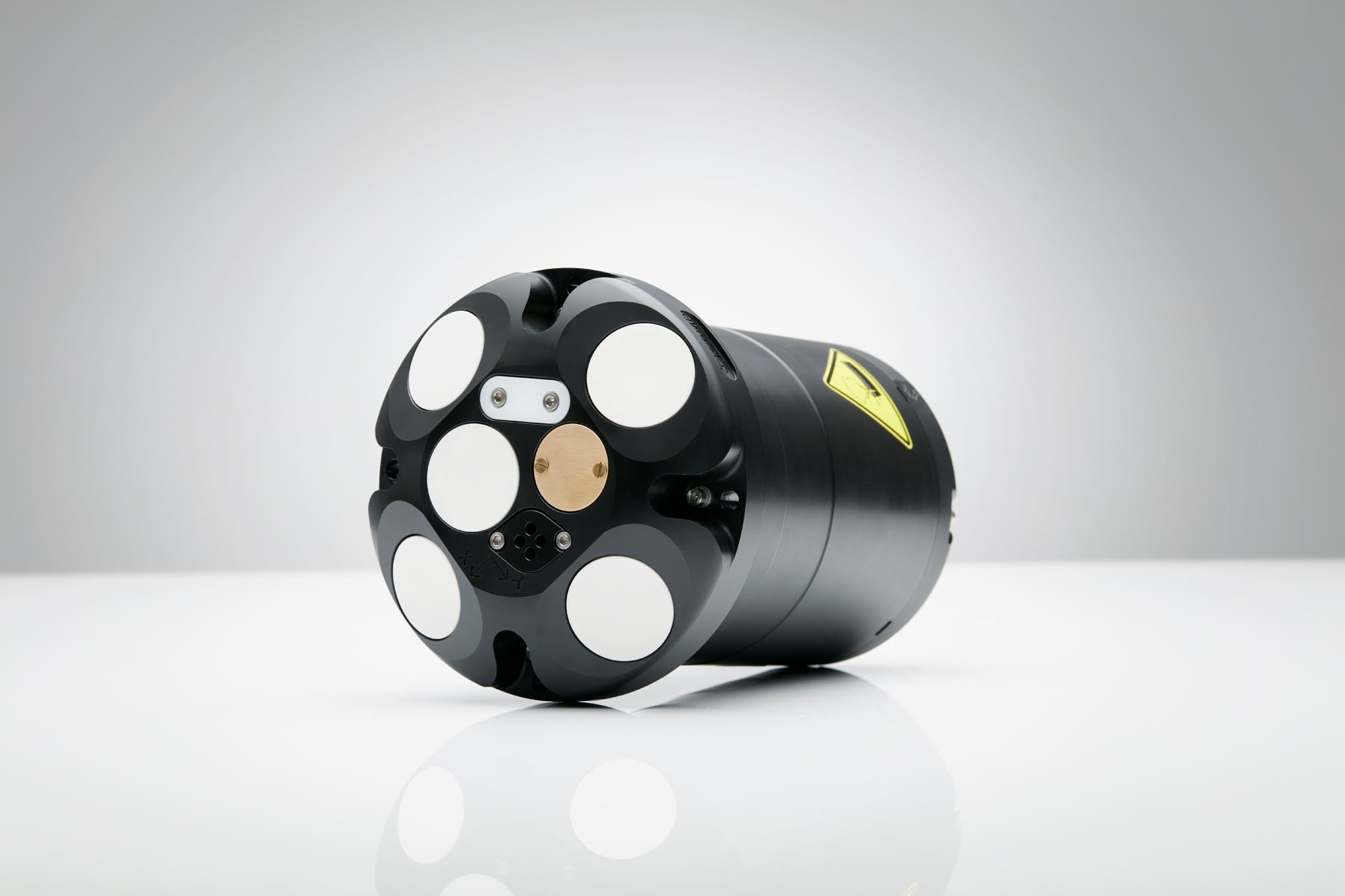

Signature1000 1 Mhz 1
Signature1000 1 Mhz 4
Signature1000 1 Mhz 2
Nortek Signature1000 1 Mhz Sideview Signature1000 1 Mhz 1 Signature1000 1 Mhz 4 Signature1000 1 Mhz 2

CURRENT PROFILER

Signature1000

High-performance mean currents and turbulence, wave height and direction

  • Five beams for mean currents and turbulence
  • Wave height and direction
  • Very small size and weight
Request a quote
Technical specification (PDF)
get help

Need Help? Get in touch.

Overview

  • The Signature1000 ADCP is the optimal tool for turbulence measurements. With a maximum sampling frequency of 16 Hz, it gives the scientific community an unprecedented opportunity to study a part of the turbulence spectrum that has never been accessible before. Vertical resolution current profiles of 2 cm over a range of up to 8 m further increase the Signature1000’s versatility, as does its ability to measure wave height and direction. The center beam also functions as a biological echosounder, enabling high-resolution measurements of biomass in the water column.

Highlights

  • Five beams for mean currents and turbulence
  • Wave height and direction
  • Very small size and weight

Applications

  • Turbulence studies
  • Sediment transport studies
  • 3D profiling using a wire walker
  • Surf zone dynamics
  • Studies of tidal currents
  • Fine-scale mixing studies
  • Vessel-mounted coastal surveying
  • Directional wave measurements
  • Coastal studies
  • Suitable for wave buoys

    • Toggle all

    • Water velocity measurements

      Maximum profiling range1) 25 m (burst mode), 30 m (average mode)
      Cell size 0.2-2 m
      Minimum blanking 0.1 m
      Maximum number of cells 256 (burst)/200 (average)
      Velocity range (along beam) User-selectable 2.5 or 5.0 m/s
      Minimum accuracy 0.3% of measured value ± 0.3 cm/s
      Velocity precision Broadband processing, consult instrument software
      Velocity resolution 0.1 cm/s
      Max sampling rate 16 Hz (8 Hz using 5 beams)

    • HR option (on 5th beam only)

      Velocity range 3 cm/s - 1.4 m/s
      Cell size 2-25 cm
      Profiling range 10 cm - 8 m
      Range velocity limitations Product of profiling range and velocity should not exceed 3.0 m2/s.

    • AD2CP measurement modes (US patent 8223588)

      Single Burst or average
      Concurrent Burst and average
      Alternate Single and/or concurrent

    • Echo intensity (along slanted beams)

      Sampling Same as velocity
      Resolution/ dynamic range 0.5 dB / 70 dB
      Transducer acoustic frequency 1 MHz
      Number of beams 5; 4 slanted at 25°, 1 vertical
      Beam width 2.9°

    • Echo sounder option

      Resolution 3 mm - 0.25 m
      Number of bins 10,000
      Transmit pulse length 16 μs - 0.5 ms
      Transmit pulse Monochromatic or pulse compressed (25% BW)
      Resolution / dynamic range 0.01 dB / 70 dB

    • Wave measurement option

      AST frequency 1 MHz
      AST max distance 34 m
      Maximum wave measurement depth 30 m
      Height range -15 to +15 m
      Accuracy/resolution (Hs) < 1% of measured value / 2 cm
      Accuracy/resolution (Dir) 2° / 0.1°
      Period range 0.5-50 s
      Cut-off period (Hs) 5 m depth; 0.6 sec, 20 m depth; 1.1 sec
      Cut-off period (dir) 5 m depth; 1.5 sec, 20 m depth; 3.1 sec
      Sampling rate (velocity and AST) 8 Hz

    • Ice measurement option

      Parameters N/A

    • Sensors

      Temperature: Thermistor in head (sampled at meas. rate)
      Temp. range -4 to +40 °C
      Temp. accuracy/resolution 0.1 °C/0.01 °C
      Temp. time response 2 min
      Compass: Solid State magnetometer (max 1 Hz samplerate)
      Accuracy/resolution 2° for tilt < 30°/0.01°
      Tilt: Solid State accelerometer (max 1 Hz sample rate)
      Accuracy/resolution 0.2° for tilt < 30°/0.01°
      Maximum tilt Full 3D
      Up or Down Automatic detect
      Pressure: Piezoresistive (sampled at meas. rate)
      Standard range 0-100 m (inquire for options)
      Accuracy/precision 0.1% FS / Better than 0.002% of full scale

    • AHRS option

      Accelerometer dynamic range ± 2 g
      Gyro dynamic range ± 250°/sec
      Magnetometer dynamic range ± 1.3 Gauss
      Pitch and roll range / resolution ± 90° (pitch) ± 180° (roll) /0.01°
      Pitch and roll accuracy ± 2° (dynamic)*, ± 0.5° (static, ±30°)
      Heading range / resolution 360°, all axis /0.01°
      Heading accuracy ± 3° (dynamic)4), ± 2° (static, tilt < 20°)
      Sampling rate Same as measurement rate (up to 16 Hz)
      * Dynamic specifications depends on the type of motion.

    • Data recording

      Capacity 16 GB, 64 GB or 128 GB (inquire for larger capacity)
      Data record Consult instrument software
      Mode Stop when full

    • Real-time clock

      Accuracy ± 1 min/year
      Clock retention in absence of external power 1 year. Rechargeable backup battery

    • Data communications

      Ethernet 10/100 Mbits Auto MDI-X, TCP/IP, UDP/IP, HTTP protocols, Fixed IP / DHCP client /Auto IP address assignment, UPnP and Nortek proprietary instrument, discovery over Ethernet
      Serial Configurable RS-232/RS-422 300-1250000 bps
      Recorder download baud rate 20 Mbit/s (Ethernet only) - 1 GB in 6 minutes
      Controller interface ASCII command interface over Telnet and serial

    • Connectors

      Depending on configuration MCBH6F (Ethernet), MCBH8F (serial), MCBH2F-G2 (pwr), optional Souriau M-series metal connector for online use (10M)

    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®)

    • Power

      DC input 12-48 V DC
      Maximum peak current 1.5 A
      Max. average consumption at 1 Hz 8 W at 1 Hz, Ethernet adds 0.75 W
      Typical average consumption 15 mW
      Sleep consumption 100 μA, power depending on supply voltage
      Transmit power per beam 0.3-30 W, adjustable levels
      Ping sequence Parallel

    • Batteries

      Internal 90 Wh alkaline
      Duration Depending on configuration, consult software

    • Environmental

      Operating temperature -4 to +40 °C
      Storage temperature -20 to +60 °C
      Vibration IEC60068-2-64
      EMC approval IEC/EN 61000-6-2, 61000-6-3
      Depth rating 300 m (for 4000 m version, contact Nortek for specifications)

    • Materials

      Standard model POM with titanium fasteners

    • Dimensions

      Maximum diameter 142 mm
      Maximum length with room for internal batteries 212 mm
      Maximum length without room for internal batteries 152 mm

    • Weight

      In air, no battery 2.21 kg (1.9 kg short)
      In water, no battery -0.09 kg (0.3 kg short)
      Battery 0.71 kg

    • Toggle all

    • Main product

      01

      Signature1000

    • Probe type / Head

      01

      5-beam head

    • Housing

      01

      Standard, with room for internal battery

      02

      Short, no room for battery

    • Memory

      01

      16 GB SD card data logger

      02

      64 GB SD card data logger

    • Pressure sensors

      01

      Pressure sensor, 0-10 m, 0,1%

      02

      Pressure sensor, 0-20 m, 0,1%

      03

      Pressure sensor, 0-30 m, 0,1%

      04

      Pressure sensor, 0-50 m, 0,1%

      05

      Pressure sensor, 0-100 m, 0,1%

      06

      Pressure sensor, 0-200m, 0,1%

      07

      Pressure sensor, 0-500m, 0,1%

      08

      Pressure sensor, 0-500m, 0,1% (Note: instrument depth rating is 300m)

    • Cables

      01

      10m Ethernet cable with MCIL6MP, Power/RJ45 at dry end

      02

      10-100m Ethernet cable (specify length in comments field) with MCIL6MP-PWR/RJ45

      03

      10m Serial RS232 cable, MCIL8MP-DB12

      04

      10m Serial RS232 cable, MCIL8MP-DB9 w/RS485 trigger

      05

      Serial RS422 cable >10m (specify length in comments field), MCIL8MP-DB9

      06

      Online cable, Souriau 10M open ended, (specify length in comments field)

      07

      Online cable, Souriau 10M PWR/RJ45, max 100m, (specify length in comments field)

    • Other

      01

      Compass and tilt sensor

      02

      AHRS

    • Toggle all

    • Nortek Discover

      Go to Software download

    • Ocean Contour

      Data visualization and processing software

      Go to Software download

    • Serial to USB driver

      Virtual COM port driver to allow Nortek's serial-to-USB converters to function.

      Go to Software download

    • Signature 1000

      Upgrade highly recommended. New features, fixes and functionality.

      Go to Software download

    • Signature Deployment (Installer file)

      Deployment software for all Signature series instruments as an installer file. You may download it now and install later if needed. Use the Help menu "Check for updates" function to get the latest firmware and software versions. Should a 32bit be required it may be downloaded here.

      Go to Software download

    • Signature Deployment (Microsoft Store version)

      Deployment software for all Signature series instruments available through Microsoft Store. Use the Help menu "Check for updates" function to get the latest firmware and software versions.

      Go to Software download

    • SignatureViewer

      Data viewer and post-processing software for Signature series instruments.

      Go to Software download
