Overview

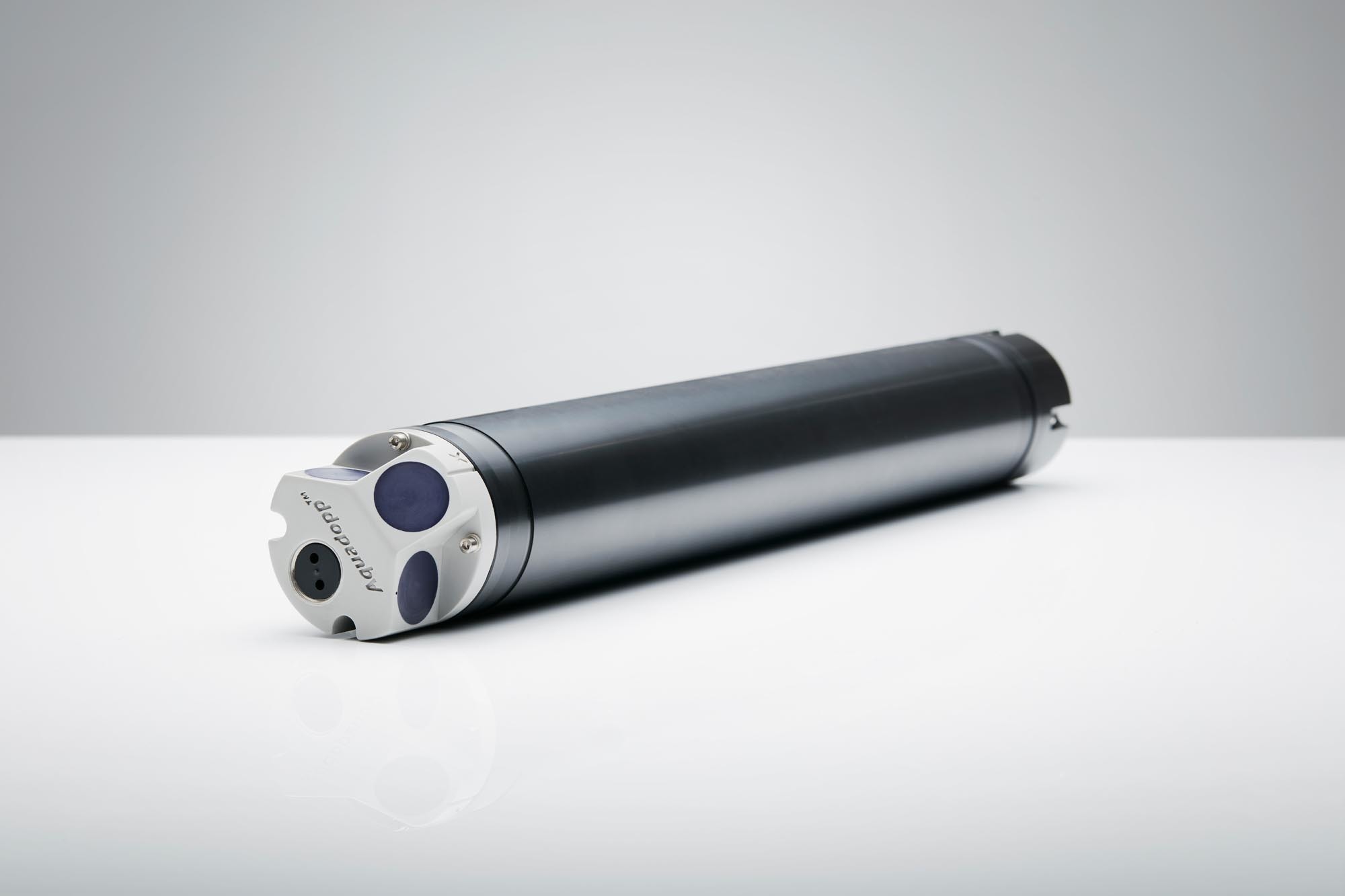

The Aquadopp 300 m is a compact, accurate and affordable single-point current meter for applications where a current profile is not needed. Designed for use in a number of deployment scenarios from mooring lines to bottom-mounted structures, it comes with PUV-based directional wave measurement capability as standard, making it the best value in the industry.
Raw magnetometer data can be stored for post calibration of compass when used without the inductive modem option.
- Currents
- Waves
Highlights
-
Single-point current meter
-
Perfect for mooring lines
-
PUV-based directional wave measurements
Usage
-
Attached to mooring lines
-
In conjunction with riser monitoring systems
-
Measurements of unaffected currents from physical structures
-
Shallow-water wave and current measurements
-
Alternative to mechanical current meters with errors due to fouling
-
Near-surface current measurements from surface buoys
-
Studies of tidal currents
-
Suitable for wave buoys
Setup
Nortek deployment software allows users to customize their 300m Aquadopp current meter deployment in a straightforward manner, providing guidance on deployment schemes, battery power and required internal memory.
Deployment
The Aquadopp is the ideal current meter for an ADCP mooring with a designated mooring-specific head design available, but it is also compatible with bottom- or buoy-mounted setups. Teams of all sizes can successfully deploy an Aquadopp thanks to its compact size and ability to run entirely on internal battery power.
Data
Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.
| Maximum profiling range | N/A |
| Cell size | 0.75 m |
| Minimum blanking | 0.35 m |
| Maximum number of cells | 1 |
| Measurement cell position | 0.35-5.0 m (user-selectable) |
| Default position (along beam) | 0.35-1.85 m |
| Velocity range | ±5 m/s |
| Accuracy | ±1% of measured value ±0.5 cm/s |
| Velocity precision | Consult instrument software |
| Maximum sampling rate (output) | 1 Hz, 4 Hz on request |
| Internal sampling rate | 23 Hz |
| Sampling | Same as velocity |
| Resolution | 0.45 dB |
| Dynamic range | 90 dB |
| Transducer acoustic frequency | 2 MHz |
| Number of beams | 3 |
| Beam width | 3.4° |
| Maximum profiling range | N/A |
| Cell size | N/A |
| Minimum blanking | N/A |
| Maximum number of cells | N/A |
| Range/Velocity limitations | N/A |
| Accuracy | N/A |
| Max. sampling rate | N/A |
| Cell zero acoustic frequency | N/A |
| Maximum profiling range | N/A |
| Number of beams | N/A |
| Temperature: | Thermistor embedded in head |
| Temp. range | -4 to +40 °C |
| Temp. accuracy/resolution | 0.1 °C/0.01 °C |
| Temp. time response | 10 min |
| Compass: | Magnetometer |
| Accuracy/resolution | 2°/0.1° for tilt < 20° |
| Tilt: | Liquid level |
| Accuracy/resolution | 0.2°/0.1° |
| Maximum tilt | 30° |
| Up or Down | Automatic detect |
| Pressure: | Piezoresistive |
| Range | 300 m |
| Accuracy/precision | 0.5% FS / 0.005% of full scale |
| No. of channels | 2 |
| Supply voltage to analog outputdevices | Three options selectable through firmwarecommands: 1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA |
| Voltage input | 0-5 V |
| Resolution | 16-bit A/D |
| Capacity | 9 MB, can add 4/16 GB |
| Data record | 40 bytes |
| Diagnostics record | 40 bytes |
| Wave record | 40 bytes |
| Mode | Stop when full (default) or wrap mode |
| Accuracy | ±1 min/year |
| Backup in absence of power | 4 weeks |
| I/O | RS-232 or RS-422 |
| Communication baud rate | 300-115,200 Bd |
| Recorder download baud rate | 600/1200 kBd for both RS-232 and RS-422 |
| User control | Handled via "Aquadopp" software, ActiveX®function calls, or direct commands withbinary or ASCII data output |
| Bulkhead | MCBH-8-FS |
| Cable | PMCIL-8-MP on 10 m polyurethane cable |
| Functions | Deployment planning, instrument configuration,data retrieval and conversion (for Windows®) |
| DC input | 9-15 V DC |
| Maximum peak current | 3 A |
| Avg. power consumption | 0.01 W |
| Sleep current | < 100 μA |
| Transmit power | 0.3-20 W, 3 adjustable levels |
| Battery capacity | 1) 50 Wh (alkaline or Li-ion), 2) 165 Wh (lithium), 3) Single or dual |
| New battery voltage | 13.5 V DC (alkaline) |
| Operating temperature | -5 to +40 °C |
| Storage temperature | -20 to +60 °C |
| Shock and vibration | IEC 721-3-2 |
| EMC approval | IEC 61000 |
| Depth rating | 300 m |
| Standard model | POM housing |
| Maximum diameter | 75 mm |
| Maximum length | ~500 mm (single battery) or +110 mm (double battery) depending on head configuration |
| Weight in air | 2.3 kg |
| Weight in water | Neutral |
| 1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations, 3) Inductive modem |
Aquadopp, 300 m depth rating

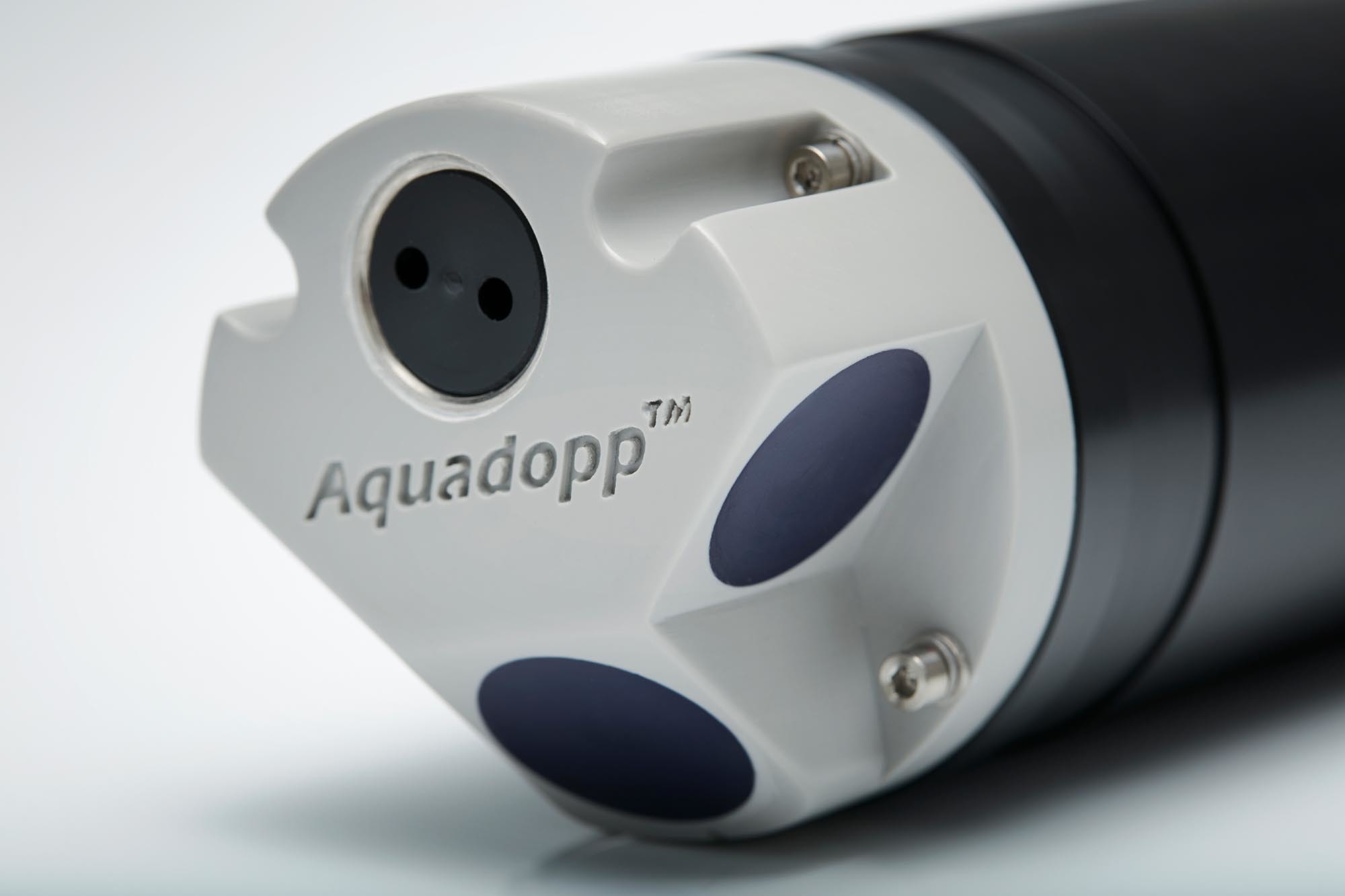

Aquadopp mooring type transducer head (AQD)
Asymmetric sensor head (AQA)
Symmetric sensor head (AQS)
Hockey Puck sensor head (APK)
3-beam side-looking puck head (PCK)
Inductive modem head (ALD)
Custom transducer design
Standard housing for two batteries or one 100Wh package
Short housing for one battery
Extra short housing for no batteries
9 MB of memory on motherboard (M8)
4 GB SD card data logger
Pressure sensor, 0-10 m
Pressure sensor, 0-20 m
Pressure sensor, 0-30 m
Pressure sensor, 0-50 m
Pressure sensor, 0-100 m
Pressure sensor, 0-200m
10m RS232 polyurethane cable with 8-pin inline connector and USB converter
20m RS232 polyurethane cable with 8-pin inline connector and USB converte
30m RS232 polyurethane cable with 8-pin inline connector and USB converter
40m RS232 polyurethane cable with 8-pin inline connector and USB converter
50m RS232 polyurethane cable with 8-pin inline connector and USB converter
10m RS422 polyurethane cable with 8-pin inline connector and USB converter
20m RS422 polyurethane cable with 8-pin inline connector and USB converter
30m RS422 polyurethane cable with 8-pin inline connector and USB converter
40m RS422 polyurethane cable with 8-pin inline connector and USB converter
50m RS422 polyurethane cable with 8-pin inline connector and USB converter
Compass and tilt sensor
Without compass and tilt sensor
Cable for external battery canister to 8-pin inline connector
Cable RS232 polyurethane with 8-pin inline connector and USB converter
Cable RS422 polyurethane with 8-pin inline connector and USB converter
Battery, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery canister, plastic with 4*18 AA pack w/cable 8-pin inline (300m rating)
Battery pack, 5-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Set of Anti-fouling patches for Aquadopp
This set is suitable for Aquadopp 300 m, Aquadopp Profiler 1MHz and Aquadopp Profiler 2MHz
