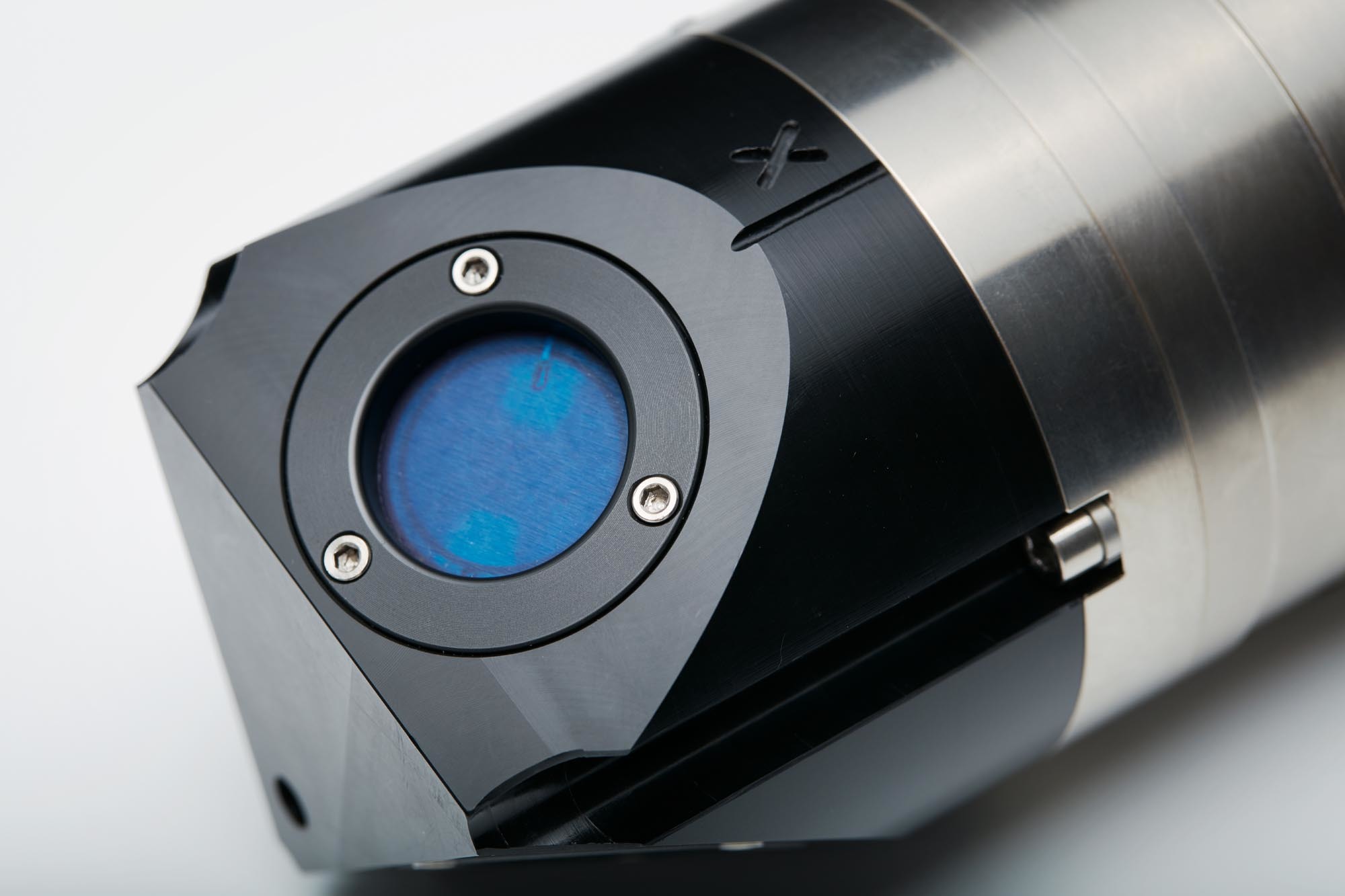

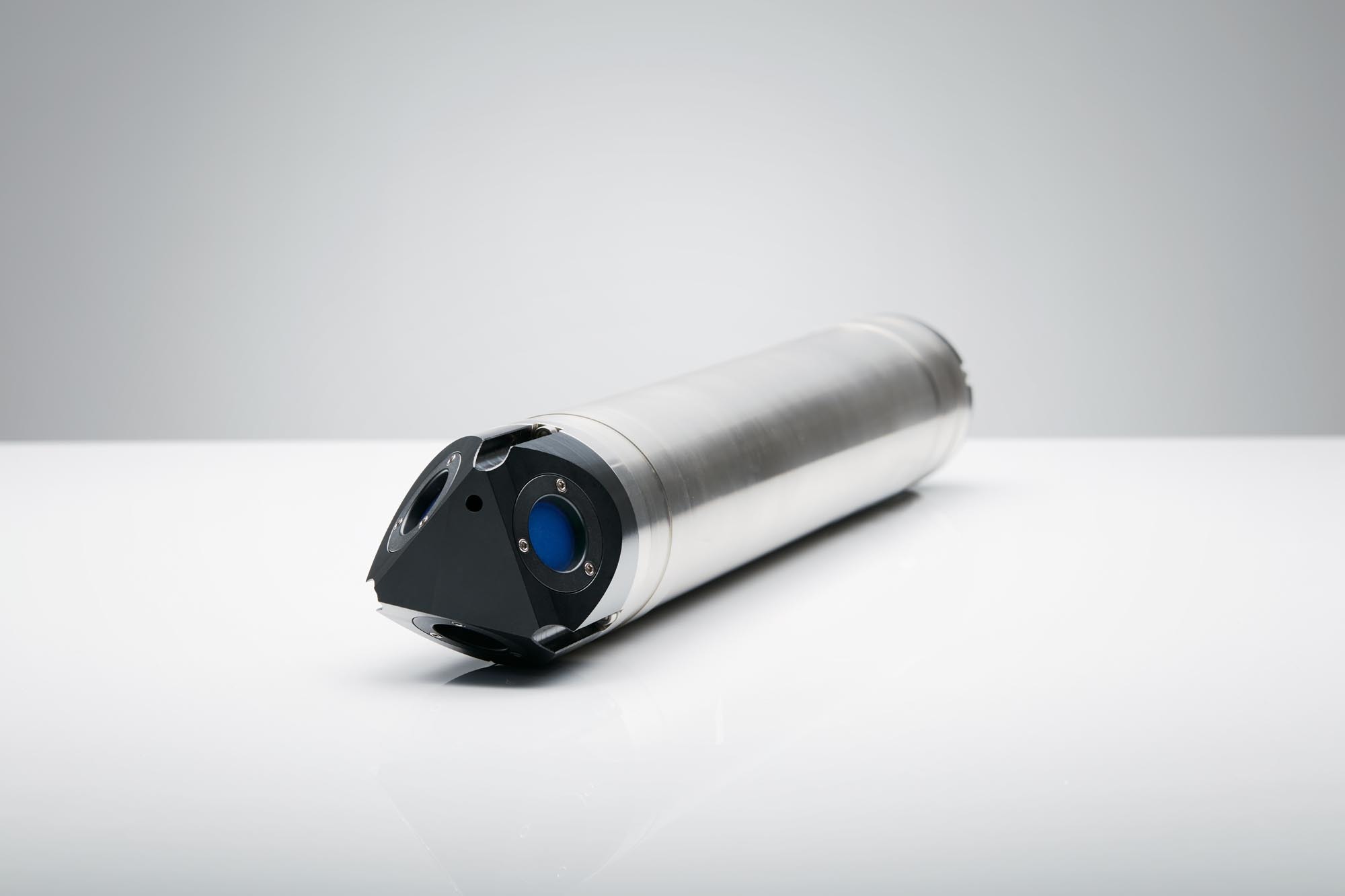

Overview
With all the features and capabilities of the standard Aquadopp, the deepwater Aquadopp 6000 m current meter has been used and proven by oceanographers around the world for almost 20 years. Thanks to innovative data diagnostic features for challenging environments, it provides exceptionally high-quality 3D currents in a form factor that is easy to install in any type of mooring line configuration, or simply attached to a bottom or surface platform.
Raw magnetometer data can be stored for post calibration of compass when used without the inductive modem option.
- Currents
Highlights
-
Full ocean-depth single-point current meter
-
Titanium housing
-
Diagnostics mode for mooring performance evaluation
Usage
-
Studies of deep-water currents
-
Studies of tidal currents
-
Attached to mooring lines
-
Measurements of unaffected currents from physical structures
-
In conjunction with riser monitoring systems
-
Alternative to conventional current meters with errors due to fouling
-
Combination of currents and high-accuracy CTD data
-
Near-bed current measurements from landers
-
Deep ocean mining support
Setup
Nortek deployment software allows users to customize their 600m Aquadopp deployment in a straightforward manner, providing guidance on deployment schemes, battery power and required internal memory.
Deployment
The 6000m Aquadopp is the ideal current meter for deep-water moorings with a designated mooring-specific head design available. The instrument is capable of very long-term, unsupported deployments thanks to its low power consumption, internal data collection and ability to run entirely on internal battery power.
Data
Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.
| Maximum profiling range | N/A |
| Cell size | 0.75 m |
| Minimum blanking | 0.50 m |
| Maximum number of cells | 1 |
| Measurement cell position | 0.5-5.0 m (user-selectable) |
| Default position (along beam) | 0.50-2.0 m |
| Velocity range | ±5 m/s |
| Accuracy | ±1% of measured value ±0.5 cm/s |
| Velocity precision | Consult instrument software |
| Maximum sampling rate(output) | 1 Hz |
| Internal sampling rate | 23 Hz |
| Sampling | Same as velocity |
| Resolution | 0.45 dB |
| Dynamic range | 90 dB |
| Transducer acoustic frequency | 2 MHz |
| Number of beams | 3 |
| Beam width | 3.4° |
| Maximum profiling range | N/A |
| Cell size | N/A |
| Minimum blanking | N/A |
| Maximum number of cells | N/A |
| Range/Velocity limitations | N/A |
| Accuracy | N/A |
| Max. sampling rate | N/A |
| Cell zero acoustic frequency | N/A |
| Maximum profiling range | N/A |
| Number of beams | N/A |
| Temperature: | Thermistor embedded in head |
| Temp. range | -4 to +40 °C |
| Temp. accuracy/resolution | 0.1 °C/0.01 °C |
| Temp. time response | 10 min |
| Compass: | Magnetometer |
| Accuracy/resolution | 2°/0.1° for tilt < 20° |
| Tilt: | Liquid level |
| Accuracy/resolution | 0.2°/0.1° |
| Maximum tilt | 30° |
| Up or Down | Automatic detect |
| Pressure: | Piezoresistive |
| Range | 6000 m |
| Accuracy/precision | 0.5% FS / 0.005% of full scale |
| No. of channels | 2 |
| Supply voltage to analog output devices | Three options selectable through firmwarecommands: 1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA |
| Voltage input | 0-5 V |
| Resolution | 16 bit A/D |
| Capacity | 9 MB, can add 4/16 GB |
| Data record | 40 bytes |
| Diagnostics record | 40 bytes |
| Wave record | N/A |
| Mode | Stop when full (default) or wrap mode |
| Accuracy | ±1 min/year |
| Backup in absence of power | 4 weeks |
| I/O | RS-232 or RS-422 |
| Communication baud rate | 300-115200 Bd |
| Recorder download baud rate | 600/1200 kBd for both RS-232 and RS-422 |
| User control | Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binaryor ASCII data output |
| Bulkhead | MCBH-8-FS titanium |
| Cable | PMCIL-8-MP on 10 m polyurethane cable |
| Functions | Deployment planning, instrument configuration,data retrieval and conversion (for Windows®) |
| DC input | 9-15 V DC |
| Maximum peak current | 3 A |
| Avg. power consumption | 0.015 W |
| Sleep current | < 100 μA |
| Transmit power | 20 W |
| Battery capacity | 50 Wh (alkaline or Li-ion), 165 Wh (lithium), Single or dual |
| New battery voltage | 13.5 V DC (alkaline) |
| Operating temperature | -5 to +40 °C |
| Storage temperature | -20 to +60 °C |
| Shock and vibration | IEC 721-3-4 |
| EMC approval | IEC 61000 |
| Depth rating | 6000 m |
| Standard model | Titanium and POM |
| Maximum diameter | 84 mm |
| Maximum length | ~500 mm (single battery), +110 mm (double battery) depending on head configuration |
| Weight in air | 7.6 kg |
| Weight in water | 4.8 kg |
| 1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations, 3) Inductive modem |
Aquadopp, 6000 m depth rating
Symmetrical head (A6L)
Side-looking head, vertical mounting (6KL)
Side-looking head, horizontal mounting (6HL)
6000-m depth rating with standard housing for two batteries or one 100 Wh package
6000-m depth rating with short housing for one battery
9 MB of memory on motherboard (M8)
4 GB SD card data logger
Pressure sensor 0-6000 m (6000-m system)
10m RS232 polyurethane cable with 8-pin inline connector and USB converter
20m RS232 polyurethane cable with 8-pin inline connector and USB converter
30m RS232 polyurethane cable with 8-pin inline connector and USB converter
40m RS232 polyurethane cable with 8-pin inline connector and USB converter
50m RS232 polyurethane cable with 8-pin inline connector and USB converter
10m RS422 polyurethane cable with 8-pin inline connector and USB converter
20m RS422 polyurethane cable with 8-pin inline connector and USB converter
30m RS422 polyurethane cable with 8-pin inline connector and USB converter
40m RS422 polyurethane cable with 8-pin inline connector and USB converter
50m RS422 polyurethane cable with 8-pin inline connector and USB converter
Compass and tilt sensor
Without compass and tilt sensor
Cable for external battery canister to 8-pin inline connector
Cable RS232 polyurethane with 8-pin inline connector and USB converter
Cable RS422 polyurethane with 8-pin inline connector and USB converter
Battery, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
