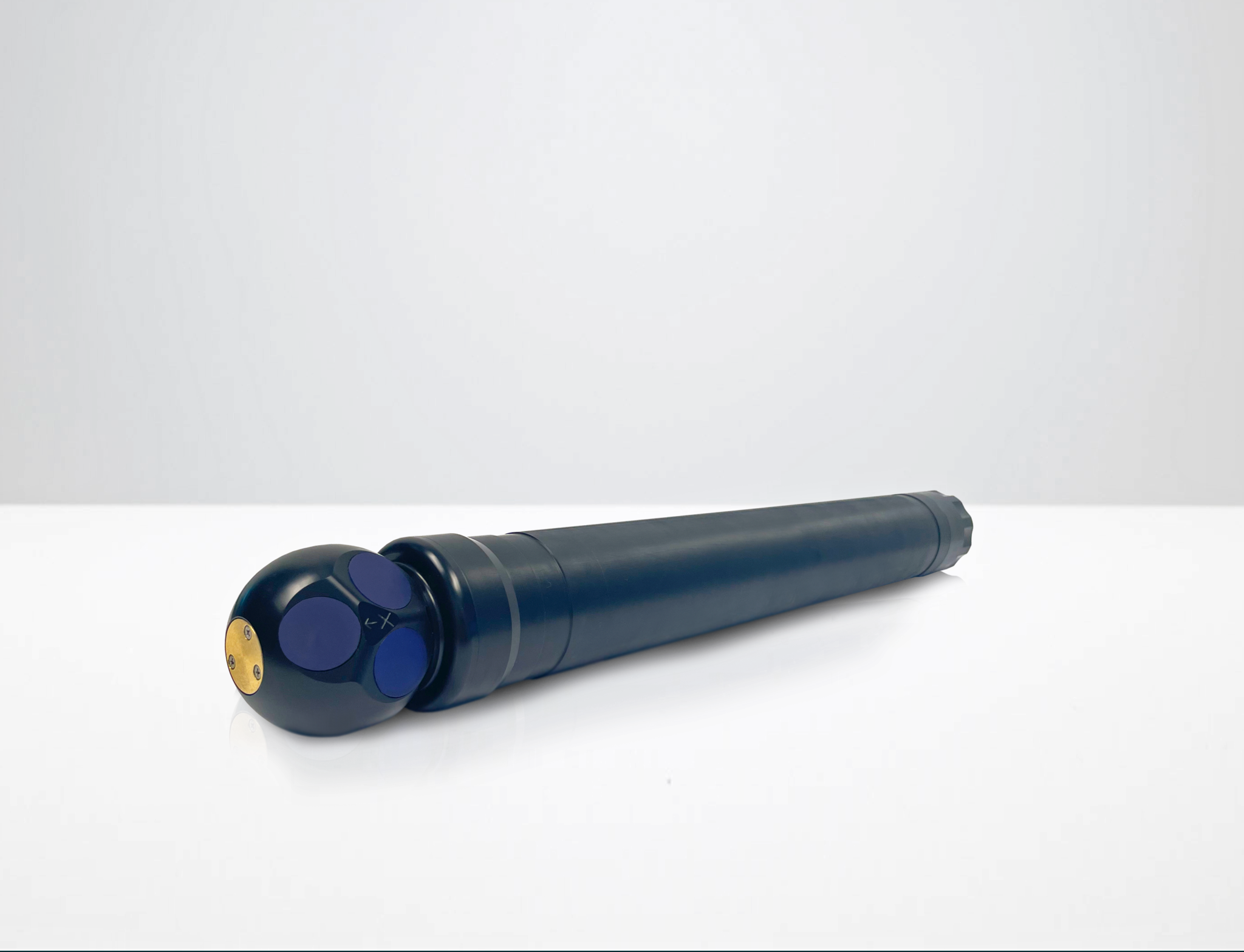

Nortek Aquadopp Profiler 2 M Hz S2 SP Sideview
Nortek 30097906539 2

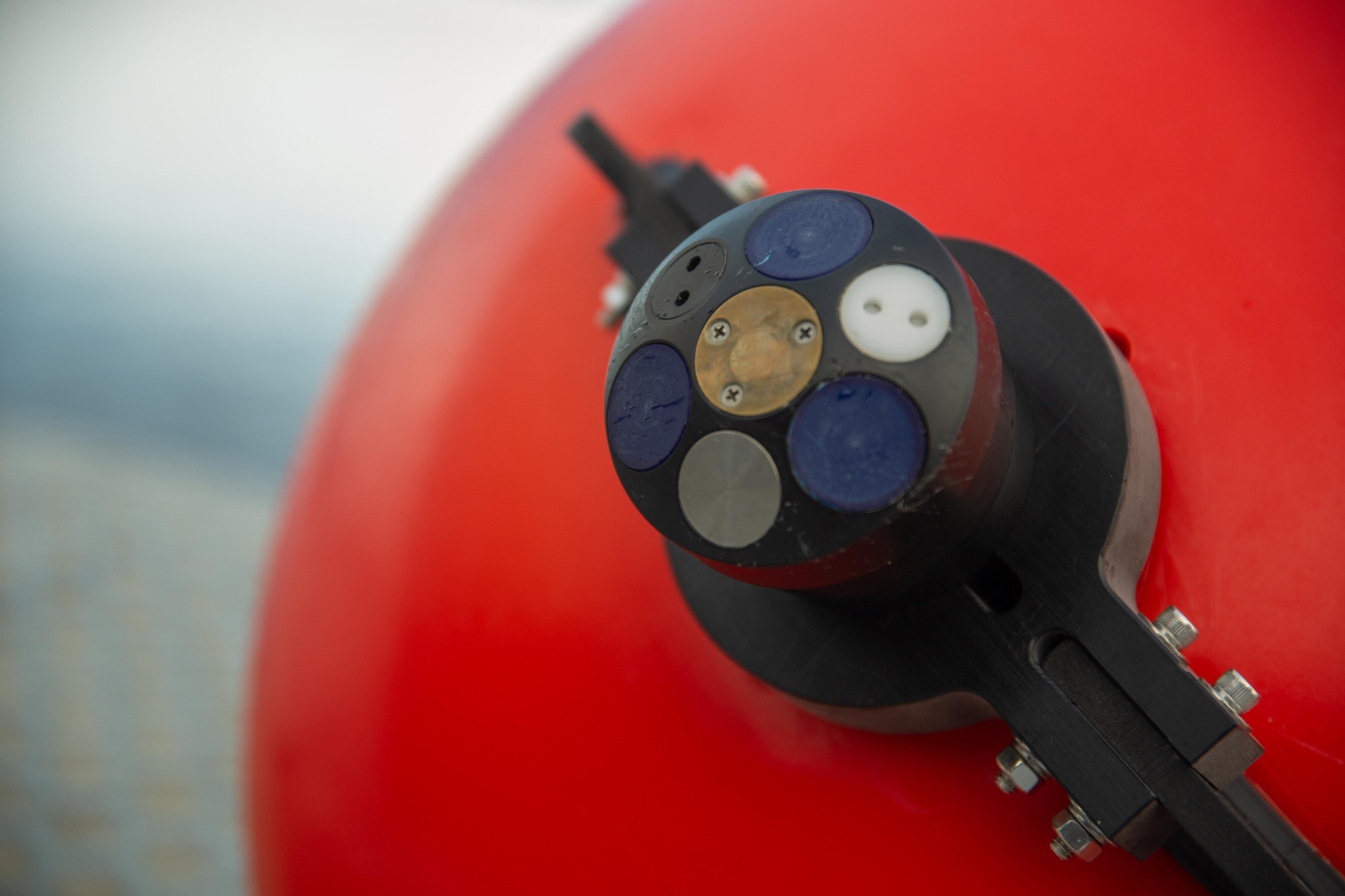

Aquadopp profiler 1

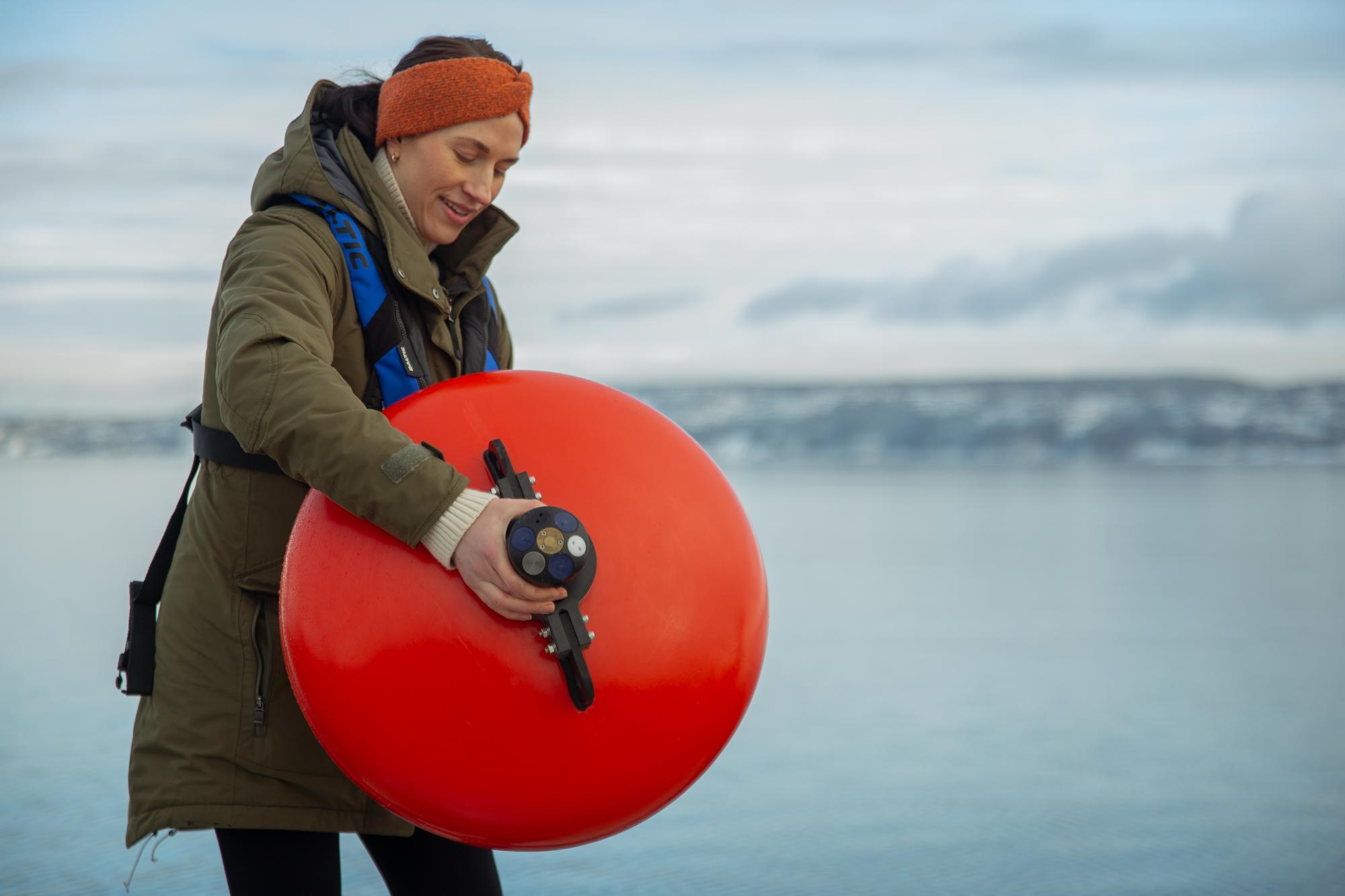

Aquapro S2 VP
Nortek Aquadopp Profiler 2 M Hz S2 SP Sideview
Nortek 30097906539 2
Aquadopp profiler 1
Aquapro S2 VP

Oceanography

Aquadopp Profiler 2 MHz

500 m, Generation 2

Small and compact, short-range current profiling; option for PUV wave measurements

  • Up to 10 m current profiling range
  • Optional right-angle head for measurements close to boundaries or in shallow water
  • Pressure-based (PUV) directional wave measurements

Overview

The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in three profiling range options, from < 1 m to > 85 m. The 2 MHz version has a current profiling range of up to 10 m. Designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.

The upgraded Aquadopp Profiler design offers improved noise immunity as well as 6% broadband measurements and “hibernation mode” between measurements, enabling precise data collection with lower power consumption. Increased internal battery storage extends potential deployment time.

See the details of the Generation 2 Aquadopp updates in the release notes here.
Download our guide to Aquadopp ADCPs here.
  • Currents
  • Waves

Highlights

  • Up to 10 m current profiling range
  • Optional right-angle head for measurements close to boundaries or in shallow water
  • Pressure-based (PUV) directional wave measurements
  • LED blinks when pinging for peace of mind during deployment

Usage

  • Near-bed current profiles with fine vertical resolution
  • Mean flow measurements with a focus on ease of use and simplicity
  • Measurements in areas with strong variations in flow speeds
  • Projects with needs for both high-resolution and normal-range current measurements with optional HR
  • Measurements of waves and currents from a single instrument
  • Studies of tidal currents

Setup

The 2MHz Aquadopp Profiler, designed for current measurements in shallow water (offering a 10m profiling range), is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements.

Deployment

Compact size and an optional right-angle head allow for very near-bed deployments, maximizing water column coverage in shallow areas. Teams of all sizes can deploy an Aquadopp Profiler successfully.

Data

Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.

Download PDF

Water velocity measurements

Nominal profiling range*

10 m

Cell size

0.1-2 m

Maximum number of cells

200

Minimum blanking

0.2 m

Velocity range (along beam)

User-selectable 1.0 to 5.0 m/s

Accuracy

±1% of measured value ±0.5 cm/s

Horizontal velocity precision (consult instrument SW)

Typ. 1 cm/s

Maximum sampling rate (output)

1 Hz

Wave measurements

PUV (optional)

*Dependent on measurement conditions

Echo intensity

Sampling

Same as velocity

Resolution

0.5 dB

Dynamic range

70 dB

Transducer acoustic frequency

2 MHz

Number of beams

3 (see GA drawings for angles)

Beam width

0.85° (1.7° total)

HR option

Maximum profiling range

4.0 m

Cell size

0.01-0.13 m

Minimum blanking

0.1 m

Maximum number of cells

256

Velocity range

3 cm/s - 0.65 m/s

Range velocity limitations

Product of profiling range and velocity should not exceed 0.12 m2/s

Accuracy

±1% of measured value ±0.5 cm/s

Max. sampling rate

8 Hz

Notes

Extended Velocity Range (EVR) option not available.

Sensors

Temperature:

Temp. range

-4 to +40 °C

Temp. accuracy/resolution

0.1 °C/0.01 °C

Temp. time response

<1 min

Compass:

Solid state magnetometer

Accuracy/resolution

<2° for tilt < 30° /0.01°

Tilt:

Solid state accelerometer

Accuracy/resolution

0.2° for tilt <30° / 0.01°

Maximum tilt

Full 3D orientation sensing. Recommended instrument orientation and allowable tilt depend on the measurement application.

Up or Down

Automatic detect

Pressure:

Piezoresistive

Range

30 m / 100 m / 500 m

Accuracy/precision

0.5% FS / 0.005% of full scale

Data recording

Capacity

16 GB

Real-time clock

Accuracy

±1 min/year

Backup in absence of power

4 weeks

Data communications

I/O

RS-422 (inquire for RS-232)

Communication baud rate

9600 Baud - 1.2 Mbaud (default 115200 Baud)

User control

Nortek Deployment Software or direct ASCII commands, with binary or ASCII data output

Software

Operating system

Cross platform

Functions

Deployment planning, instrument configuration, data retrieval and conversion. Online data display

Power

DC input

9-24 VDC

Absolute maximum DC input

26 VDC

Maximum peak current

4.5 A

Power consumption

Consult Nortek Deployment Software

Sleep current

< 40 uA

Transmit power

Adjustable

Batteries

Internal battery capacity

1-3 x 50 Wh (Alkaline); 2-3 x 165 Wh (Lithium), 1-3 x 76 Wh (Li-Ion)

Battery weight

430g per 50 Wh (Alkaline); 380g per 165 Wh (Lithium); 300g per 76 Wh (Li-ion)

Environmental

Operating temperature

-5 to +40 °C

Storage temperature

-20 to +60 °C

Shock and vibration

Shock: IEC 60068-2-27, Vibration: IEC 60068-2-64

EMC

EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019

Depth rating

500 m

Connectors

Bulkhead (Impulse)

MCBH-8-FS Brass

Cable

PMCIL-8-MP on 5 m (default) polyurethane cable

Materials

Standard model

POM, Naval Brass, Titanium Gr. 5, Epoxy

Dimensions (see drawings for details)

Maximum housing diameter

75 mm

Maximum length

S2VP: 589 mm; S2SP: 634 mm

Weight

Weight in air (without batteries)

S2VP: 2500 g; S2SP: 2710 g

Weight in water (without batteries)

S2VP: -120 g; S2SP: -50 g

Weight in air, short housing (without batteries)

S2VP: 1900 g, S2SP: 2100 g

Weight in water, short housing (without batteries)

S2VP: 330 g, S2SP: 400 g

Head configurations

S2VP

Shallow water, 2MHz, Vertical orientation, Profiler

S2SP

Shallow water, 2MHz, Side-looking orientation, Profiler

Online cable information

Cable length

A) 0-10m, B) 10-50m, C) 50-500m

Power wire gauge

A) 20AWG, B) 20AWG, C) 18AWG

Hardware

A) Standard, B) Standard, C) Long cable kit *

Input voltage

A) 9-24VDC, B) 24VDC +/-0,5, C) 48VDC +2/-5

Absolut maximum DC input

A) 26 VDC, B) 26 VDC, C) 51 VDC

Communication

A) RS232/RS422/115200, B) RS232/RS422/115200, C) RS422/115200

*Start-up voltage: greater than or equal to 26V. Recommended operating range: 43-50 V.

Compare similar products

Nortek Aquadopp profiler 2 2 M Hz
Nortek Aquadopp profiler 2 1 M Hz
Nortek Signature1000 1 Mhz Sideview 1
Nortek ECO Current Profiler standing
Products
Aquadopp Profiler 2 MHz
Aquadopp Profiler 1 MHz
Signature 1000
Eco
Frequency
2 MHz
1 Mhz
1 Mhz
1 MHz
Features
Currents, waves
Currents, waves
Currents, waves, turbulence, echosounder, ice
Currents
Profiling range
10 m
25 m
25 m (burst), 30 m (average)
20 m
Depth rating options
500 m
500 m
300 m, 4000 m
50 m
Maximum number of cells
200
200
256 burst, 200 average
3
Maximum sampling rate
1 Hz
1 Hz
16 Hz
2, 4, 5, 6, 8 10, 20, 30 or 60 minutes
Wave measurment capabilities
Up to 10 m depth, PUV
Up to 10 m depth, PUV
Up to 30 m depth, AST
N/a
Additional options
N/a
Z-cell option (no blanking distance)
Burst, waves, ice, echosounder, HR (high-resolution), onboard wave processing
Automatic data processing
View product
View product
View product
View product
