AWAC ADCP series
Gather directional wave measurements and current profiles at long ranges. Ideal for real-time applications.
View all AWAC products
Industry-trusted technology
AWACs have been trusted as the simple, reliable and capable option for current and wave measurements for decades.
Acoustic Surface Tracking (AST)
AWACs take a direct measurement of the sea-air interface with a vertical beam for highly accurate, long-range wave masurements.
Onboard wave processing
Onboard processing of wave measurements means directional wave data can be sent directly to the end user without requiring additional processing.
Compare AWAC ADCPs
Products

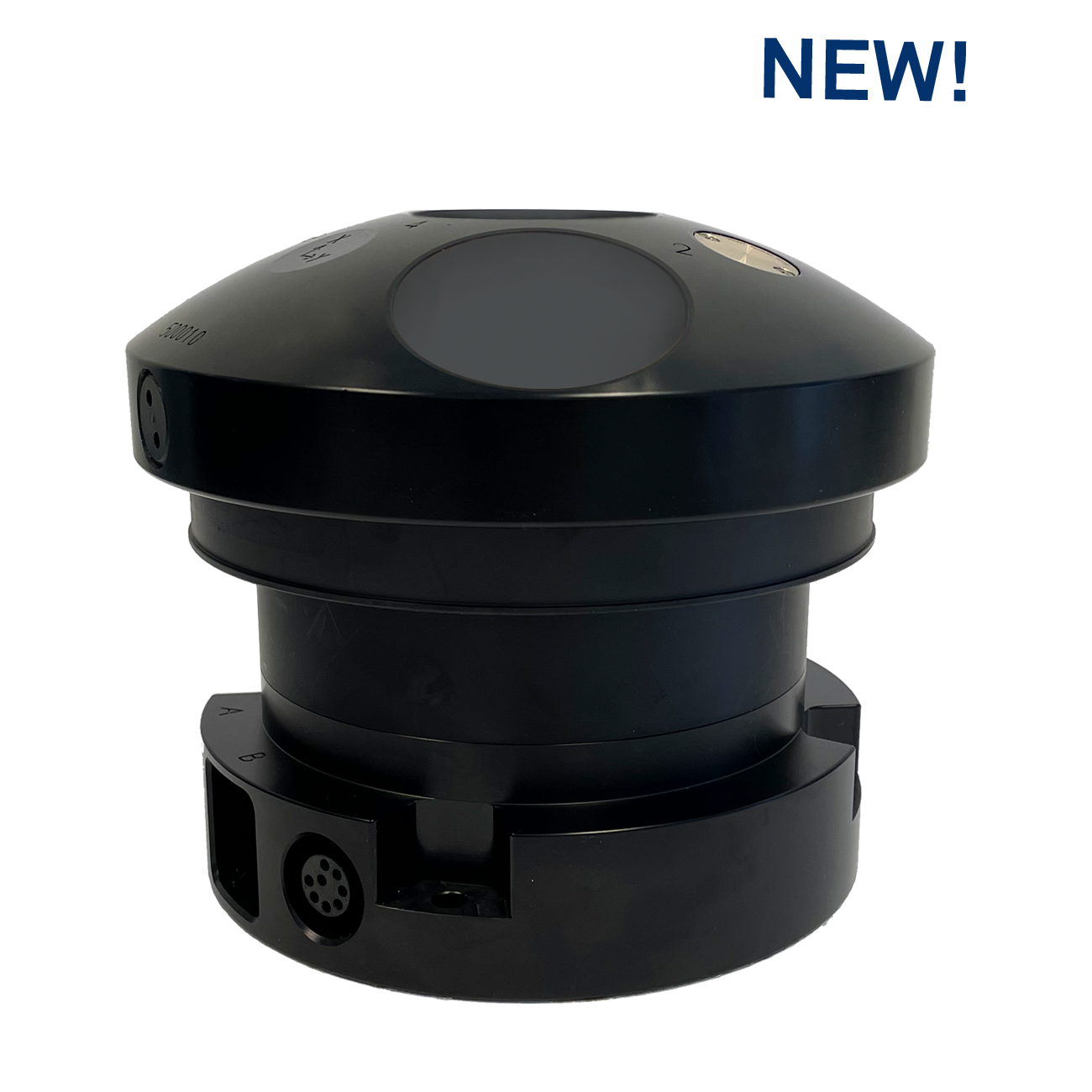

AWAC 1 MHz

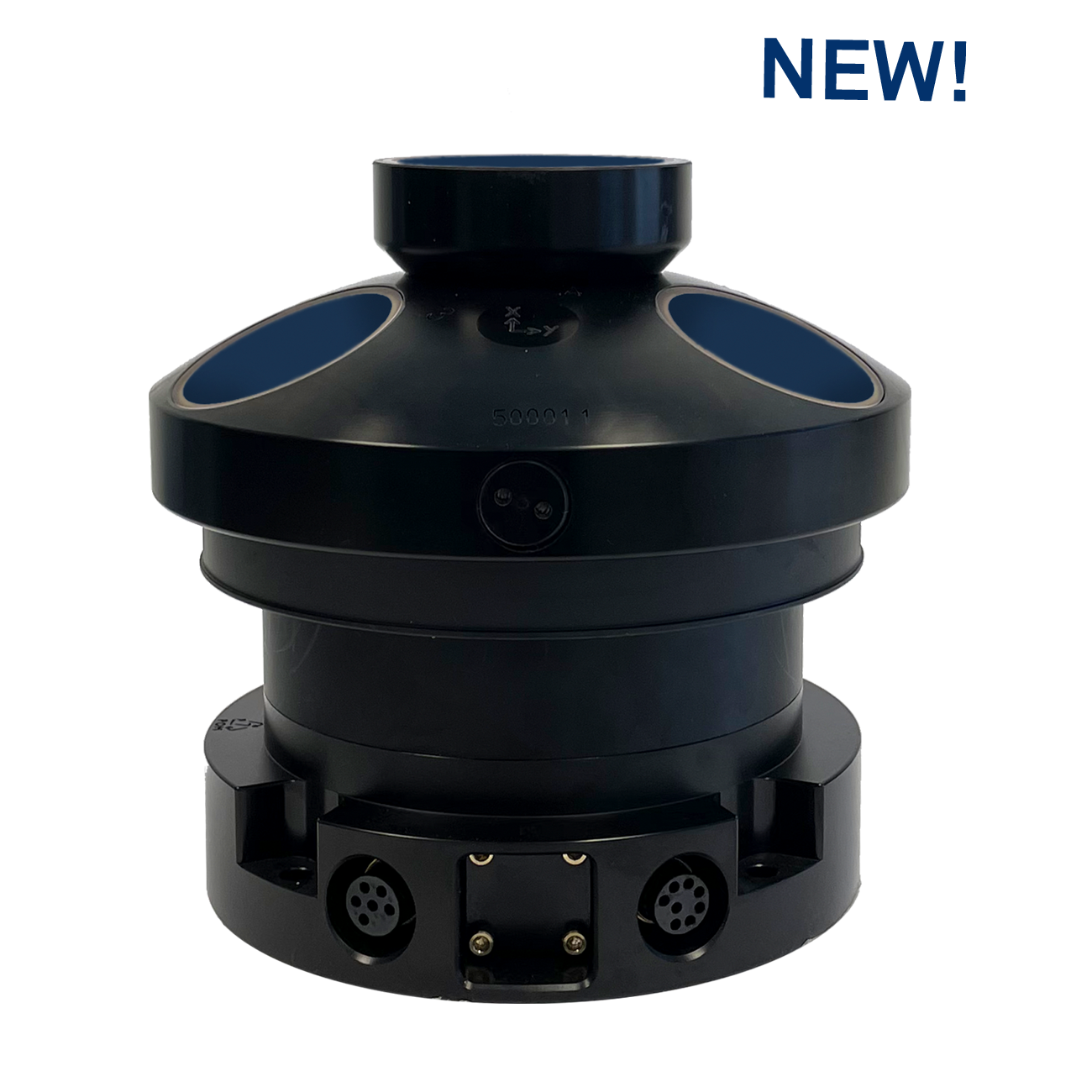

AWAC 600 kHz

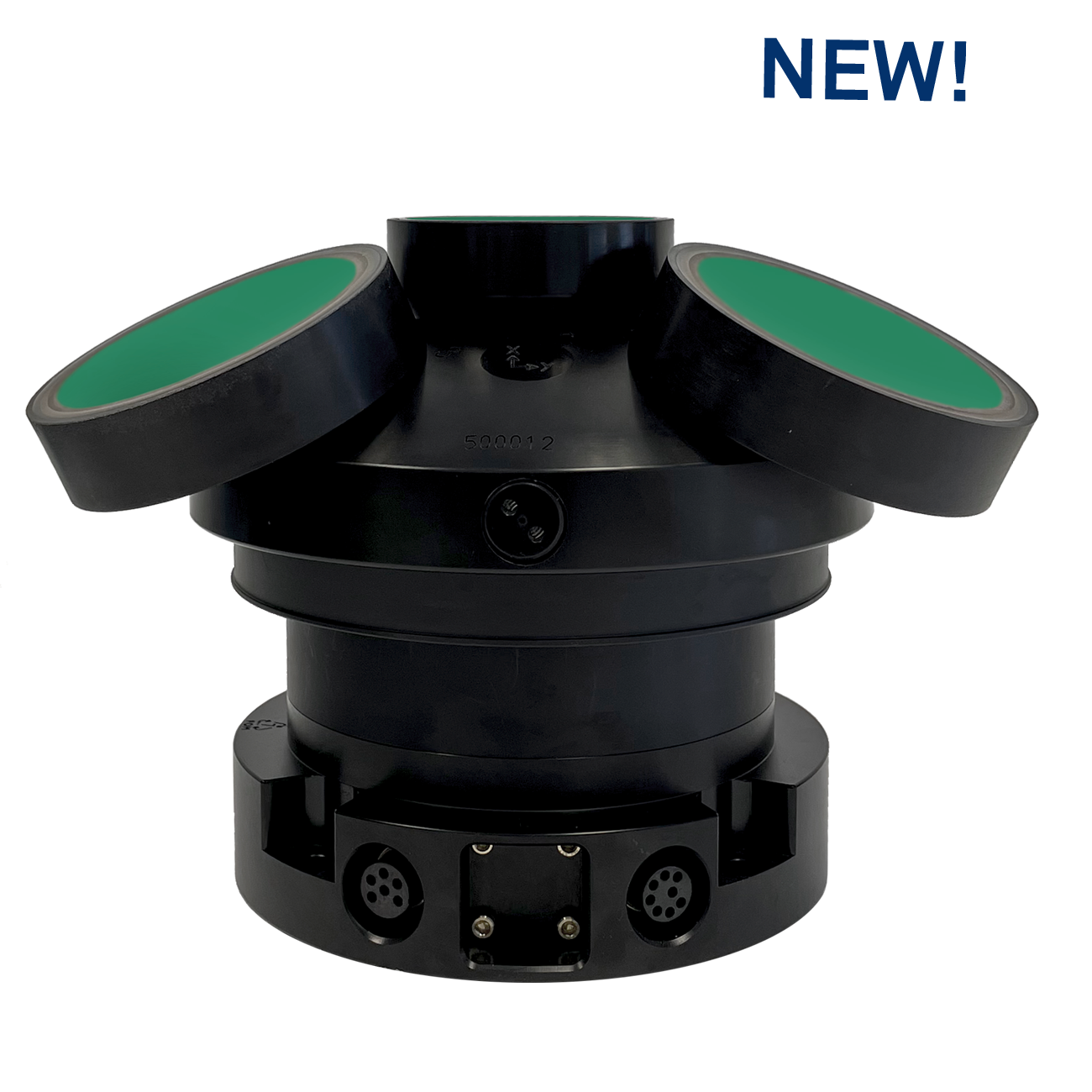

AWAC 400 kHz
Frequency
1 MHz
600 kHz
400 kHz
Features
Currents, waves
Currents, waves
Currents, waves
Maximum profiling range
30 m
50 m
100 m
Depth rating options
300 m
300 m
300 m
Cell size
0.25 - 4.0 m
0.5 - 8.0 m
1.0 - 8.0 m
Maximum number of cells
200
200
200
Maximum sampling rate (output)
1 Hz or 2 Hz
1 Hz or 2 Hz
1 Hz or 2 Hz
Wave measurement capabilities
Up to 35 m depth, AST
Up to 60 m depth, AST
Up to 100 m depth, AST
Additional options
Onboard wave processing
Onboard wave processing
Onboard wave processing
Explore all AWAC products
