Overview
The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in four profiling range options, from < 1 m to > 90 m. The 400kHz version is designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.
See the details of the Generation 2 Aquadopp updates in the release notes here.
- Currents
Highlights
-
Up to 90 m current profiling range
-
Simple operation and deployment
-
Ideal for a wide range of applications and deployment methods
Usage
-
Mean flow measurements with high focus on ease of use and simplicity
-
Measurements in flow regimes with strong variations in flow speeds
-
Studies of tidal currents
-
Suitable for wave buoys
Setup
The 400kHz Aquadopp Profiler, designed for straightforward current measurements at up to a 90m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements. It offers the longest profiling range of the Aquadopp Profiler family.
Deployment

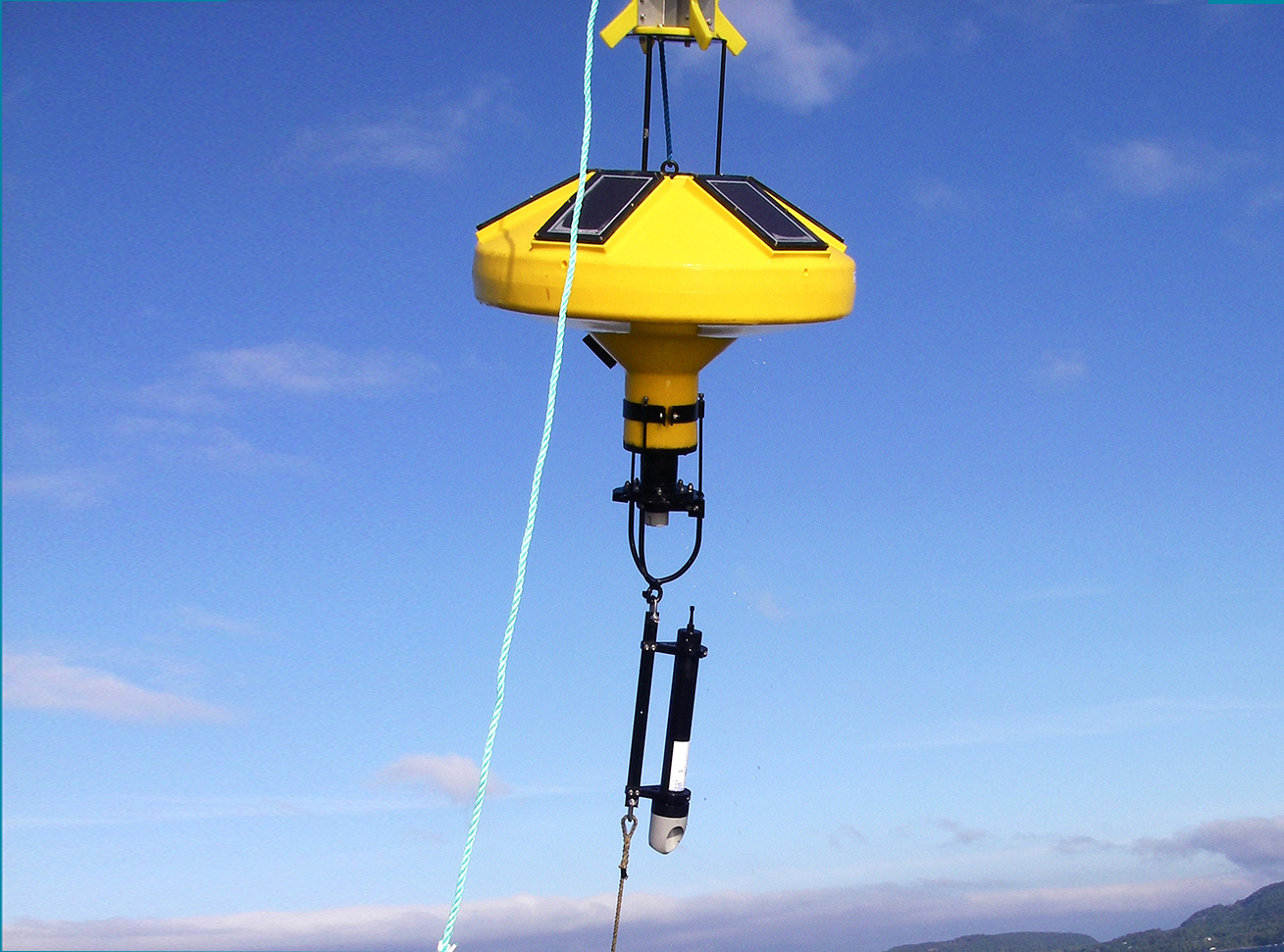

Teams of all sizes can deploy an Aquadopp Profiler successfully thanks to its compact size and flexible deployment options. Buoy, bottom frame and inline setups from Nortek and leading industry partners are available specifically for the instrument.
Data
Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.
Nominal profiling range* |
90 m |
Cell size |
1-8 m |
Maximum number of cells |
200 |
Minimum blanking |
1 m |
Velocity range (along beam) |
User-selectable 1.0 to 5.0 m/s |
Accuracy |
±1% of measured value ±0.5 cm/s |
Horizontal velocity precision** |
Typ. 1cm/s |
Maximum sampling rate (output) |
1 Hz |
Wave measurement |
PUV (optional) |
* Depending on scattering conditions |
|
** Consult instrument SW |
Sampling |
Same as velocity |
Resolution |
0.5 dB |
Dynamic range |
90 dB |
Transducer acoustic frequency |
400 kHz |
Number of beams |
3 (see GA drawings for angles) |
Beam width |
1.9° (3.8° total) |
Temperature: |
|
Temp. range |
-4 to +40 °C |
Temp. accuracy/resolution |
0.1 °C/0.01 °C |
Temp. time response |
<1 min |
Compass: |
Solid State Magnetometer |
Accuracy/resolution |
<2° for tilt <30°/0.01° |
Tilt: |
Solid State Accelerometer |
Accuracy/resolution |
0.2° for tilt <30°/0.01° |
Maximum tilt |
Full 3D |
Up or Down |
Automatic detect |
Pressure: |
Piezoresistive |
Range |
30m/100m/500m |
Accuracy/Precision |
0.5% FS/ 0.005% of full scale |
Capacity |
16 GB |
Accuracy |
±1 min/year |
Backup in absence of power |
4 weeks |
I/O |
RS-422 (Inquire for RS-232) |
Communication Baud Rate |
9600 Baud-1.2 Mbaud (default 115200 Baud) |
User control |
Nortek Deployment Software or direct ASCII commands, with binary or ASCII data output |
Operating system |
Cross platform |
Functions |
Deployment planning, instrument configuration, data retrieval and conversion. Online data display. |
DC input |
9-24 VDC |
Absolute maximum DC input |
26 VDC |
Maximum peak current |
4.5 A |
Power consumption |
Consult Nortek Deployment Software |
Sleep current |
< 40 uA |
Transmit power |
Adjustable |
Internal Battery Capacity |
1-3x 50 Wh (Alkaline), 2-3x 165 Wh (Lithium), 1-3x 76 Wh (Li-Ion) |
Battery weight |
430 g per 50 Wh (Alkaline), 380 g per 165 Wh (Lithium), 300 g per 76 Wh (Li-Ion) |
New battery voltage |
13.5 VDC |
Operating temperature |
-5 to +40 °C |
Storage temperature |
-20 to +60 °C |
Shock and vibration |
Shock: IEC 60068-2-27, Vibration: IEC 60068-2-64 |
EMC |
EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019 |
Depth rating |
500 m |
Bulkhead (Impulse) |
MCBH-8-FS Brass |
Cable |
PMCIL-8-MP on 5 m (default) polyurethane cable |
POM, Naval Brass, Titanium Gr. 5, Epoxy |
Maximum housing diameter |
75 mm |
Maximum length |
685 mm |
Weight in air (without batteries) |
3700 g |
Weight in water (without batteries) |
50 g |
Weight in air, short housing (without batteries) |
3100 g |
Weight in water, short housing (without batteries) |
500 g |
S4VP |
Shallow water, 400 kHz, Vertical orientation, Profiler |
Cable length |
A) 0-10m, B) 10-50m, C) 50-500m |
Power wire gauge |
A) 20AWG, B) 20AWG, C) 18AWG |
Hardware |
A) Standard, B) Standard, C) Long cable kit |
Input voltage |
A) 9-24VDC, B) 24VDC +/-0,5, C) 48VDC +2/-5 |
Absolut maximum DC input |
A) 26 VDC, B) 26 VDC, C) 51 VDC |
Communication |
A) RS232/RS422/115200, B) RS232/RS422/115200, C) RS422/115200 |
Aquadopp Profiler 2 400kHz
Standard housing for three batteries
Short housing for one battery
16 GB SD card data logger
Pressure sensor, 0-30 m
Pressure sensor, 0-100 m
Pressure sensor, 0-500m

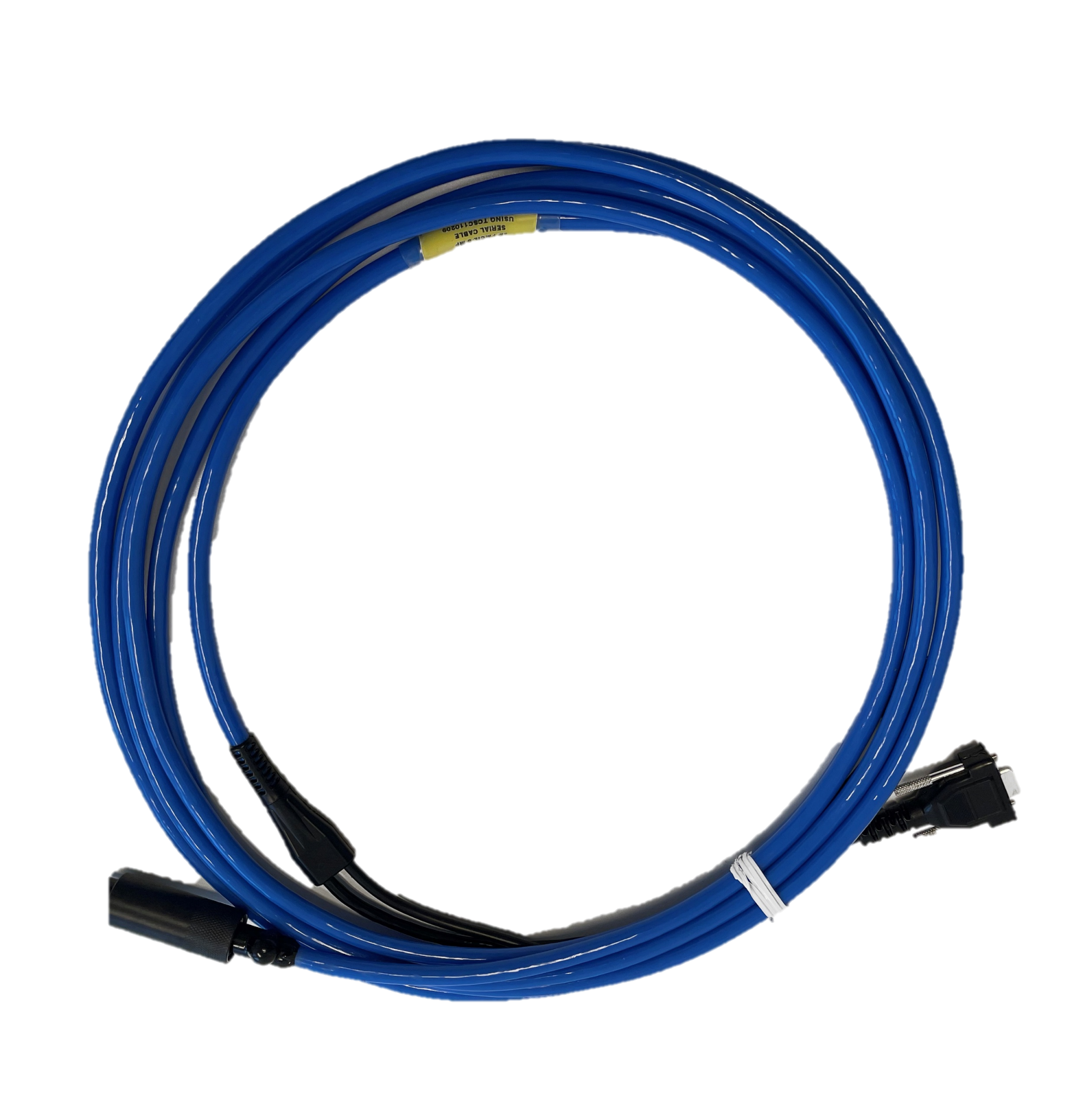

5m PMCIL-8-MP Serial cable for Aquadopp 2
10m PMCIL-8-MP Serial cable for Aquadopp 2
20m PMCIL-8-MP Serial cable for Aquadopp 2
30m PMCIL-8-MP Serial cable for Aquadopp 2
40m PMCIL-8-MP Serial cable for Aquadopp 2
50m PMCIL-8-MP Serial cable for Aquadopp 2
Aquadopp Profiler with inductive modem kit
Aquadopp Profiler with inductive modem kit and canister
