Aquadopp Profiler 2

Z-Cell - 400 kHz

Up to 90 m current profiling range and no blanking; ideal for mean and boundary current measurements

  • Up to 90 m current profiling range
  • Capable of measuring surface or bottom currents
  • Ideal for mean current measurements

Overview

Need to collect accurate 3D currents very near the seabed or sea surface, in addition to a full water-column profile?

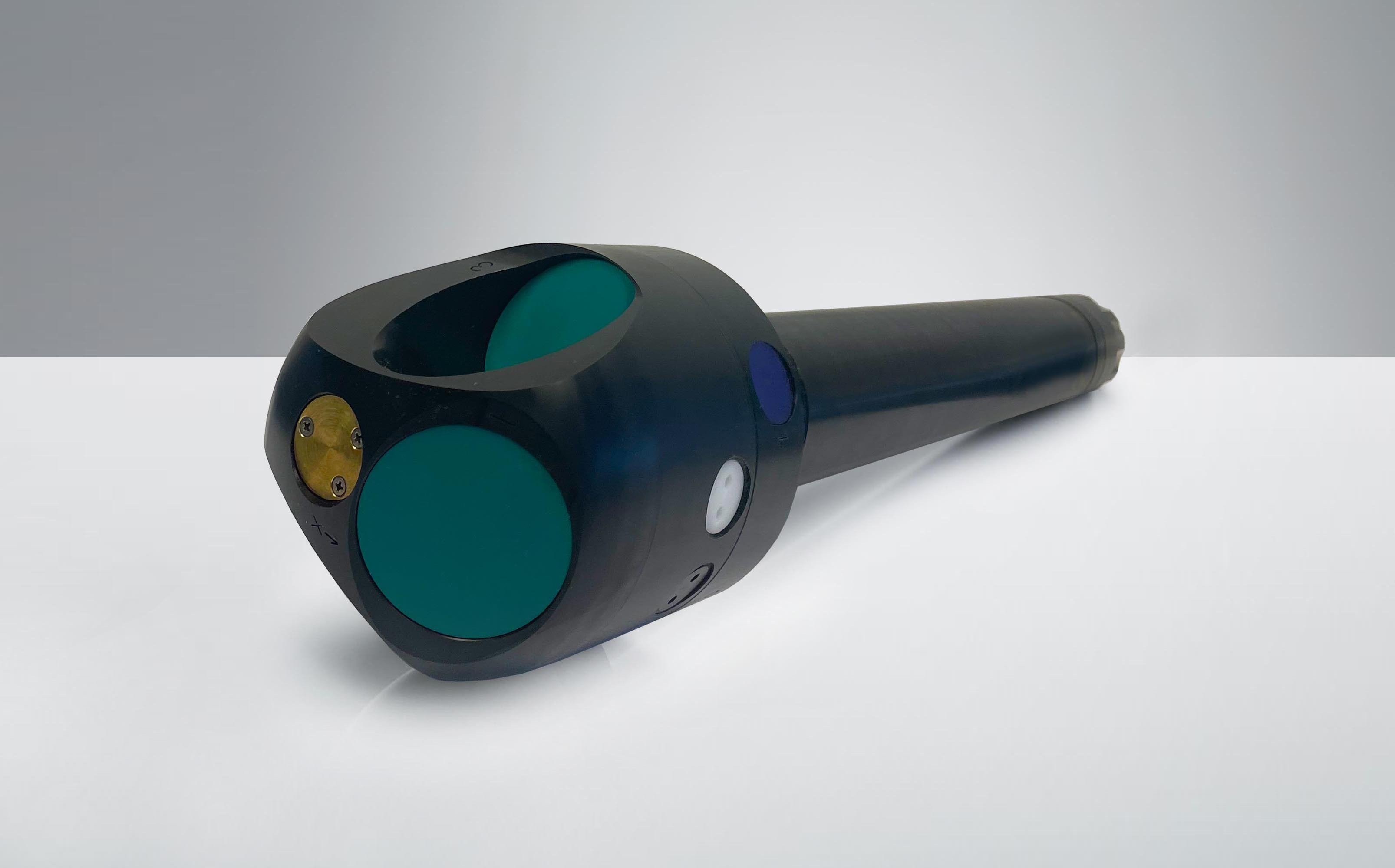

The Z-Cell (Zero Cell) 400 kHz Aquadopp allows current measurement to start right at the instrument’s level through an innovative approach: it has side-looking beams fully integrated into the instrument’s head, effectively removing the blanking distance normally applicable to ADCPs.

  • Currents

Highlights

  • Up to 90 m current profiling range
  • Capable of measuring surface or bottom currents
  • Ideal for mean current measurements

Usage

  • Mounted on bottom frames, with ability to also measure near-bed currents
  • Mounted on surface buoys, with the ability to also measure surface currents
  • Mean flow measurements with high focus on ease of use and simplicity
  • Studies of tidal currents

Setup

The 400 kHz Aquadopp Z-Cell, designed for current measurements up to a 90m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements. The Z-cell functionality allows measurements at the level of the instrument head, eliminating the “blanking distance” at which most ADCPs cannot measure.

Deployment

Teams of all sizes can deploy an Aquadopp Z-Cell successfully thanks to its compact size. The instrument is optimal for deployments near boundaries such as the seabed or sea surface.

Data

Nortek postprocessing software and/or display software is available for review, visualization and processing of data, after deployment or in real time. The instrument can provide data from the level of the instrument as well as a full water column profile.

Download PDF

Nominal profiling range*

90 m

Cell size

1-8 m

Maximum number of cells

200

Minimum blanking

0 m with Z-cell enabled

Velocity range (along beam)

±1 m/s, ±2.5 m/s, ±5 m/s

Accuracy

±1% of measured value ±0.5 cm/s

Velocity range (horizontal)

±2.3 m/s, ±5.75 m/s, ±11.5 m/s

Horizontal velocity precision**

Typ. 1cm/s

Maximum sampling rate (output)

1 Hz

Wave measurement

PUV (optional)

  • Depending on scattering conditions

** Consult instrument SW

Distance to measurement volume

0.05 - 2.5 m

Cell size

0.2 - 1.5 m

Velocity range (Horizontal)

±5 m/s

Transducer acoustic frequency

2 MHz

Number of beams

2

Sampling

Same as velocity

Resolution

0.5 dB

Dynamic range

90 dB

Transducer acoustic frequency

400 kHz

Number of beams

3 (see GA drawing for angles)

Beam width

1.9° (3.8° total)

Temperature:

Temp. range

-4 to +40 °C

Temp. accuracy/resolution

0.1 °C/0.01 °C

Temp. time response

<1 min

Compass:

Solid State Magnetometer

Accuracy/resolution

<2° for tilt <30°/0.01°

Tilt:

Solid State Accelerometer

Accuracy/resolution

0.2° for tilt <30°/0.01°

Maximum tilt

Full 3D

Up or Down

Automatic detect

Pressure:

Piezoresistive

Range

30 m / 100 m / 500 m

Accuracy/Precision

0.5% FS / 0.005% of full scale

Capacity

16 GB

Accuracy

±1 min/year

Backup in absence of power

4 weeks

I/O

RS-422 (Inquire for RS-232)

Communication Baud Rate

9600 Baud-1.2 Mbaud (default 115200 Baud)

User control

Nortek Deployment Software or direct ASCII commands, with binary or ASCII data output

Operating system

Agnostic

Functions

Deployment planning, instrument configuration, data retrieval and conversion. Online data display.

DC input

9-24 VDC

Absolute maximum DC input

26 VDC

Maximum peak current

4.5 A

Power consumption

Consult Nortek Deployment Software

Sleep current

< 10 uA

Transmit power

Adjustable

Internal Battery Capacity

1-3x 50 Wh (Alkaline), 2-3x 165 Wh (Lithium), 1-3x 76Wh (Li-Ion)

Battery weight

430g per 50 Wh (Alkaline), 380g per 165 Wh (Lithium), 300g per 76Wh (Li-Ion)

Operating Temperature

-5 to +40 °C

Storage Temperature

-20 to +60 °C

Shock and vibration

Shock: IEC 60068-2-27, Vibration: IEC 60068-2-64

EMC

EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019

Depth rating

500 m

Bulkhead (Impulse)

MCBH-8-FS Brass

Cable

PMCIL-8-MP on 5m (default) polyurethane cable

POM, Naval Brass, Titanium Gr.5, Epoxy

Maximum housing diameter

75 mm

Maximum length

701 mm

Weight in air (without batteries)

3900 g

Weight in water (without batteries)

60 g

S4VZ

Shallow water, 400 kHz, Vertical orientation, Z-cell Profiler

Aquadopp Z-cell 400kHz S4VZ

Declaration of conformity

Technical specifications for Aquadopp Z-cell 600kHz delivered pre-2024

Aquadopp Z-Cell 2 400kHz (+2MHz)

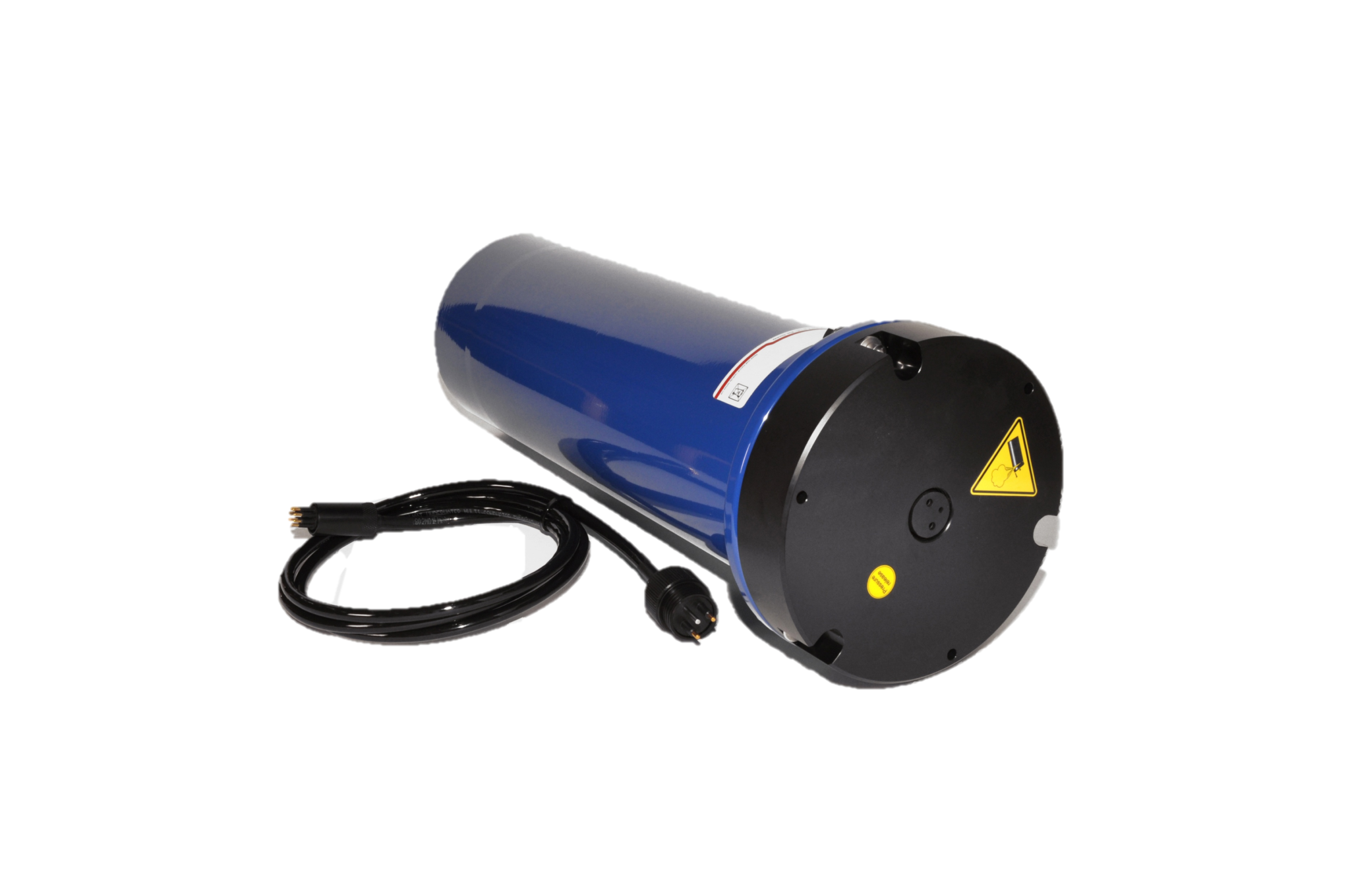

Standard housing for three batteries

Short housing for one battery

16 GB SD card data logger

Pressure sensor, 0-30 m

Pressure sensor, 0-100 m

Pressure sensor, 0-500m

5m PMCIL-8-MP Serial cable for Aquadopp 2

10m PMCIL-8-MP Serial cable for Aquadopp 2

20m PMCIL-8-MP Serial cable for Aquadopp 2

30m PMCIL-8-MP Serial cable for Aquadopp 2

40m PMCIL-8-MP Serial cable for Aquadopp 2

50m PMCIL-8-MP Serial cable for Aquadopp 2
