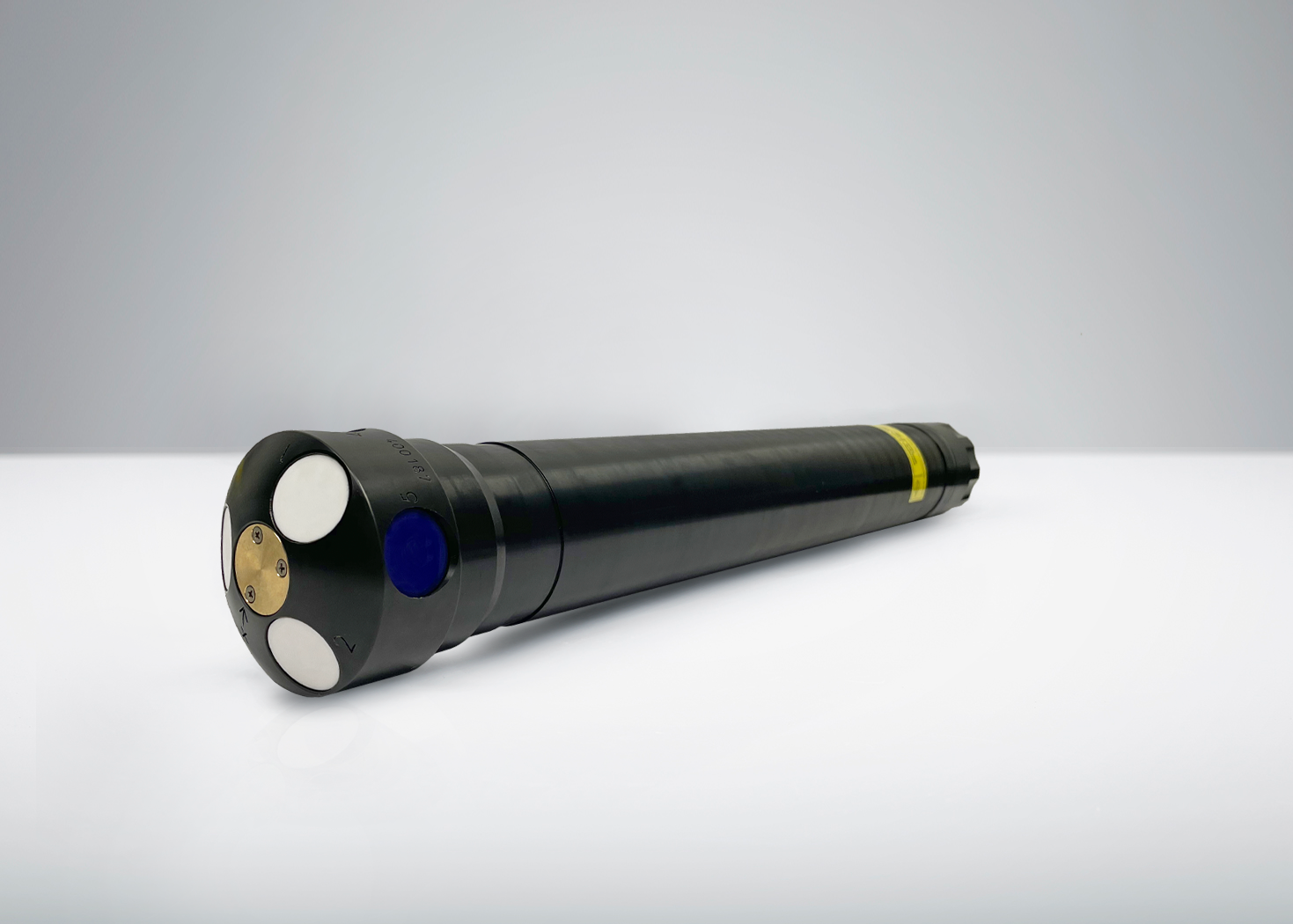

Nortek Aquadopp profiler Z cell 1 M Hz sideview
Nortek Aquadopp profiler Z cell 1 M Hz closeup
Z Cell low
Nortek 30269888551
2 New image coming soon Aqaudopp
Nortek Aquadopp profiler Z cell 1 M Hz sideview
Nortek Aquadopp profiler Z cell 1 M Hz closeup
Z Cell low
Nortek 30269888551

Oceanography

Aquadopp Profiler 2

Z-Cell - 1 MHz

Up to 25 m current profiling range and no blanking; can measure near-surface or near-bottom currents

  • Up to 25 m current profiling range
  • Capable of measuring surface or bottom currents
  • PUV-based directional wave measurements

Overview

Need to collect accurate 3D currents very near the seabed or sea surface, in addition to a full water-column profile?

The Z-Cell (Zero Cell) 1 MHz Aquadopp allows current measurement to start right at the instrument’s level through an innovative approach: it has side-looking beams fully integrated into the instrument’s head, effectively removing the blanking distance normally applicable to ADCPs.

  • Currents
  • Waves

Highlights

  • Up to 25 m current profiling range
  • Capable of measuring surface or bottom currents
  • PUV-based directional wave measurements

Usage

  • Mounted on bottom frames, with ability to also measure near-bed currents
  • Mounted on surface buoys, with the ability to measure also surface currents
  • Mean flow measurements with high focus on ease of use and simplicity
  • Measurements of combinations of waves and currents

Setup

The 1MHz Aquadopp Z-Cell, designed for current measurements up to a 25m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements. The Z-cell functionality allows measurements at the level of the instrument head, eliminating the “blanking distance” at which most ADCPs cannot measure.

Deployment

Teams of all sizes can deploy an Aquadopp Z-Cell successfully thanks to its compact size. The instrument is optimal for deployments near boundaries such as the seabed or sea surface.

Data

Nortek postprocessing software and/or display software is available for review, visualization and processing of data, after deployment or in real time. The instrument can provide data from the level of the instrument as well as a full water column profile.

Download PDF

Nominal profiling range

25 m

Cell size

0.25-4 m

Maximum number of cells

200

Minimum blanking

0 m with Z-cell enabled

Velocity range (along beam)

±1 m/s, ±2.5 m/s, ±5 m/s

Velocity range (horizontal)

±2.3 m/s, ±5.75 m/s, ±11.5 m/s

Accuracy

±1% of measured value ±0.5 cm/s

Horizontal Velocity precision**

Typ. 1cm/s

Maximum sampling rate (output)

1 Hz

Wave measurements

PUV (optional)

  • Depending on scattering conditions

** Consult instrument SW

Distance to measurement volume

0.05 - 2.5 m

Cell size

0.2 - 1.5 m

Velocity range (Horizontal)

±5 m/s

Transducer acoustic frequency

2 MHz

Number of beams

2

Sampling

Same as velocity

Resolution

0.5 dB

Dynamic range

90 dB

Transducer acoustic frequency

1 Mhz

Number of beams

3 (see GA drawing for angles)

Beam width

1.7° (3.4° total)

Maximum profiling range

8 m

Cell size

0.02-0.25 m

Minimum blanking

0.1 m

Maximum number of cells

256

Velocity range

3 cm/s - 1.3 m/s

Range velocity limitations

Product of profiling range and velocity should not exceed 0.25 m2/s

Accuracy

±1% of measured value ±0.5 cm/s

Max. Sampling rate

4 Hz

Temperature:

Temp. range

-4 to +40 °C

Temp. accuracy/resolution

0.1 °C/0.01 °C

Temp. time response

<1 min

Compass:

Solid State Magnetometer

Accuracy/resolution

<2° for tilt <30°/0.01°

Tilt:

Solid State Accelerometer

Accuracy/resolution

0.2° for tilt <30°/0.01°

Maximum tilt

Full 3D

Up or Down

Automatic detect

Pressure:

Piezoresistive

Range

30 m / 100 m / 500 m

Accuracy/precision

0.5% FS / 0.005% of full scale

Capacity

16 GB

Accuracy

±1 min/year

Backup in absence of power

4 weeks

I/O

RS-422 (Inquire for RS-232)

Communication Baud Rate

9600 Baud-1.2 Mbaud (default 115200 Baud)

User control

Nortek Deployment Software or direct ACSII commands, with binary or ASCII data output

Operating system

Agnostic

Functions

Deployment planning, instrument configuration, data retrieval and conversion. Online data display.

DC input

9-24 VDC

Absolute maximum DC input

26 VDC

Maximum peak current

4.5 A

Power consumption

Consult Nortek Deployment Software

Sleep current

< 10 uA

Transmit power

Adjustable

Internal Battery capacity

1-3x 50 Wh (Alkaline), 2-3x 165 Wh (Lithium), 1-3x 76Wh (Li-Ion)

Battery weight

430g per 50 Wh (Alkaline), 380g per 165 Wh (Lithium), 300g per 76Wh (Li-Ion)

Operating temperature

-5 to +40 °C

Storage temperature

-20 to +60 °C

Shock and vibration

Shock: IEC 60068-2-27, Vibration: IEC 60068-2-64

EMC

EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019

Depth rating

500 m

Bulkhead (Impulse)

MCBH-8-FS Brass

Cable

PMCIL-8-MP on 5m (default) polyurethane cable

Standard model

POM, Naval Brass, Titanium Gr.5, Epoxy

Maximum housing diameter

75 mm

Maximum length

602 mm

Weight in air (without batteries)

2280 g

Weight in water (without batteries)

-400 g (buoyant)

S1VZ

Shallow water, 1 Mhz, Vertical orientation, Z-Cell Profiler

Aquadopp Z-cell 1MHz S1VZ

Declaration of conformity

Technical specifications for Aquadopp Z-cell 1Mhz delivered pre-2024

Aquadopp Z-Cell 1MHz (+2MHz)

1 MHz Z-Cell Head - A1Z

Standard housing for three batteries

Short housing for one battery

Pressure sensor, 0-30 m

Pressure sensor, 0-100 m

Pressure sensor, 0-500m

5m PMCIL-8-MP Serial Cable for Aquadopp 2

10m PMCIL-8-MP Serial Cable for Aquadopp 2

20m PMCIL-8-MP Serial Cable for Aquadopp 2

30m PMCIL-8-MP Serial Cable for Aquadopp 2

40m PMCIL-8-MP Serial Cable for Aquadopp 2

50m PMCIL-8-MP Serial Cable for Aquadopp 2

New features, fixes and functionality

The standard deployment software for Nortek Aquadopp and Aquadopp Profiler instruments purchased after October 2023.

The software can be launched from your web browser, installed from Microsoft Store or downloaded as an offline installer file.

320051

Cable for external battery canister to 8-pin inline connector

650001

Cable RS232 polyurethane with 8-pin inline connector and USB converter

650072

Cable RS422 polyurethane with 8-pin inline connector and USB converter

220010

Battery, 13.5 V - 50 Wh, alkaline - for use with Aquadopp (obsolete)

This slim battery can be used inside the main canister of your Nortek instrument.

220008

Battery, 13.5 V - 100 Wh, alkaline - for use with Aquadopp (obsolete)

This slim battery can be used inside the main canister of your Nortek instrument.

220025

Battery, 12 V - 165 Wh, lithium - for use with Aquadopp (obsolete)

This battery can be used inside the main canister of your Nortek instrument.

901115

Battery canister, plastic with 4*18 AA pack w/cable 8-pin inline (300m rating)

220010 5 Pack

Battery pack, 5-pack, 13.5 V - 50 Wh, alkaline - for use with Aquadopp (obsolete)

This slim battery can be used inside the main canister of your Nortek instrument.

220010 10 Pack Nortek batteries

Battery pack, 10-pack, 13.5 V - 50 Wh, alkaline - for use with Aquadopp (obsolete)

This slim battery can be used inside the main canister of your Nortek instrument.

220008 5 Pack

Battery pack, 5-pack, 13.5 V - 100 Wh, alkaline - for use with Aquadopp (obsolete)

This slim battery can be used inside the main canister of your Nortek instrument.

220008 10 pack batteries

Battery pack, 10-pack, 13.5 V - 100 Wh, alkaline - for use with Aquadopp (obsolete)

This slim battery can be used inside the main canister of your Nortek instrument.

220025 5 Pack

Battery pack, 5-pack, 12 V - 165 Wh, lithium - for use with Aquadopp (obsolete)

This battery can be used inside the main canister of your Nortek instrument.

Nortek battery packs

Battery pack, 10-pack, 12 V - 165 Wh, lithium - for Aquadopp (obsolete)

This battery can be used inside the main canister of your Nortek instrument.

650246

Set of Anti-fouling patches for Aquadopp Profiler Z-cell 1 MHz
