Vectrino

VELOCIMETER

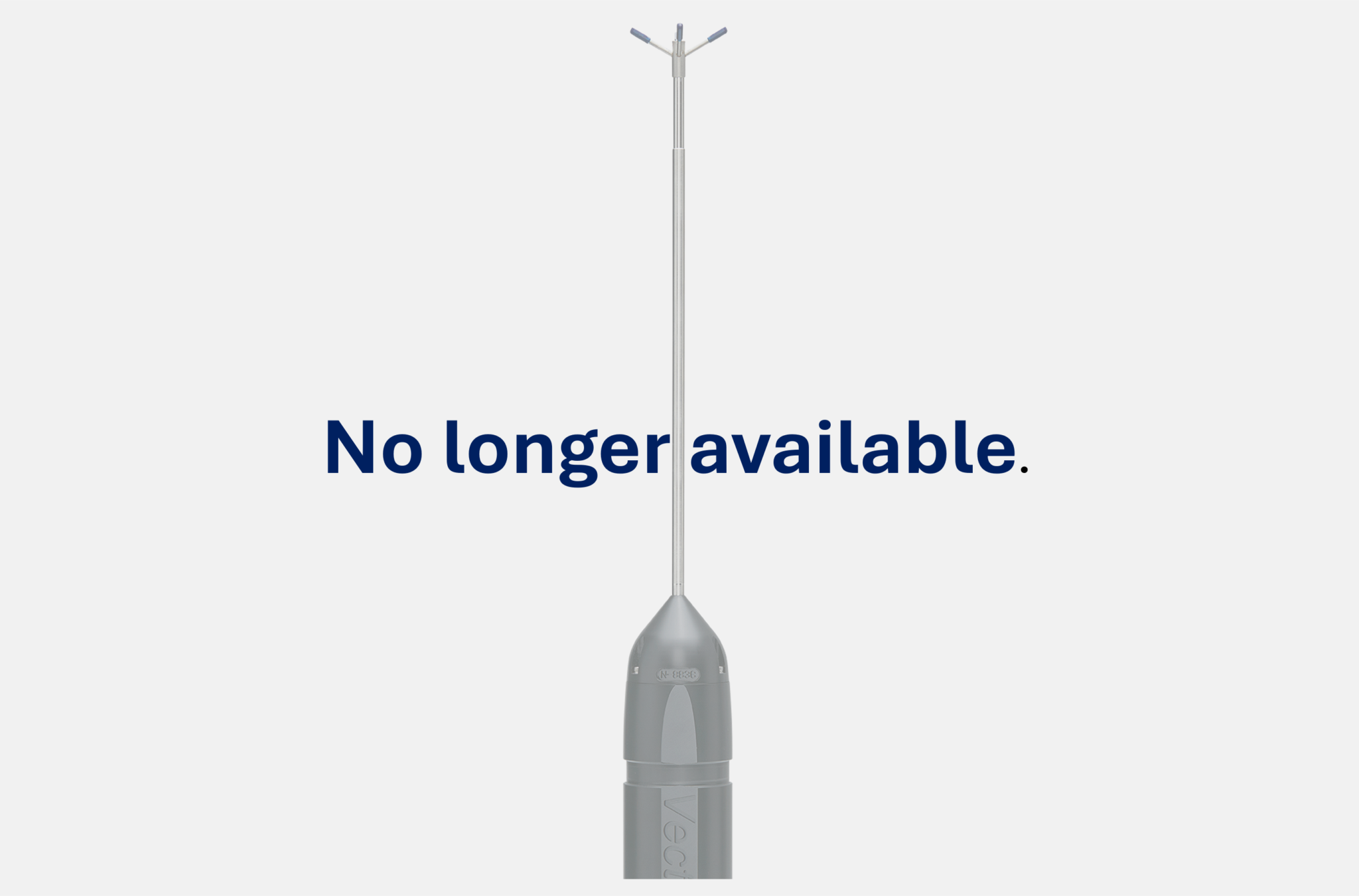

Vectrino

Sample 3D velocity at up to 200 Hz for use in hydraulic models and laboratory flumes

Highlights

  • Hydraulic models and flumes
  • Inexpensive alternative to laser Doppler velocimeter
  • 200 Hz maximum sampling rate

Overview

  • The Vectrino is a high-resolution acoustic velocimeter used to measure 3D water velocity fluctuations within a very small sampling volume and at sample rates of up to 200 Hz. It can be applied in a variety of environments, from hydraulic labs – where it is regarded as standard equipment – to the ocean. It is ideal for near-boundary flow measurements or to capture any highly dynamic phenomena in a hydraulic tank.

Applications

  • 3D flow measurements in laboratory flumes
  • Flow measurements near boundaries and in areas that are difficult to access
  • Flow measurements in physical models in hydraulic laboratories
  • Measurements of laboratory flume bottom changes as a function of time
Investigating transport and mixing at river confluences with Nortek's Vectrino
How University of Miami's hurricane research is helping save lives
Go behind the scenes at Nortek's HQ

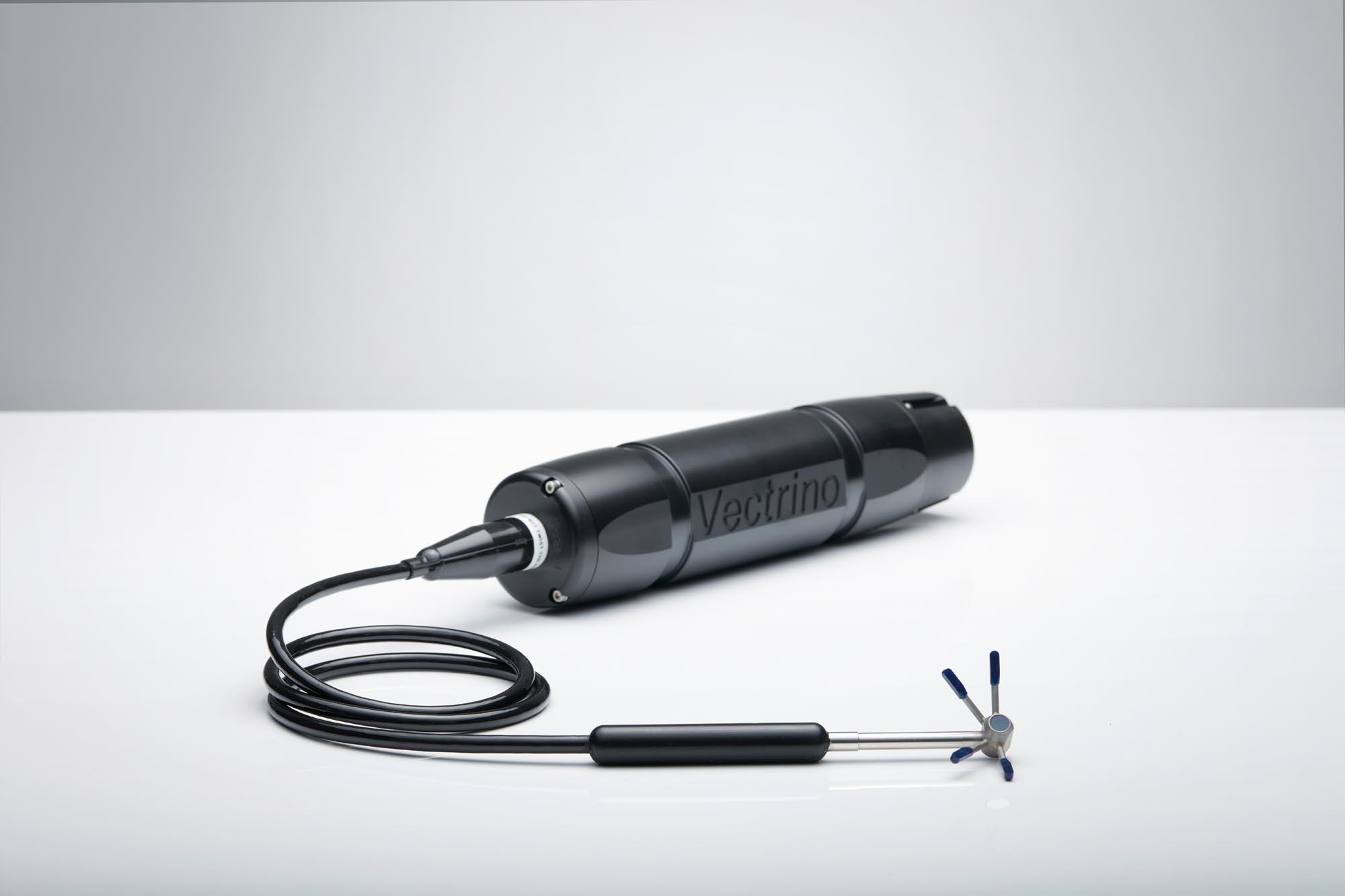

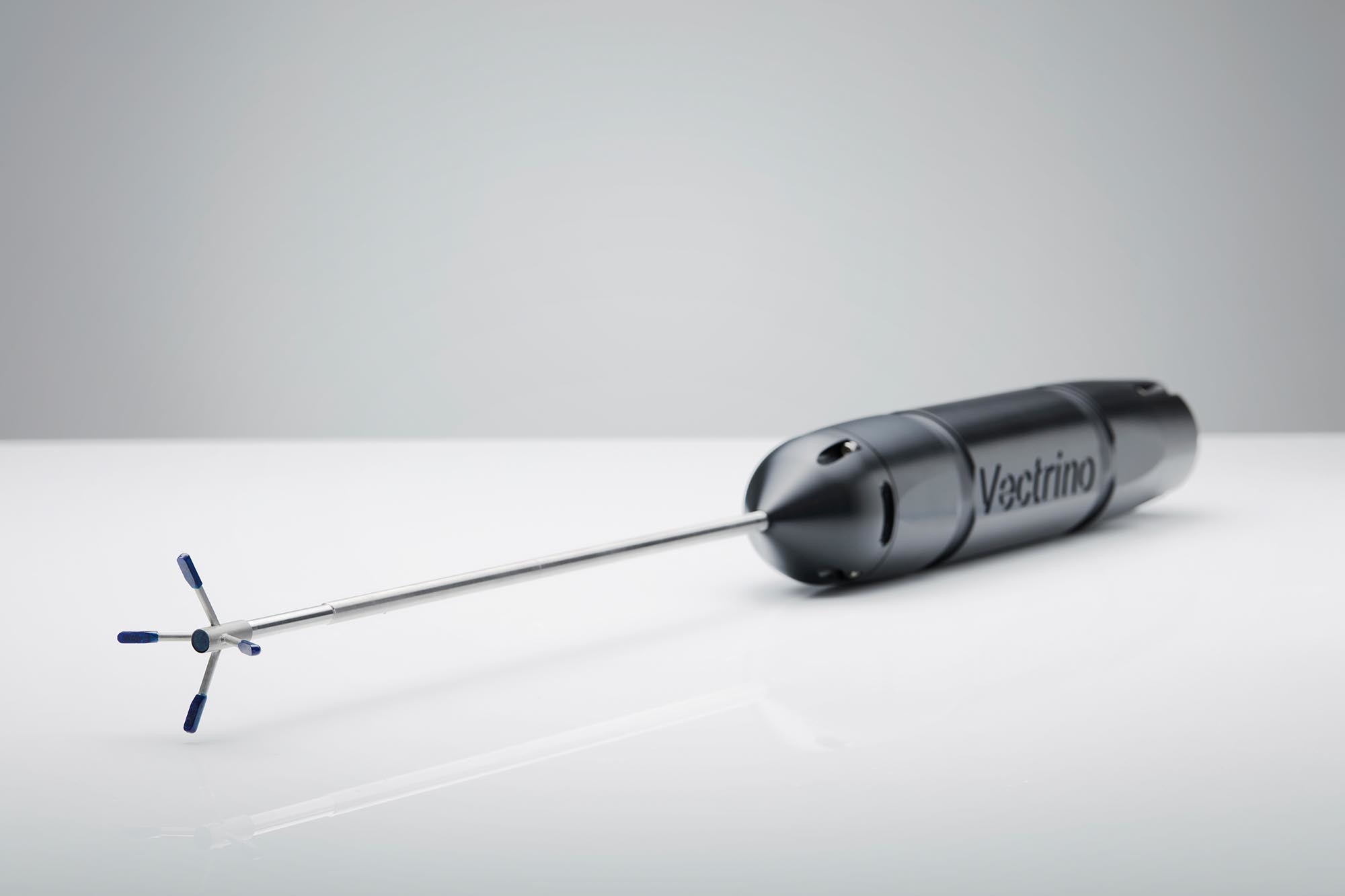

Vectrino  - additional image

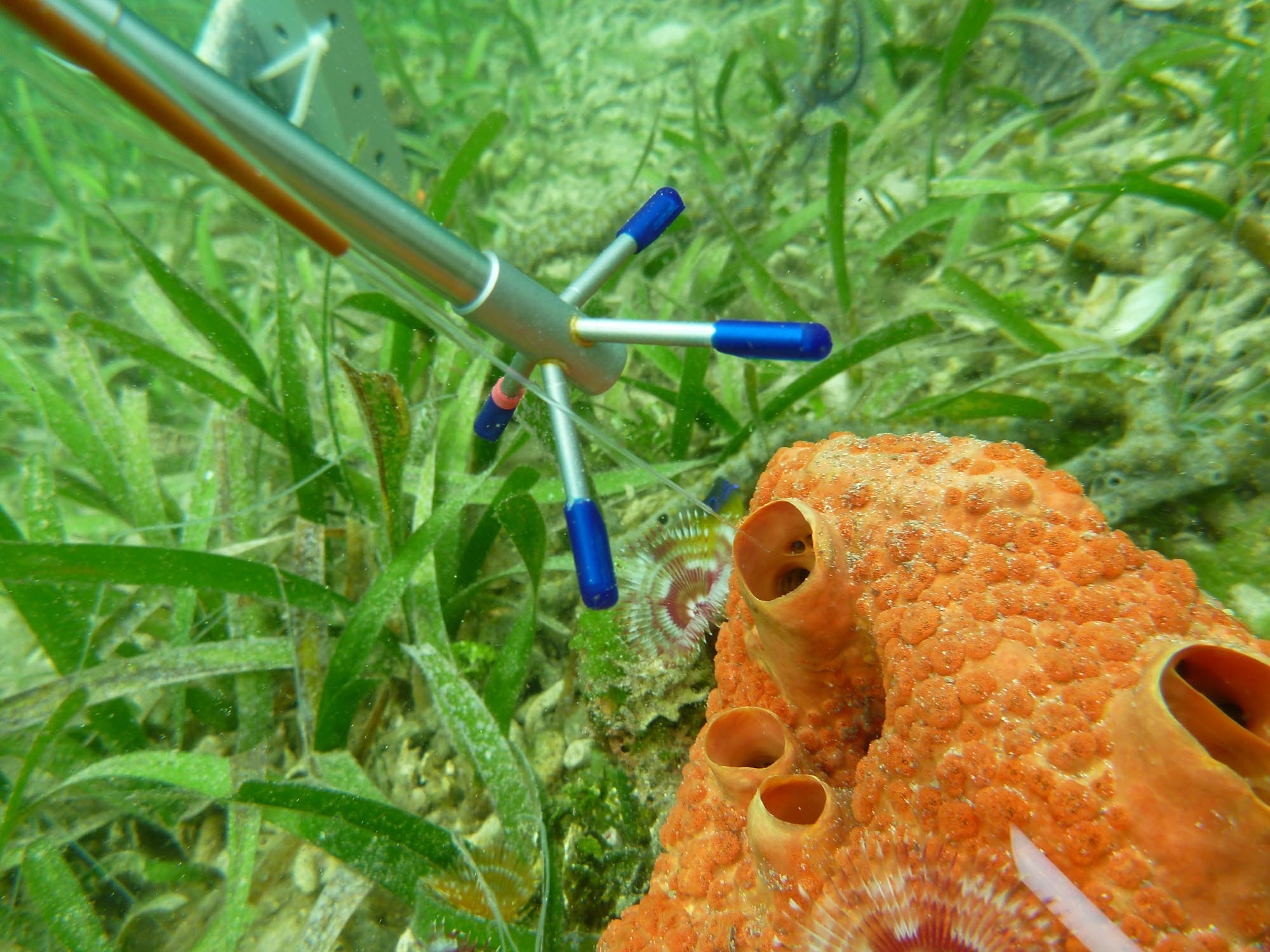

Vectrino  - additional image

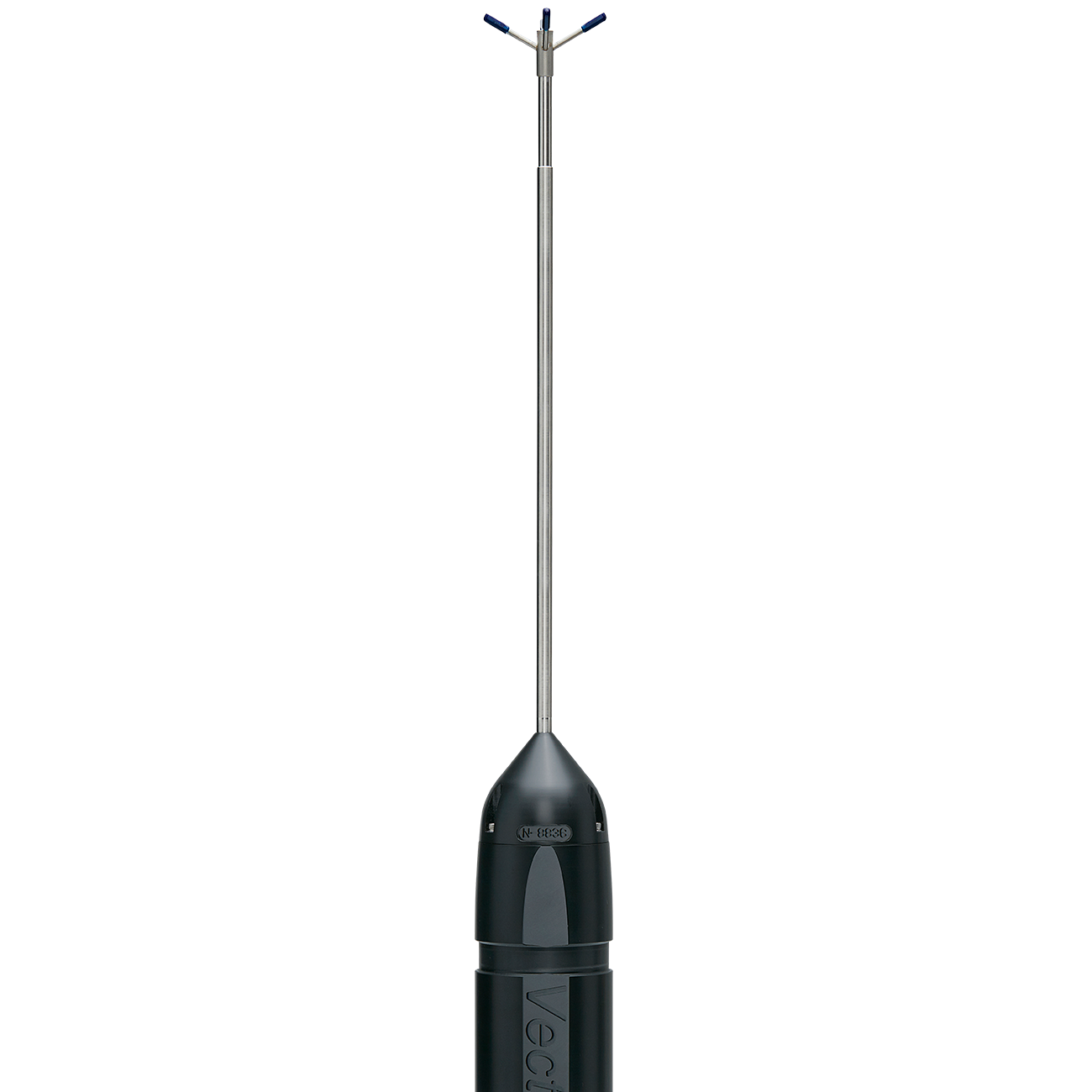

Vectrino  - additional image
    • Toggle all

    • Water velocity measurements

      Maximum profiling range N/A
      Distance from probe 0.05 m, 0.1 m (field probe)
      Sampling volume diameter 6 mm
      Sampling volume height (user-selectable) 3-15 mm
      Cell size N/A
      Velocity range* ±0.03, 0.1, 0.3, 1, 2.5, 4 m/s (software-selectable)
      Adaptive ping interval N/A
      Accuracy ±0.5% of measured value ±1 mm/s
      Velocity precision N/A
      Sampling rate (output) 1-25 Hz (Std firmware),1-200 Hz (Plus firmware)
      Internal sampling rate N/A
      * The velocity range is not the same in the horizontal and vertical direction. Please refer to the configuration software.
    • Distance measurements

      Minimum range N/A
      Maximum range N/A
      Cell size N/A
      Accuracy N/A
      Sampling rate N/A
    • Echo intensity

      Acoustic frequency 10 MHz
      Resolution Linear scale
      Dynamic range 25 dB
    • Sensors

      Temperature: Thermistor embedded in probe
      Temp. range -4 to +32 °C
      Temp. accuracy/resolution 1 °C/0.1 °C
      Temp. time response 5 min
      Compass: N/A
      Accuracy/resolution N/A
      Tilt: N/A
      Accuracy/resolution N/A
      Maximum tilt N/A
      Up or Down N/A
      Pressure: N/A
      Standard range N/A
      Accuracy/precision N/A
    • Analog inputs

      No. of channels N/A
      Supply voltage to analog output devices N/A
    • Data recording

      Capacity (standard): N/A
      Data record N/A
    • Real-time clock

      Accuracy N/A
      Backup in absence of power N/A
    • Data communications

      I/O RS-232
      Communication baud rate 300-115 200 Bd
      Recorder download baud rate N/A
      User control Handled via ”Vectrino” software, ActiveX® function calls, or direct commands
      Analog outputs 3 channels standard, one for each velocity component
      Output range 0–5 V, scaling is user-selectable0
      Synchronization RS-485, start on sync, sample on sync,transmit on sync (Plus Firmware)
    • Connectors

      Bulkhead (Impulse) MCBH-12-FS, bronze (Impulse)
      Cable PMCIL-12-MP – see also options below
    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®)
    • Multi unit operation

      Software Polysync
      I/O RS 232–USB support for devices with 1, 2, 4, and 8 serial ports
    • Power

      DC input 12-48 V DC
      Maximum peak current 2.5 A at 12 V DC (user-selectable)
      Max. consumption 1.5 W at 200 Hz
      Typical consumption, 4 Hz N/A
      Sleep consumption N/A
      Transmit power N/A
    • Batteries

      Battery capacity N/A
      New battery voltage N/A
      Data collection capacity N/A
    • Environmental

      Operating temperature -4 to +40 °C
      Storage temperature -15 to +60 °C
      Shock and vibration IEC 721-3-3
      Depth rating 20 m
    • Materials

      Standard model POM housing. Stainless steel (316) probe and fasteners
    • Dimensions

      Maximum diameter 66 mm
      Maximum length 350 mm (housing only), 365 mm (fixed stem)
    • Weight

      Weight in air 1.2 kg (1.3 kg with field probe)
      Weight in water Neutral (0.1 kg with field probe)
    • Options

      4-beam down-looking probe or side-looking probe. Fixed stem or 1 m flexible cable
      10, 20, 30 or 50 m cable with Impulse underwater connector
      RS 232–USB converter (one-to-one, four-to-one or eight-to-one)
      Standard or Vectrino Plus firmware
      Combined transportation and storage case

    • Toggle all

    • Technical drawings


    • Toggle all

    • Main product

      01

      Vectrino, lab version

      02

      Vectrino, field version

    • Probe type / Head

      01

      4-beam down-looking probe

      02

      4-beam side-looking probe (2D3D)

      03

      4-beam field probe w/10-cm focal point (field probe only)

      04

      Probe mounted on 36-cm stem

      05

      Probe mounted on 25-cm stem (field probe only)

      06

      Lab probe mounted on 1-m cable

    • Housing

      01

      Housing with 12-pin underwater connector

    • Cables

      01

      10-m Vectrino  Cable with 12-pin underwater connector RS232 with USB Converter

      02

      20-m Vectrino  Cable with 12-pin underwater connector RS232 with USB Converter

      03

      30-m Vectrino  Cable with 12-pin underwater connector RS232 with USB Converter

      04

      40-m Vectrino  Cable with 12-pin underwater connector RS232 with USB Converter

      05

      50-m Vectrino  Cable with 12-pin underwater connector RS232 with USB Converter

    • Other

      01

      No multiple RS232 to USB converter

      02

      RS232 to USB converter (four-to-one)

      03

      RS232 to USB converter (eight-to-one)
