ACOUSTIC WAVE AND CURRENT PROFILER

AWAC - 1 MHz

Profil de courant et houle directionnelle en zone côtière

Demande de devis
Spécifications techniques
get help

Besoin d’aide? Contactez-nous.

Aperçu

  • L'AWAC 1 MHz est l'instrument de référence pour les mesures de houle à partir du fond. Des milliers d'AWAC ont déjà été déployés à travers le monde pour mesurer la houle directionnelle ainsi que les profils de courant. Avec une portée de 35 m et avec un échantillonnage jusqu'à 4 Hz de la surface, l'AWAC est l'outil de prédilection pour les mesures de courant et de houle en zone côtière.

Points forts

  • Mesure des profils de courant jusqu'à une portée de 30 m
  • Mesure de la houle directionnelle jusqu'à une immersion de 35 m
  • Tracking acoustique de la surface (AST) avec un faisceau vertical
  • Peut être utilisé sur des structures fixes ou des bouées de subsurface

Applications

  • Mesure temps réel du courant et de la houle
  • Aménagement de structures côtières
  • Étude de sites pour champ éolien en mer
  • Étude érosion côtière
  • Campagne de mesures où le spectre directionnel total de houle est souhaité
  • Étude d'agitation en milieu portuaire
  • Étude des courants de marée

    • Toggle all

    • Water velocity measurements

      Maximum profiling range 30 m
      Cell size 0.25-4.0 m
      Number of cells Typical 20-40, max. 128
      Velocity range ±10 m/s horizontal, ±5 m/s along beam
      Accuracy ±1% of measured value ±0.5 cm/s
      Velocity precision Consult instrument software
      Maximum output rate 1 Hz
      Internal sampling rate 7 Hz

    • Echo intensity (along slanted beams)

      Sampling Same as velocity
      Resolution 0.45 dB
      Dynamic range 90 dB
      Transducer acoustic frequency 1 MHz
      Number of beams 3 beams 120° apart, one vertical beam (90° apart, one at 5° for platform mount)
      Beam width 1.7°
      Beam width vertical beam 1.7°

    • Wave measurement option (AST)

      Maximum depth 35 m
      Data types Pressure, one velocity along each beam, AST
      Sampling rate velocity (output) 2 Hz
      Sampling rate AST (output) 4 Hz
      No. of samples per burst 512, 1024 or 2048

    • Wave estimates

      Range -15 to 15 m
      Accuracy/resolution (Hs) < 1% of measured value / 1 cm
      Accuracy/resolution (Dir) 2° / 0.1°
      Period range 0.5-50 s
      Cut-off period (Hs) 5 m depth: 0.5 sec, 20 m depth: 0.9 sec, 60 m depth: 1.5 sec
      Cut-off period (dir) 5 m depth: 1.5 sec, 20 m depth: 3.1 sec, 60 m depth: 5.5 sec

    • Sensors

      Temperature: Thermistor embedded in housing
      Temp. range -4 to +40 °C
      Temp. accuracy/resolution 0.1 °C/0.01°C
      Temp. time response < 5 min
      Compass: Magnetoresistive
      Accuracy/resolution 2°/0.1° for tilt <15°
      Tilt: Liquid level
      Accuracy/resolution 0.2°/0.1°
      Maximum tilt 30°,AST requires <10° instrument tilt
      Up or Down Automatic detect
      Pressure: Piezoresistive
      Range 50 m
      Accuracy 0.5% of full scale (optional 0.1% of full scale)
      Resolution 0.005% of full scale

    • Analog inputs

      No. of channels 2
      Supply voltage to analog output devices Three options selectable through firmware commands: Battery voltage/500 mA, +5V/250 mA, +12V/100 mA
      Voltage input 0-5 V
      Resolution 16-bit A/D

    • Data Recording

      Capacity 9 MB standard, 4/16 GB (Prolog)
      Profile record Ncells*9 + 120 bytes
      Wave record Nsamples*24 + 1k bytes
      Mode Stop when full (default and Prolog) or wrap mode

    • Real Time Clock

      Accuracy ±1 min/year
      Backup in absence of power 1 year

    • Data Communications

      I/O RS-232 or RS-422. Software supports most commercially available USB– RS-232 converters
      Communication baud rate 300- 115200 Bd
      Recorder download baud rate 600/1200 kBd for both RS-232 and RS-422
      User control Handled via "AWAC AST" software, or ActiveX® controls. "Seastate" for online systems
      Output formats NMEA, Binary. Prolog provides same types also for processed wave and current data.

    • Connectors

      Bulkhead MCBH-2-FS, MCBH-8-FS, optional Souriau M-series metal connector for online use
      Cable PMCIL-8-MP on 10 m polyurethane cable, metal connector optional

    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion. (for Windows®)

    • Power

      DC input 9- 18V DC
      Maximum peak current 3 A
      Avg. power consumption 0,65 W
      Sleep current < 100 μA
      Transmit power 1-30W, 3 adjustable levels

    • Environmental

      Operating temperature -4 to +40 °C
      Storage temperature -20 to +60 °C
      Shock and vibration IEC 721-3-2
      EMC approval IEC 61000
      Depth rating 300m

    • Materials

      Standard model POM and polyurethane plastics with titanium fasteners

    • Dimensions

      Maximum diameter 210 mm
      Maximum length 175 mm

    • Weight

      Weight in air 6.1 kg
      Weight in water 2.9 kg

    • Online cable

      Polyurethane jacket, Shore D hardness, 13mm in diameter, max 2km. Inquire for longer cables

    • Toggle all

    • Technical drawings

      AWAC 1MHz General Arrangement-2 - NGA009-001 Rev.-

      Download this

    • Approvals

      Declaration of conformity

      Download this

    • Toggle all

    • Main product

      01

      AWAC 1 MHz, four beams

    • Probe type / Head

      01

      Symmetrical transducer orientation

      02

      Platform head

    • Memory

      01

      9 MB of memory on motherboard (M8)

      02

      4 GB SD card data logger

      03

      16 GB SD card data logger

      04

      ProLog with wave processing

    • Pressure sensors

      01

      Pressure sensor, 0-10 m

      02

      Pressure sensor, 0-20 m

      03

      Pressure sensor, 0-20m, accuracy 0,1% of FS

      04

      Pressure sensor, 0-30 m

      05

      Pressure sensor, 0-50 m

      06

      Pressure sensor, 0-50m, accuracy 0,1% of FS

      07

      Pressure sensor, 0-100 m

      08

      Pressure sensor, 0-100m, accuracy 0,1% of FS

      09

      Pressure sensor, 0-200m

    • Cables

      01

      10m RS232 polyurethane cable with 8-pin inline connector and USB converter

      02

      20m RS232 polyurethane cable with 8-pin inline connector and USB converter

      03

      30m RS232 polyurethane cable with 8-pin inline connector and USB converter

      04

      40m RS232 polyurethane cable with 8-pin inline connector and USB converter

      05

      50m RS232 polyurethane cable with 8-pin inline connector and USB converter

      06

      10m RS422 polyurethane cable with 8-pin inline connector and USB converter

      07

      20m RS422 polyurethane cable with 8-pin inline connector and USB converter

      08

      30m RS422 polyurethane cable with 8-pin inline connector and USB converter

      09

      40m RS422 polyurethane cable with 8-pin inline connector and USB converter

      010

      50m RS422 polyurethane cable with 8-pin inline connector and USB converter

    • Other

      01

      Compass and tilt sensor

      02

      Without compass and tilt sensor

Contenu associé

All bodies of water have waves. These may range from long waves, such as tides (caused by the gravitational force of the Sun and Moon), to tiny wavelets, generated by the wind’s drag on the water surface.

New to waves?

Wiki
AWAC tell-tale deployment

AWAC tell-tale deployment

Video

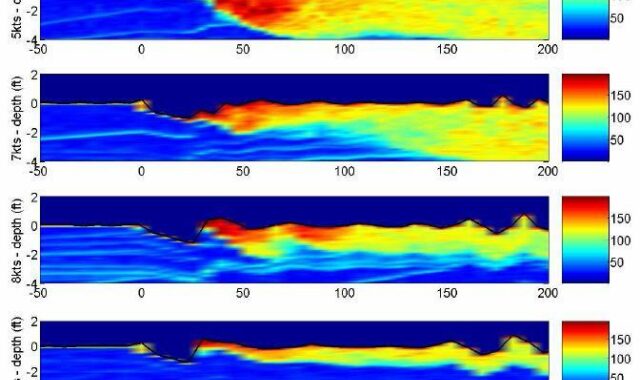

AWAC used for wave measurement in ship wake study
