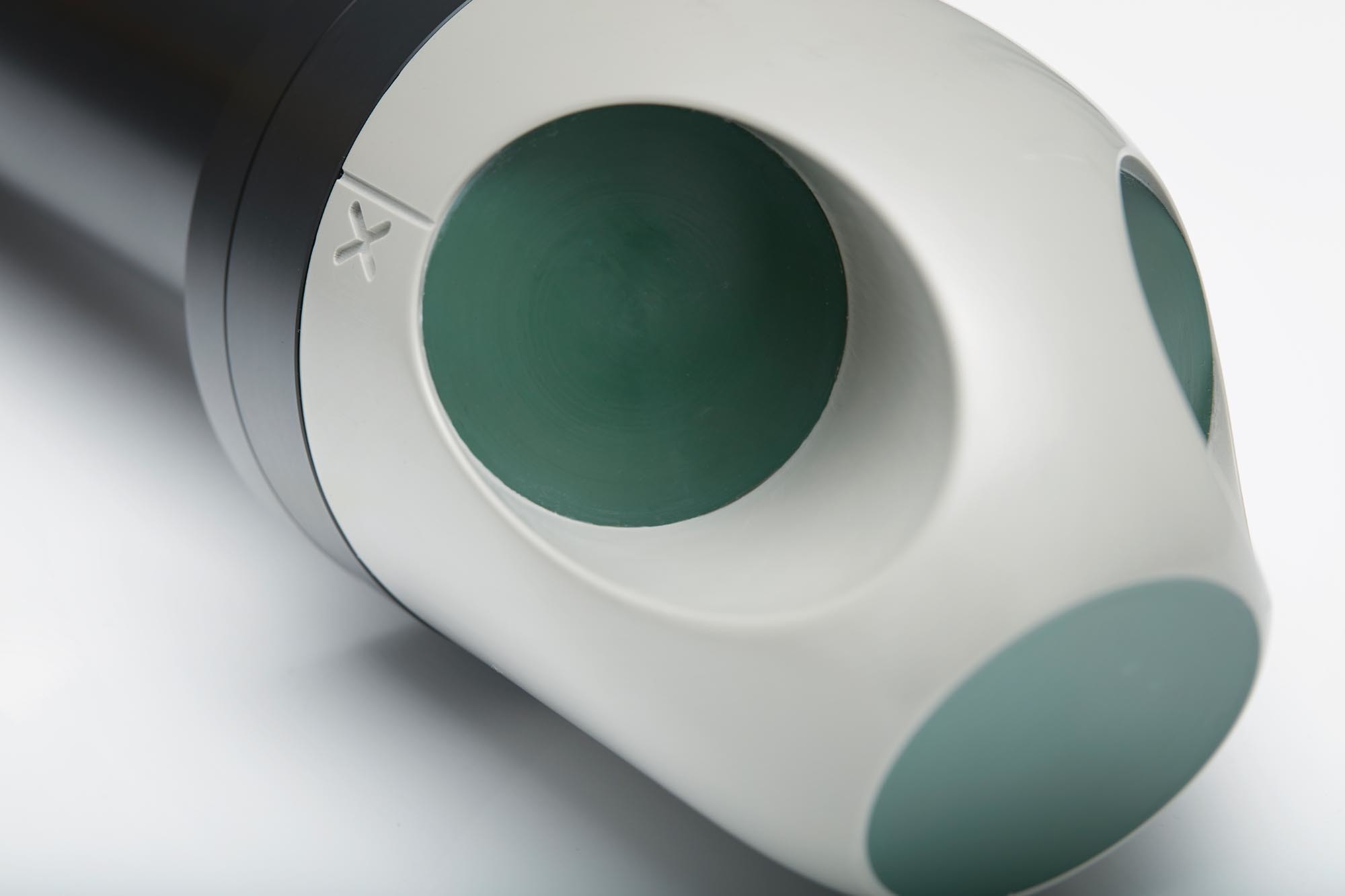

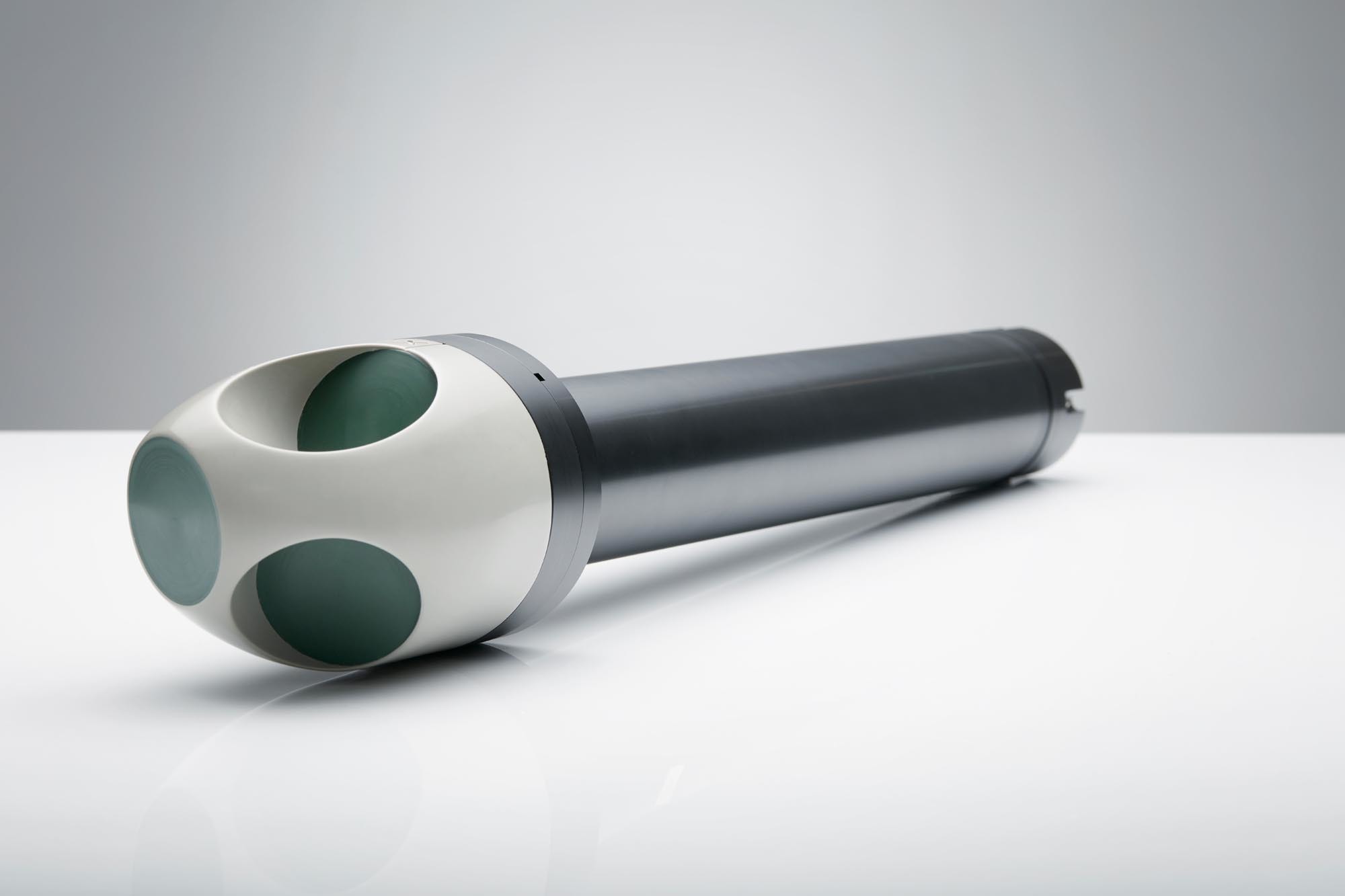

Overview
The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in four profiling range options, from < 1 m to > 90 m. Designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.
- Currents
Highlights
-
Up to 90 m current profiling range
-
Ideal for mean current measurements
-
Easy to operate and deploy
Usage
-
Mean flow measurements with high focus on ease of use and simplicity
-
Measurements in flow regimes with strong variations in flow speeds
-
Studies of tidal currents
-
Measurements of combinations of waves and currents
-
Mounted on surface buoys
-
Suitable for wave buoys
Setup
The 400kHz Aquadopp Profiler, designed for straightforward current measurements at up to a 90m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements. It offers the longest profiling range of the Aquadopp Profiler family.
Deployment

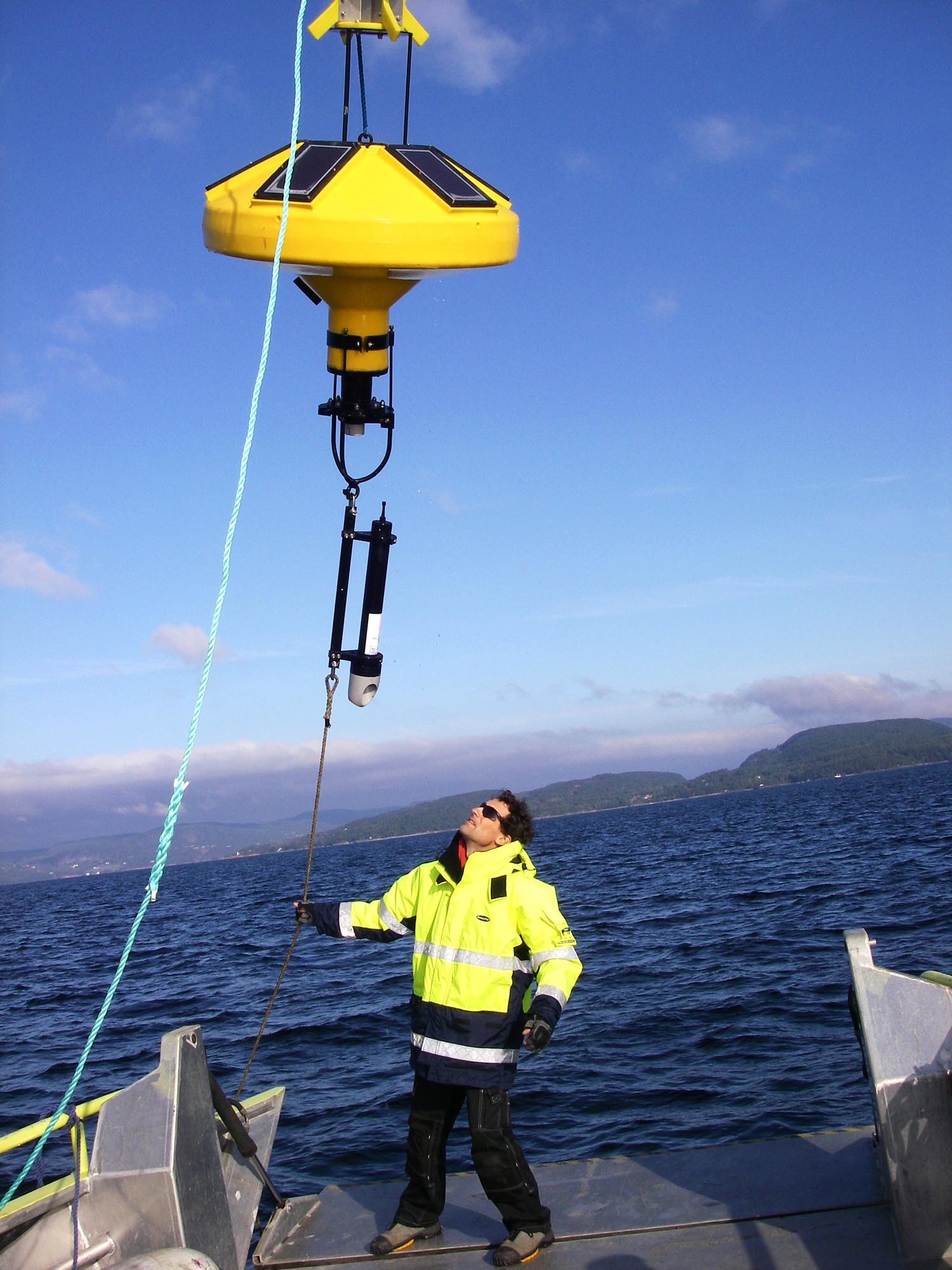

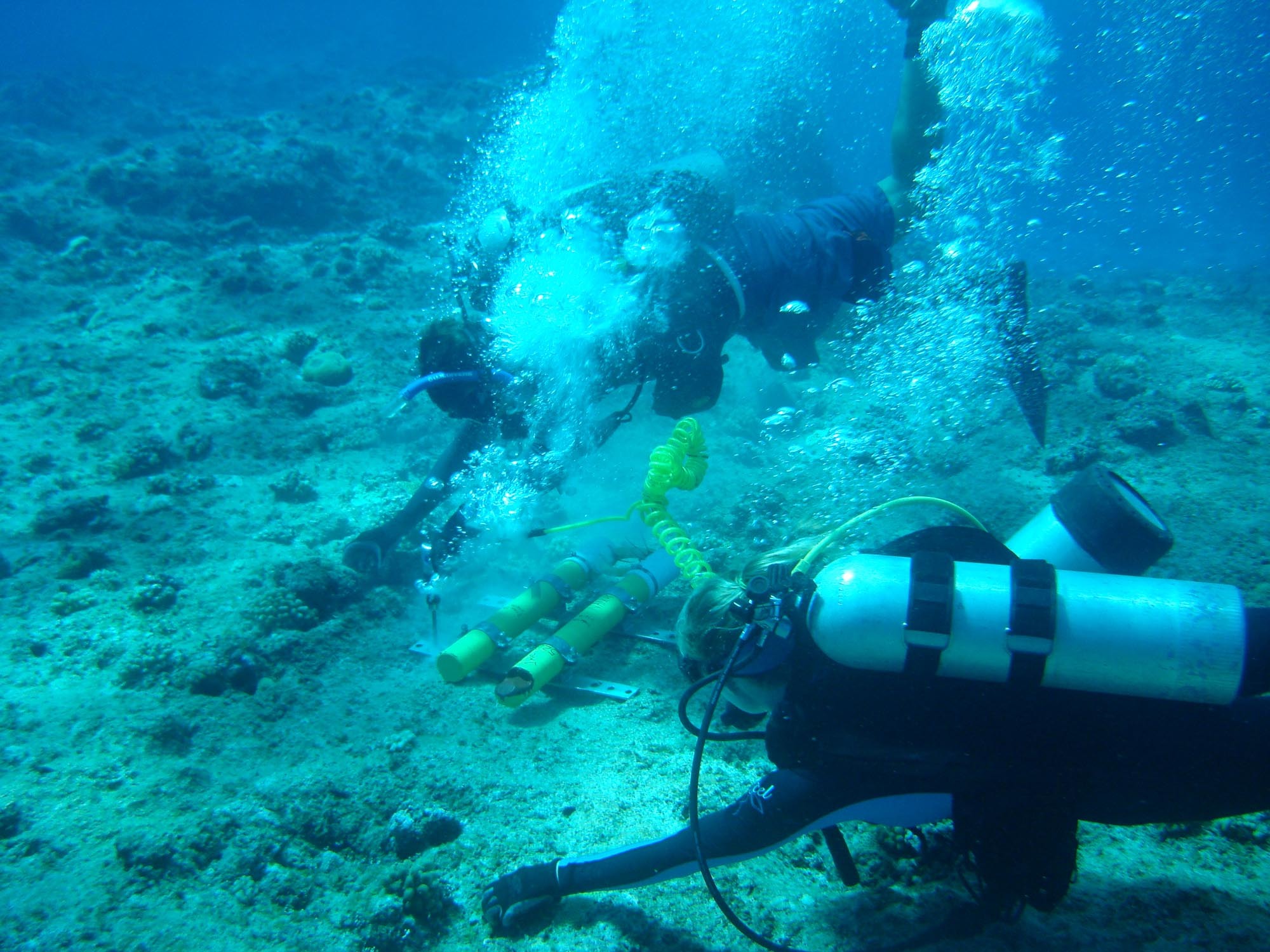

Teams of all sizes can deploy an Aquadopp Profiler successfully thanks to its compact size and flexible deployment options. Buoy, bottom frame and inline setups from Nortek and leading industry partners are available specifically for the instrument.
Data
Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.
| Maximum profiling range | 60-90 m |
| Cell size | 1-8 m |
| Minimum blanking | 1 m |
| Maximum number of cells | 128 |
| Measurement cell position | N/A |
| Default position (along beam) | N/A |
| Velocity range | ±10 m/s |
| Accuracy | ±1% of measured value ±0.5 cm/s |
| Velocity precision | Consult instrument software |
| Maximum sampling rate (output) | 1 Hz |
| Internal sampling rate | 3 Hz |
| Sampling | Same as velocity |
| Resolution | 0.45 dB |
| Dynamic range | 90 dB |
| Transducer acoustic frequency | 400 kHz |
| Number of beams | 3 |
| Beam width | 3.7° |
| Maximum profiling range | N/A |
| Cell size | N/A |
| Minimum blanking | N/A |
| Maximum number of cells | N/A |
| Range/Velocity limitations | N/A |
| Accuracy | N/A |
| Max. sampling rate | N/A |
| Cell zero acoustic frequency | N/A |
| Maximum profiling range | N/A |
| Number of beams | N/A |
| Temperature: | Thermistor embedded in head |
| Temp. range | -4 to +40 °C |
| Temp. accuracy/resolution | 0.1 °C/0.01 °C |
| Temp. time response | 10 min |
| Compass: | Magnetometer |
| Accuracy/resolution | 2°/0.1° for tilt < 20° |
| Tilt: | Liquid level |
| Accuracy/resolution | 0.2°/0.1° |
| Maximum tilt | 30° |
| Up or Down | Automatic detect |
| Pressure: | Piezoresistive |
| Range | 0-100 m (inquire for options) |
| Accuracy/precision | 0.5% FS / 0.005% of full scale |
| No. of channels | 2 |
| Supply voltage to analog output devices | Three options selectable through firmware commands: 1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA |
| Voltage input | 0-5 V |
| Resolution | 16-bit A/D |
| Capacity | 9 MB, can add 4/16 GB |
| Data record | 9*Ncells + 32 bytes |
| Diagnostics record | N/A |
| Wave record | Nsamples * 24 + 60 bytes |
| Mode | Stop when full (default) or wrap mode |
| Accuracy | ±1 min/year |
| Backup in absence of power | 4 weeks |
| I/O | RS-232 or RS-422 |
| Communication baud rate | 300-115200 Bd |
| Recorder download baud rate | 600/1200 kBd for both RS-232 and RS-422 |
| User control | Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binary or ASCII data output |
| Bulkhead | MCBH-8-FS |
| Cable | PMCIL-8-MP on 10m polyurethane cable |
| Functions | Deployment planning, instrument configuration, data retrieval and conversion (for Windows®) |
| DC input | 9-15 V DC |
| Maximum peak current | 3 A |
| Avg. power consumption | 0.1 W |
| Sleep current | < 100 μA |
| Transmit power | 0.3-20 W, 4 adjustable levels |
| Battery capacity | 1) 50 Wh (alkaline or Li-ion), 2) 165 Wh (lithium), 3) Single or dual |
| New battery voltage | 13.5 V DC (alkaline) |
| Operating temperature | -5 to +40 °C |
| Storage temperature | -20 to +60 °C |
| Shock and vibration | IEC 60068-1/IEC60068-2-27/IEC60068-2-64 |
| EMC approval | IEC 61000 |
| Depth rating | 300 m |
| Standard model | POM and polyurethane plastics with titanium fasteners |
| Maximum diameter | 117 mm |
| Maximum length | ~600 mm (single battery), +110 mm (double battery) depending on head configuration |
| Weight in air | 3.4 kg |
| Weight in water | 0.2 kg |
| 1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations |
Aquadopp Profiler 400kHz
400 kHz Standard head - AQP
Standard housing for two batteries or one 100Wh package
Short housing for one battery
Extra short housing for no batteries
9 MB of memory on motherboard (M8)
4 GB SD card data logger
16 GB SD card data logger
Pressure sensor, 0-10 m
Pressure sensor, 0-20 m
Pressure sensor, 0-30 m
Pressure sensor, 0-50 m
Pressure sensor, 0-100 m
Pressure sensor, 0-200m
10m RS232 polyurethane cable with 8-pin inline connector and USB converter
20m RS232 polyurethane cable with 8-pin inline connector and USB converter
30m RS232 polyurethane cable with 8-pin inline connector and USB converter
40m RS232 polyurethane cable with 8-pin inline connector and USB converter
50m RS232 polyurethane cable with 8-pin inline connector and USB converter
10m RS422 polyurethane cable with 8-pin inline connector and USB converter
20m RS422 polyurethane cable with 8-pin inline connector and USB converter
30m RS422 polyurethane cable with 8-pin inline connector and USB converter
40m RS422 polyurethane cable with 8-pin inline connector and USB converter
50m RS422 polyurethane cable with 8-pin inline connector and USB converter
Compass and tilt sensor
Without compass and tilt sensor
Deployment planning, execution and recovery
Also compatible with Z-cell. New features, fixes and functionality
Note. Firmware for legacy systems (pre April 2008) with version numbers starting with 0. or 1.
SD6000 data processing
Data conversion to MATLAB format (*.mat)
Display of profiler data. Can be used in combination with Prof2NDP
Data conversion
Processing of waves
Data processing and ready-to-print reporting software. Request quote for license
Wave and current profile data visualization and processing software for online applications. Request quote for license
Analysis and processing of currents and directional waves. Request quote for license
Analysis and processing of current profiles. Request quote for license
Cable for external battery canister to 8-pin inline connector
Cable RS232 polyurethane with 8-pin inline connector and USB converter
Cable RS422 polyurethane with 8-pin inline connector and USB converter
Battery, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery canister, plastic with 4*18 AA pack w/cable 8-pin inline (300m rating)
Battery pack, 5-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
