Overview

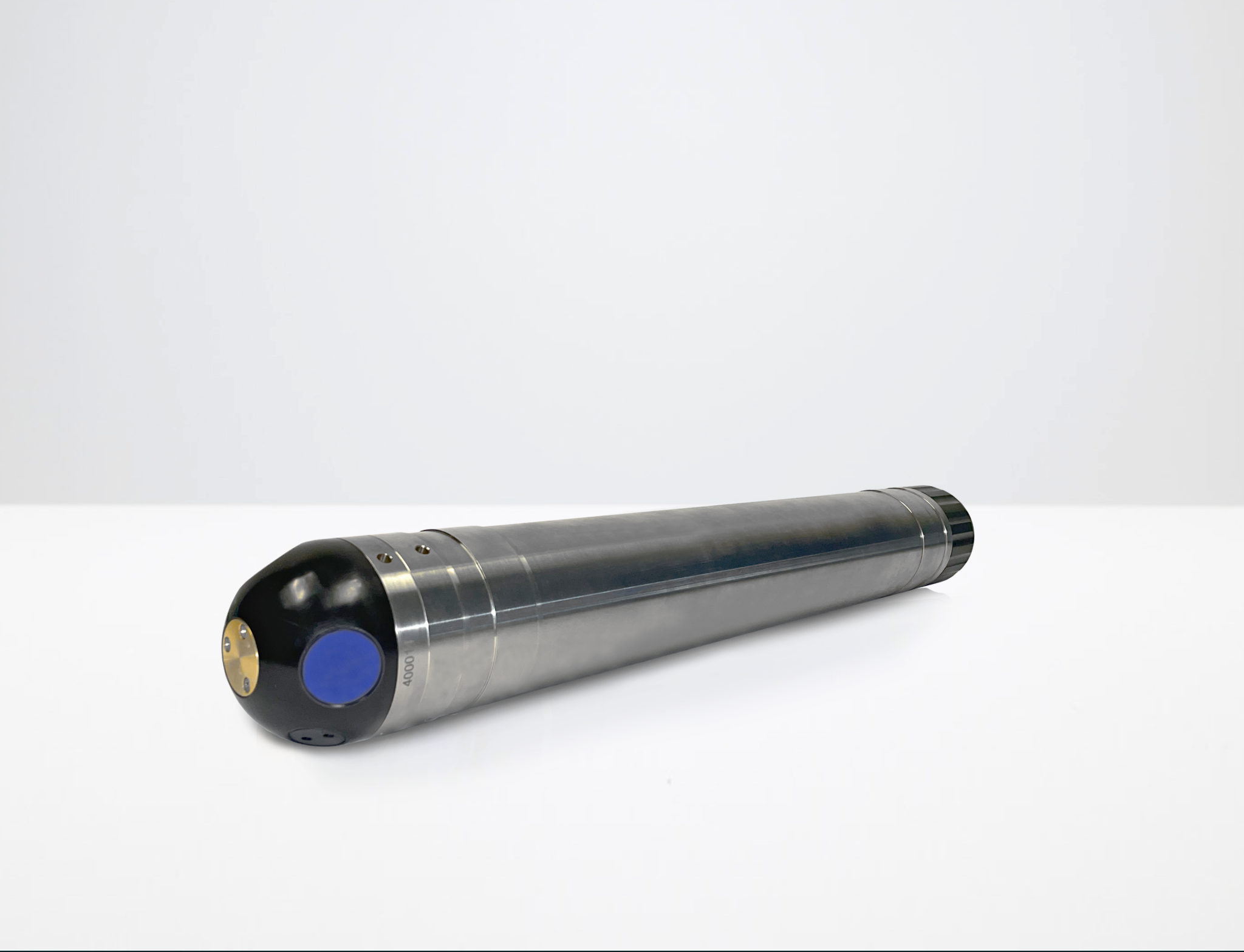

With all the robust and easy-to-use features and capabilities of the standard Aquadopp, the deepwater Aquadopp 6000 m current meter has been used and proven by oceanographers around the world for almost 20 years. Thanks to innovative data diagnostic features for challenging environments, it provides exceptionally high-quality 3D currents in a form factor that is easy to install in any type of mooring line configuration, or simply attached to a bottom or surface platform.
The 6000 m Aquadopp now offers 6% broadband measurements and “hibernation mode” between measurements, enabling precise data collection with lower power consumption. The upgraded deepwater Aquadopp design also offers increased internal battery storage, extending potential deployment duration.
See the details of the Generation 2 Aquadopp updates in the release notes here.
- Currents
Highlights
-
Single-point current meter
-
Titanium housing for long-term deployments at full ocean depth
-
Ideal for deep water moorings
-
LED blinks when pinging for peace of mind during deployment
Usage
-
Studies of deep-water currents
-
Attached to mooring lines
-
Combined with riser monitoring systems
-
Near-bed current measurements from landers
Setup
Nortek deployment software allows users to customize their 600m Aquadopp deployment in a straightforward manner, providing guidance on deployment schemes, battery power and required internal memory.
Deployment
The 6000m Aquadopp is the ideal current meter for deep-water moorings. The instrument is capable of very long-term, unsupported deployments thanks to its low power consumption, internal data collection and ability to run entirely on internal battery power.
Data
Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.
Cell size |
0.75 m |
Maximum number of cells |
1 |
Distance to measurement |
1.0-6.0 m (user-selectable) |
Velocity range |
±1 m/s, ±2.5 m/s, ±5 m/s |
Velocity range (horizontal) |
±2.3 m/s, ±5.75 m/s, ±11.5 m/s |
Accuracy |
±1% of measured value ±0.5 cm/s |
Horizontal velocity precision (consult instrument SW) |
Typ. 1 cm/s |
Maximum sampling rate (output) |
1 Hz |
Sampling |
Same as velocity |
Resolution |
0.5 dB |
Dynamic range |
90 dB |
Transducer acoustic frequency |
2 MHz |
Number of beams |
3 (see GA drawing for angles) |
Beam width |
0.85° (1.7° total) |
Temperature: |
|
Temp. range |
-4 to +40 °C |
Temp. accuracy/resolution |
0.1 °C/0.01 °C |
Temp. time response |
<1 min |
Compass: |
Solid state magnetometer |
Accuracy/resolution |
<2° for tilt < 30° / 0.01° |
Tilt: |
Solid state accelerometer |
Accuracy/resolution |
0.2° for tilt < 30° / 0.01° |
Maximum tilt |
Full 3D |
Up or Down |
Automatic detect |
Pressure: |
Piezoresistive |
Range |
6000 m |
Accuracy/precision |
0.5% FS / 0.005% of full scale |
No. of channels |
1 |
Digital input format |
MicroCat CTD |
Capacity |
16 GB |
Accuracy |
±1 min/year |
Backup in absence of power |
4 weeks |
I/O |
RS-422 (inquire for RS-232) |
Communication baud rate |
9600 Baud- 1.2 Mbaud (default 115200 Baud) |
User control |
Nortek Deployment Software or direct ASCII commands, with binary or ASCII data output |
Operating system |
Cross platform |
Functions |
Deployment planning, instrument configuration, data retrieval and conversion. Online data display. |
DC input |
9-24 VDC |
Absolut maximum DC input |
26 VDC |
Maximum peak current |
4.5 A |
Power consumption |
Consult Nortek Deployment Software |
Sleep current |
< 40 uA |
Transmit power |
Adjustable |
Internal battery capacity |
1-3 x 50 Wh (Alkaline); 2-3 x 165 Wh (Lithium); 1-3 x 76 Wh (Li-ion) |
Battery weight |
430g per 50 Wh (Alkaline); 380g per 165 Wh (Lithium); 300g per 76 Wh (Li-ion) |
Operating temperature |
-5 to +40 °C |
Storage temperature |
-20 to +60 °C |
Shock and vibration |
Shock: IEC 60068-2-27, Vibration: IEC 60068-2-64 |
EMC |
EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019 |
Depth rating |
6000m |
Bulkhead (Impulse) |
MCBH-8-FS titanium |
Cable |
PMCIL-8-MP on 5m (default) polyurethane cable |
Standard model |
Titanium Gr. 5, POM, Naval Brass, epoxy |
Maximum housing diameter |
84 mm |
Maximum length |
623 mm |
Weight in air (without batteries) |
7600 g |
Weight in water (without batteries) |
4350 g |
D2VC |
Deep water, 2Mhz, Vertical orientation, Current meter |
Aquadopp, 6000 m depth rating
Pressure sensor 0-6000 m (6000-m system)
5m PMCIL-8-MP Serial cable for Aquadopp 2
10m PMCIL-8-MP Serial cable for Aquadopp 2
20m PMCIL-8-MP Serial cable for Aquadopp 2
30m PMCIL-8-MP Serial cable for Aquadopp 2
40m PMCIL-8-MP Serial cable for Aquadopp 2
50m PMCIL-8-MP Serial cable for Aquadopp 2
