Overview

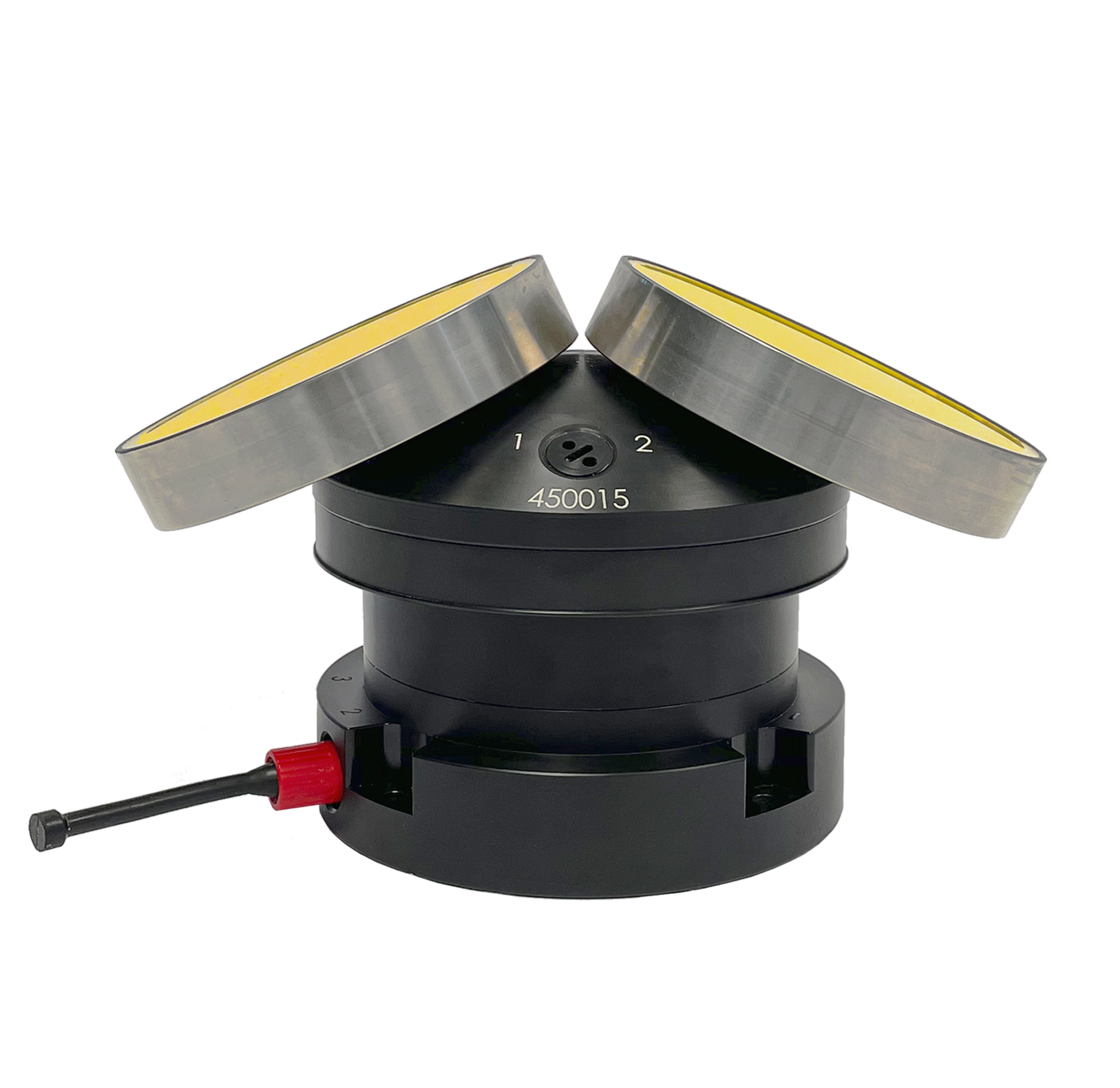

The 2D Horizontal Profiler is the ideal tool for current measurements from a physical structure in, for example, port entrances. This ADCP provides the two horizontal flow components at multiple distances from the mounting and is commonly used in online applications where immediate access to current data is critical.
This instrument can also be used to perform river discharge measurements by River Insight.
- Currents
Highlights
-
Up to 30 m horizontal profiling range
Usage
-
Horizontal current profiles in shallow water
-
This instrument is used to perform river discharge measurements by River Insight
Setup
The 2D Horizontal Profiler is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements.
Deployment
The 2D Profiler can be mounted on any subsurface structure. It provides real-time current information via a variety of telemetry options.
Data
The 2D Horizontal Profiler provides users with the two horizontal components of flow at different distances away from the structure it is mounted on. These data are often retrieved in real time.
Maximum profiling range* |
30 m |
Cell size |
0.25 - 4.0 m |
Number of cells |
Typical 20-40, max. 160 |
Velocity range (along beam) |
User-selectable 1.0 to 5.0 m/s |
Accuracy |
±1% of measured value ±0.5 cm/s |
Velocity precision |
Consult instrument software |
Maximum output rate |
1 Hz |
Internal sampling rate |
4 Hz |
*Dependent on measurement conditions |
Sampling |
Same as velocity |
Resolution |
0.5 dB |
Dynamic range |
90 dB |
Transducer acoustic frequency |
1 MHz |
Number of beams |
2, slanted at 25° |
Beam width |
0.75° (1.5° total) |
Beam width vertical beam |
N/A |
Maximum depth |
N/A |
Data types |
N/A |
Sampling rate velocity (output) |
N/A |
Sampling rate AST (output) |
N/A |
No. of samples per burst |
N/A |
Range |
N/A |
Accuracy/resolution (Hs) |
N/A |
Accuracy/resolution (Dir) |
N/A |
Period range |
N/A |
Cut-off period (Hs) |
N/A |
Cut-off period (dir) |
N/A |
Temperature: |
Thermistor in head |
Temp. range |
-4 to +40 °C |
Temp. accuracy/resolution |
0.1 °C/0.01 °C |
Temp. time response |
< 1 min |
Compass: |
Solid state magnetometer |
Accuracy/resolution |
<2° for tilt <30° / 0.01° |
Tilt: |
Solid state accelerometer |
Accuracy/resolution |
0.2° for tilt <30° /0.01° |
Maximum tilt |
Full 3D |
Up or Down |
Automatic detect |
Pressure: |
Piezoresistive |
Range |
30 m |
Accuracy / precision |
0.5% FS / 0.005% of full scale |
Capacity |
16 GB |
Accuracy |
±1 min/year |
Backup in absence of power |
4 weeks |
Ethernet |
N/A |
Serial I/O |
Configurable RS-232 or RS-422 |
Serial communication baud rate |
9600-115200 Baud |
Controller interface |
ASCII command interface |
Output formats |
Binary, NMEA or ASCII data output. See Integration Manual |
Bulkhead (Impulse) |
Brass female 8pin MCBH connector |
Cable |
PMCIL-8-MP on 10 m polyurethane cable/* |
/*TBC |
Functions |
MIDAS software for configuration and display/* |
/*Contact your local sales office for access |
DC input |
9-24 VDC |
Absolute maximum DC input |
26 VDC |
Maximum peak current |
4.5 A |
Sleep current |
< 40 μA |
Transmit power |
Maximum 45 W, adjustable |
Operating temperature |
-5 to +40 °C |
Storage temperature |
-20 to +60 °C |
Shock and vibration |
IEC 721-3-7 |
EMC approval |
IEC 61000 |
Depth rating |
30 m |
Standard model |
Delrin® and polyurethane plastics with titanium screws |
Maximum diameter |
75 mm |
Maximum length (S1SH) |
474 mm |
Maximum length (S1VH) |
389 mm |
Weight in air |
8.8 kg |
Weight in water |
3.2 kg |

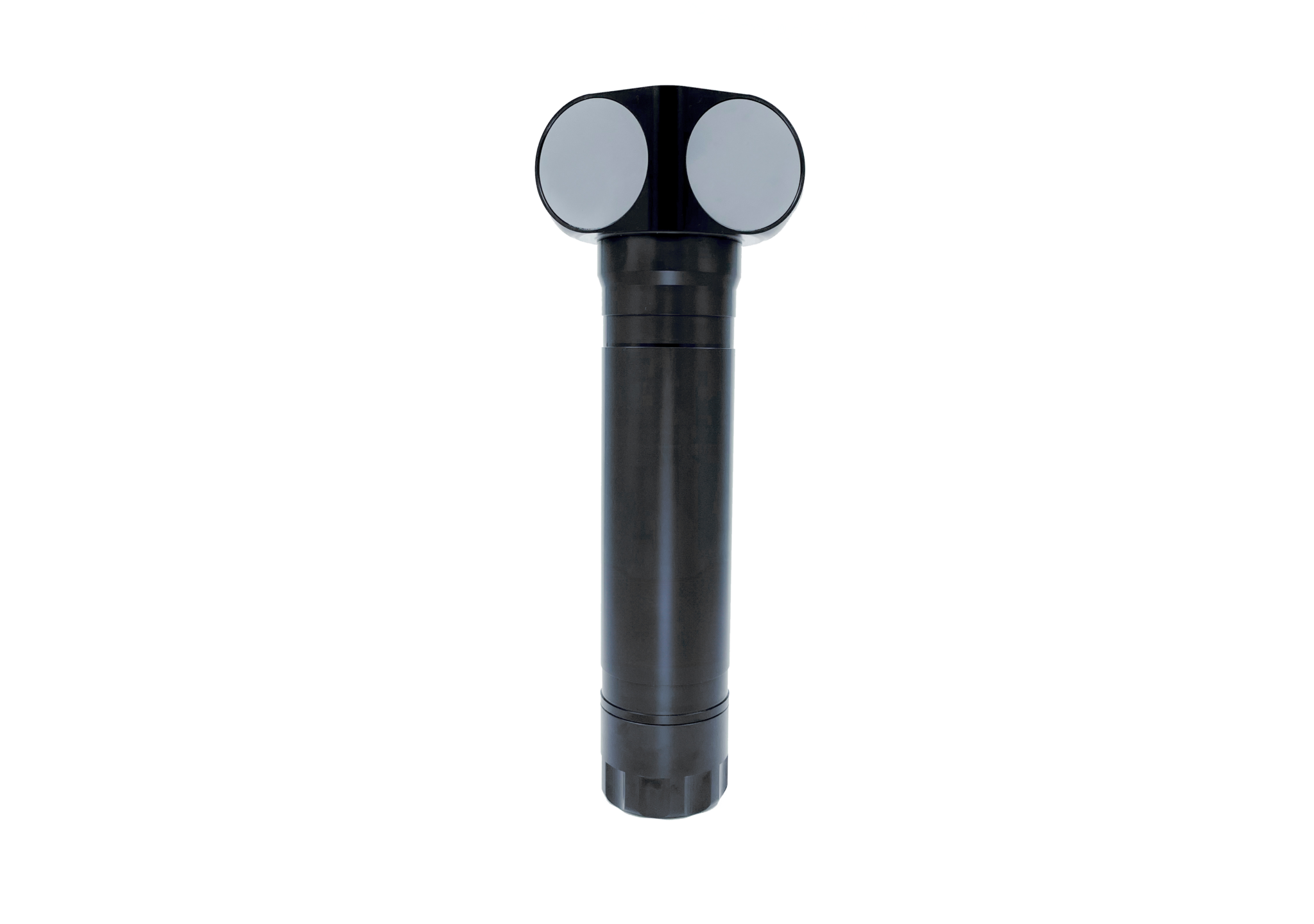

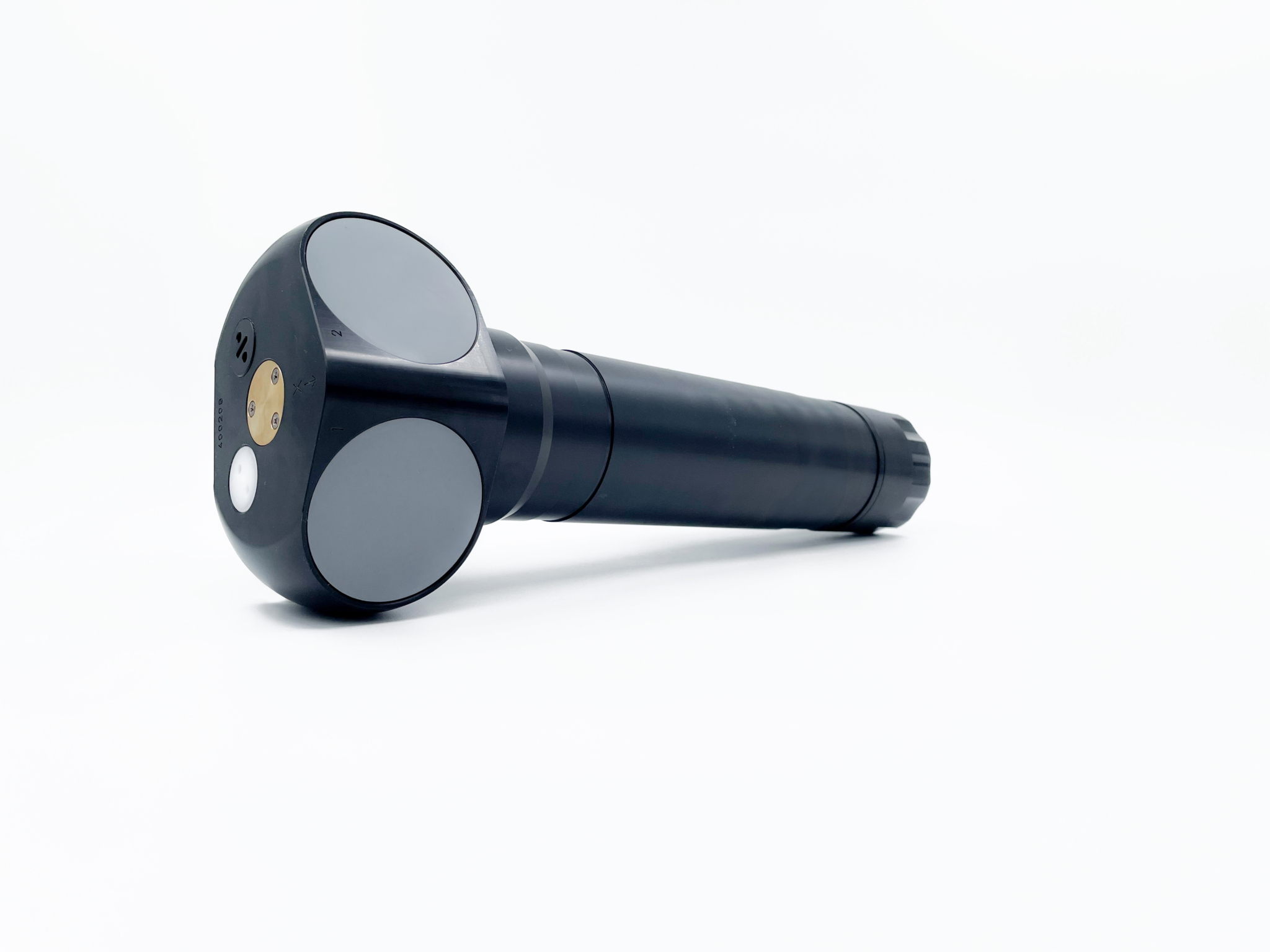

2D Horizontal Profiler 1 MHz, two beams
