Overview
The Vector is a high-accuracy single-point current meter that is capable of acquiring 3D velocity in a very small volume at rates up to 64 Hz. It is widely used for sediment transport applications, small-scale turbulence measurements and coastal engineering studies. It has an excellent track record of delivering outstanding data quality in a variety of applications. This titanium version of the Vector is suitable for investigating deep-water currents down to depths of 4000 m.
- Currents
- Turbulence
Highlights
-
Small-scale turbulence
-
Sampling up to 64 Hz
-
Small sampling volume for measurements close to boundaries
Usage
-
Studies of bottom boundary layers
-
Studies of deep-water currents
-
Low flow measurements
Setup
This 4000m-rated velocimeter is set up using the Nortek deployment software, where users can customize their measurement schemes and sampling rates.
Deployment
Designed for small-scale turbulence sampling or collecting measurements near boundaries and in deep water, the small size of the Generation 2 Vector velocimeter offers flexible deployment setups. This instrument requires an external battery canister for power.
Data
The Vector provides precise, rapid velocity measurements from a very small sampling volume of water. Users can resolve small-scale turbulence events and measure in areas traditionally difficult for ADCPs.
Distance from probe |
0.15 m |
Sampling volume diameter |
15 mm |
Sampling volume height |
8 mm |
Velocity range |
±0.01, 0.1, 0.3,1, 2, 4, 7 m/s (software-selectable) |
Accuracy |
±0.5% of measured value ±1 mm/s |
Velocity precision |
typ. 1% of velocity range (at 16 Hz) |
Sampling rate (output) |
1-64 Hz |
Internal sampling rate |
1-703 Hz |
Acoustic frequency |
6 MHz |
Resolution |
0.01 dB |
Dynamic range |
84 dB |
Temperature |
Temperature sensor in probe head |
Temp. range |
-4 to +40 °C |
Temp. accuracy/resolution |
0.1 °C/0.01 °C |
Temp. time response |
10 min |
Compass |
Magnetometer |
Accuracy/resolution |
2º/0.1º for tilt < 30° |
Tilt |
Solid state, full 3D |
Accuracy/resolution |
0.2°/0.01° |
Maximum tilt |
Full 3D |
Pressure |
Piezoresistive |
Range |
0-4000 m (inquire for options) |
Accuracy/precision |
0.5% FS / Better than 0.005% of full scale |
No. of analog channels |
None |
Digital channels |
1x RS485 or RS232/* |
Supply voltage to external sensors |
Fixed 5V or 12V |
/*Pyroscience AquapHOx soon supported |
Capacity (standard): |
16 / 64 / 128 / 256 GB SD card |
Accuracy |
±1 min/year |
Backup in absence of power |
4 weeks |
I/O |
RS-422 or Ethernet, user-selectable |
Communication baud rate |
115200-921600 Bayd |
Recorder download baud rate |
Fast Ethernet 100BASE-TX (90s per GB) |
User control |
Nortek Deployment SW |
Synchronization |
Trigg/sync A and B (RS485). Sync in/sync out. |
Bulkhead (Impulse) |
MCBH-8-FS + MCBH-6-FS for communication and external sensor |
Cable |
PMCIL-8-MP on 5 m polyurethane cable (inquire for options) |
Functions |
Nortek Deployment SW, instrument configuration, live display, export to ASCII and MATLAB. Data view in Nortek Insight |
DC input |
9-24 V DC |
Maximum peak current |
2 Amp |
Max. consumption |
2.7 W at 64 Hz |
Typical consumption, 4 Hz |
2 W |
Sleep consumption |
< 150 μA |
Transmit power |
Adjustable 12 dB in 1 dB steps |
Battery capacity |
External battery pack: 50 Wh Alkaline (4x), 76 Wh Li-ion (4x), 165 Wh lithium (4x) |
Data collection capacity |
Refer to planning section in software |
Operating temperature |
-4 to +40 °C |
Storage temperature |
-20 to +60 °C |
Vibration |
IEC 60068-2-64, IEC 60068-2-27 |
Depth rating |
4000 m |
Standard model |
Titanium housing, titanium probe and screws |
Maximum diameter |
48 mm |
Maximum length |
263 mm total |
Weight in air |
1000 g (instrument only) |
Weight in water |
600 g (instrument only) |
Distance measurements |
Not yet released |

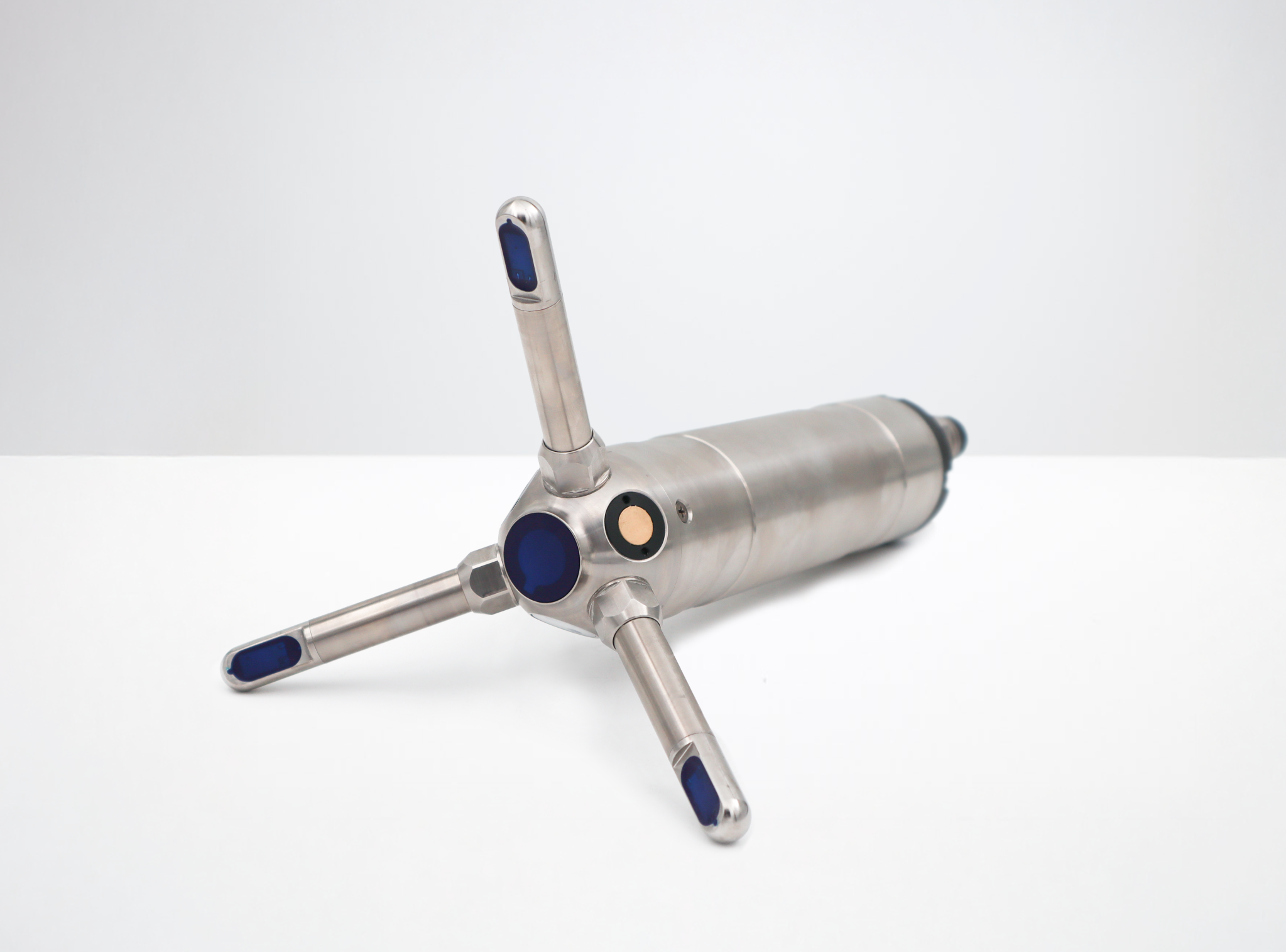

Vector, 4000m depth rating
