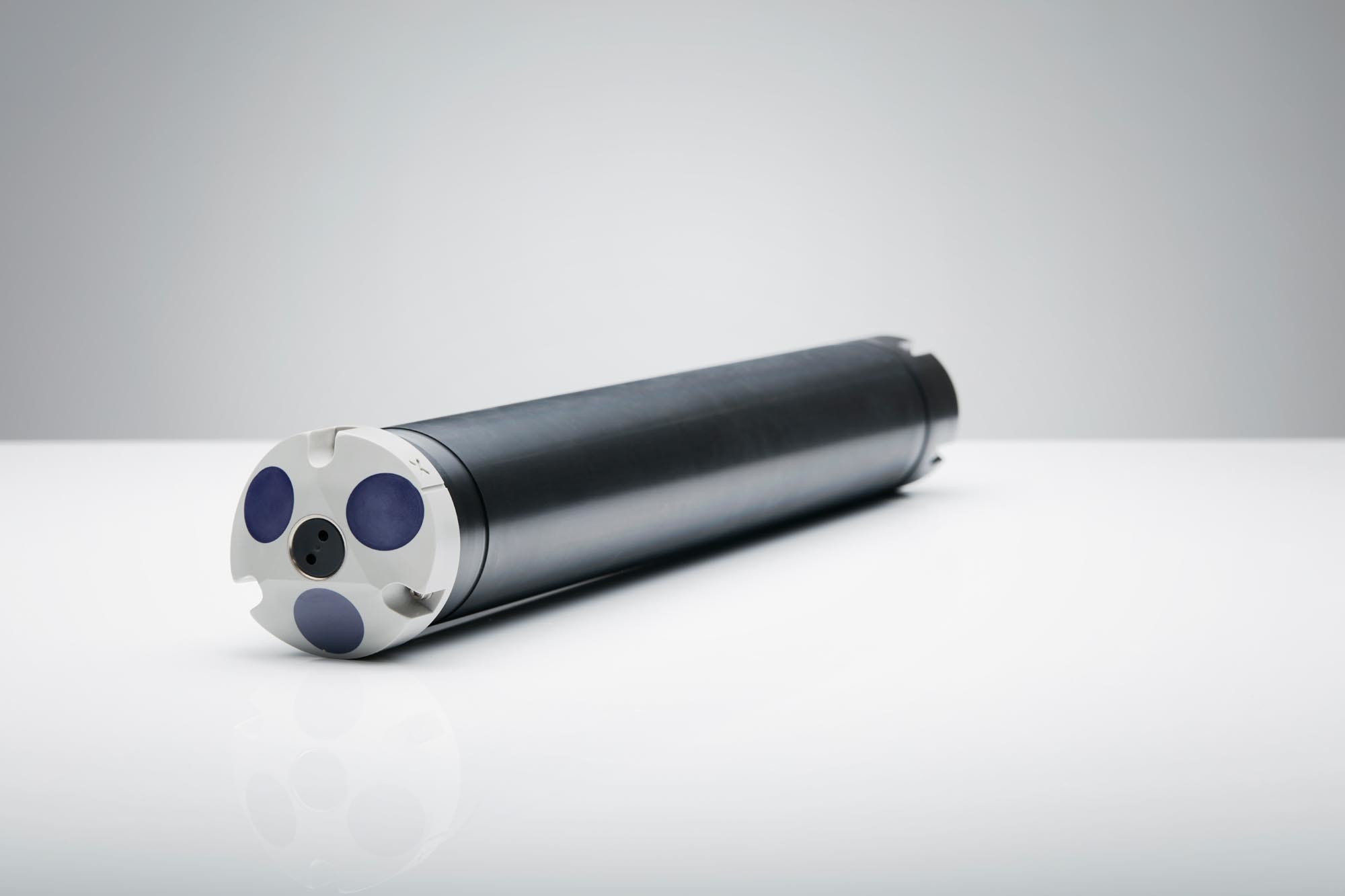

Nortek Aquadopp Profiler 2 Mhz Sideview
Nortek 30097906539 2

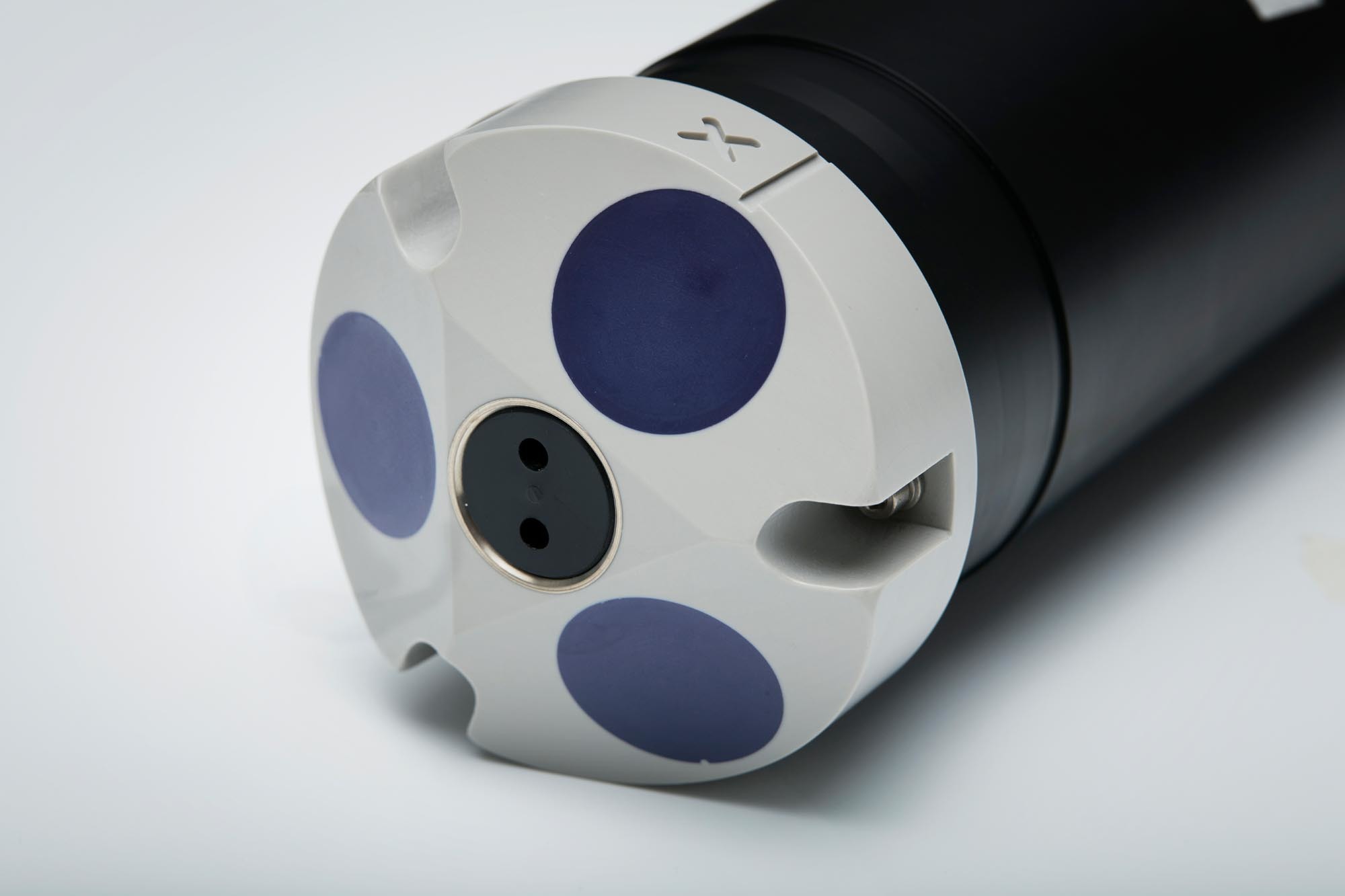

Nortek Aquadopp profiler 2 M Hz closeup

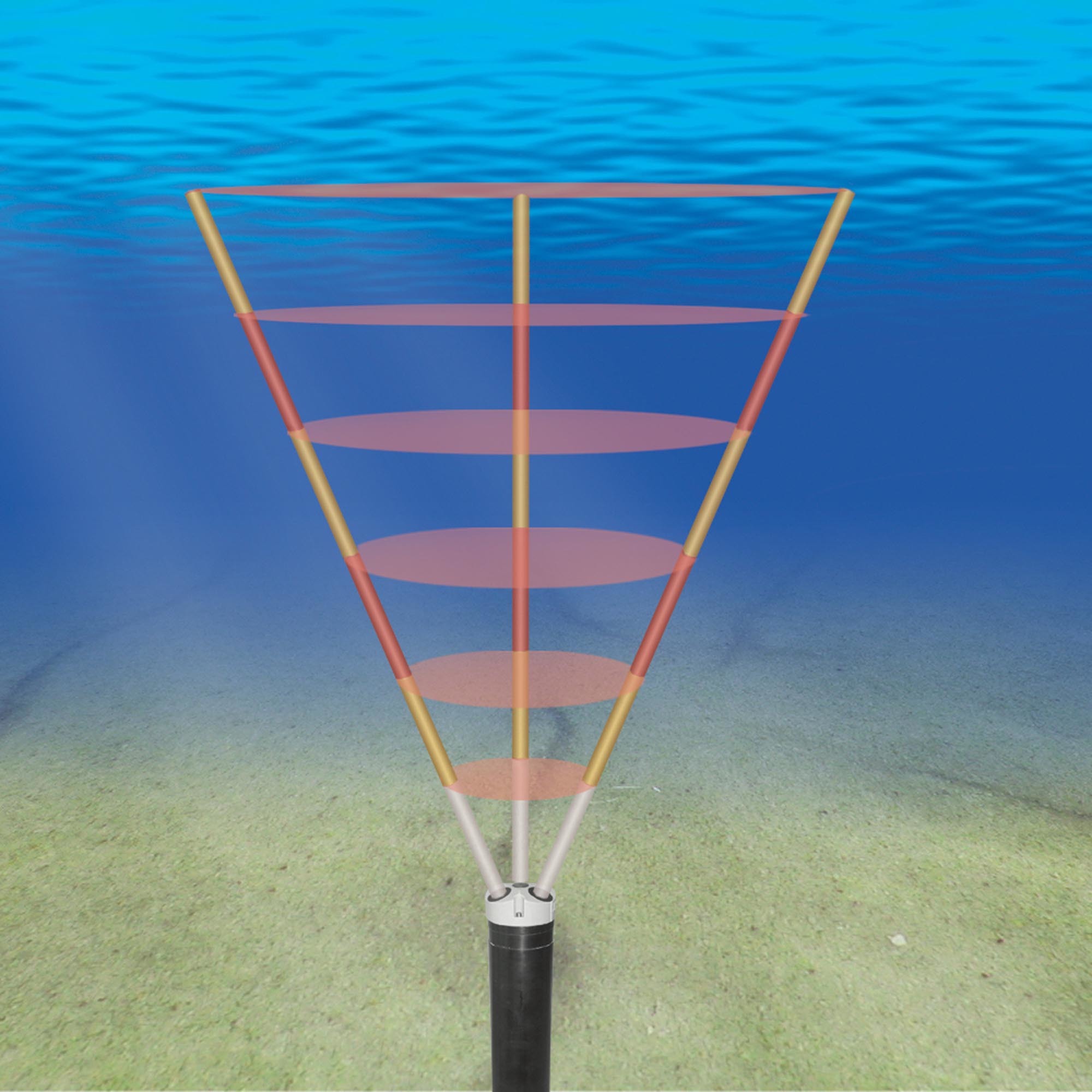

Nortek Aquadopp profiler 2 M Hz topview
Nortek Aquadopp Profiler 2 Mhz Sideview Nortek 30097906539 2 Nortek Aquadopp profiler 2 M Hz closeup Nortek Aquadopp profiler 2 M Hz topview

CURRENT PROFILER

Aquadopp Profiler 2 MHz

Small and compact, short-range current profiling; option for PUV wave measurements

  • Up to 10 m current profiling range
  • Optional right-angle head
  • PUV-based directional wave measurements
Request a quote
Technical specification (PDF)
get help

Need Help? Get in touch.

Overview

  • The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in four profiling range options, from < 1 m to > 85 m. The 2 MHz version has a current profiling range of up to 10 m. Designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.

    This instrument is used to perform river discharge measurements by River Insight.

Highlights

  • Up to 10 m current profiling range
  • Optional right-angle head
  • PUV-based directional wave measurements

Applications

  • Near-bed current profiles with fine vertical resolution
  • Mean flow measurements with high focus on ease of use and simplicity
  • Measurements in flow regimes with strong variations in flow speeds
  • Projects with needs for both high-resolution and normal-range current measurements
  • Measurements of combinations of waves and currents
  • Studies of deep-water currents
  • Studies of tidal currents
  • Mounted on surface buoys
  • Suitable for wave buoys

    • Toggle all

    • Water velocity measurements

      Maximum profiling range 4-10 m
      Cell size 0.1-2 m
      Minimum blanking 0.05 m
      Maximum number of cells 96
      Measurement cell position N/A
      Default position (along beam) N/A
      Velocity range ±10 m/s
      Accuracy ±1% of measured value ±0.5 cm/s
      Velocity precision Consult instrument software
      Maximum sampling rate(output) 1 Hz
      Internal sampling rate 23 Hz

    • Echo intensity (along slanted beams)

      Sampling Same as velocity
      Resolution 0.45 dB
      Dynamic range 90 dB
      Transducer acoustic frequency 2 MHz
      Number of beams 3
      Beam width 1.7°

    • HR option

      Maximum profiling range 3 m
      Cell size 7-150 mm
      Minimum blanking 0.03 m
      Maximum number of cells 128
      Range/Velocity limitations Product of profiling range and velocity should not exceed 0.5 m2/s (2 MHz system)
      Accuracy ±1% of measured value ±0.5 cm/s
      Max. sampling rate 1 Hz (continuous mode, )8 Hz (burst mode)”

    • Z-Cell option

      Cell zero acoustic frequency N/A
      Maximum profiling range N/A
      Number of beams N/A

    • Sensors

      Temperature: Thermistor embedded in head
      Temp. range -4 to +40 °C
      Temp. accuracy/resolution 0.1 °C/0.01 °C
      Temp. time response 10 min
      Compass: Magnetometer
      Accuracy/resolution 2°/0.1° for tilt < 20°
      Tilt: Liquid level
      Accuracy/resolution 0.2°/0.1°
      Maximum tilt 30°
      Up or Down Automatic detect
      Pressure: Piezoresistive
      Range 0-100 m (inquire for options)
      Accuracy/precision 0.5% FS / 0.005% of full scale

    • Analog inputs

      No. of channels 2
      Supply voltage to analogoutput devices Three options selectable through firmware commands: 1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA
      Voltage input 0-5 V
      Resolution 16-bit A/D

    • Data recording

      Capacity 9 MB, can add 4/16 GB
      Data record 9*Ncells + 32 bytes
      Diagnostics record N/A
      Wave record Nsamples * 24 + 60 bytes
      Mode Stop when full (default) or wrap mode

    • Real-time clock

      Accuracy ±1 min/year
      Backup in absence of power 4 weeks

    • Data communications

      I/O RS-232 or RS-422
      Communication baud rate 300-115200 Bd
      Recorder download baud rate 600/1200 kBd for both RS-232 and RS-422
      User control Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binary or ASCII data output

    • Connectors

      Bulkhead MCBH-8-FS
      Cable PMCIL-8-MP on 10 m polyurethane cable

    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®)

    • Power

      DC input 9-15 V DC
      Maximum peak current 3 A
      Avg. power consumption 0.03 W
      Sleep current < 100 μA
      Transmit power 0.3-20 W, 4 adjustable levels

    • Batteries

      Battery capacity 1) 50 Wh (alkaline or Li-ion), 2) 165 Wh (lithium), 3) Single or dual
      New battery voltage 13.5 V DC (alkaline)

    • Environmental

      Operating temperature -5 to +40 °C
      Storage temperature -20 to +60 °C
      Shock and vibration IEC 60068-1/IEC60068-2-27/IEC60068-2-64
      EMC approval IEC 61000
      Depth rating 300 m, (3000 m and 6000 m option)

    • Materials

      Standard model POM and polyurethane plastics with titanium fasteners

    • Dimensions

      Maximum diameter 75 mm
      Maximum length ~550 mm (single battery), +110 mm (double battery) depending on head configuration

    • Weight

      Weight in air 2.2 kg
      Weight in water 0.2 kg

    • Options

      1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations

    • Toggle all

    • Technical drawings

      SHP 2MHz General Arrangement - NGA011-016 Rev.-

      Download this

      SVP 2MHz General Arrangement - NGA011-018 Rev.-

      Download this

    • Approvals

      Declaration of conformity

      Download this

    • Toggle all

    • Main product

      01

      Aquadopp Profiler 2MHz

      02

      3000m Aquadopp Profiler 2MHz

      03

      6000m Aquadopp Profiler 2MHz

    • Probe type / Head

      01

      2 MHz Standard head - AQP

      02

      2 MHz Right-angle head - ASP

      03

      2MHz Deepwater Standard head - A3P

      04

      2MHz Deepwater Standard head - A6P

      05

      2MHz 3000m Right-angle head 3SP

    • Housing

      01

      Standard housing for two batteries or one 100Wh package

      02

      Short housing for one battery

      03

      Extra short housing for no batteries

      04

      3000-m depth rating with standard housing for two batteries or one 100 Wh package

      05

      3000-m depth rating with short housing for one battery

      06

      6000-m depth rating with standard housing for two batteries or one 100 Wh package

      07

      6000-m depth rating with short housing for one battery

    • Memory

      01

      9 MB of memory on motherboard (M8)

      02

      4 GB SD card data logger

      03

      16 GB SD card data logger

    • Pressure sensors

      01

      Pressure sensor, 0-10 m

      02

      Pressure sensor, 0-20 m

      03

      Pressure sensor, 0-30 m

      04

      Pressure sensor, 0-50 m

      05

      Pressure sensor, 0-100 m

      06

      Pressure sensor, 0-200m

      07

      Pressure sensor 0-3000 m (3000m Aquadopp Profiler 2MHz only)

      08

      Pressure sensor 0-6000 m (6000m Aquadopp Profiler 2MHz only)

    • Cables

      01

      10m RS232 polyurethane cable with 8-pin inline connector and USB converter

      02

      20m RS232 polyurethane cable with 8-pin inline connector and USB converter

      03

      30m RS232 polyurethane cable with 8-pin inline connector and USB converter

      04

      40m RS232 polyurethane cable with 8-pin inline connector and USB converter

      05

      50m RS232 polyurethane cable with 8-pin inline connector and USB converter

      06

      10m RS422 polyurethane cable with 8-pin inline connector and USB converter

      07

      20m RS422 polyurethane cable with 8-pin inline connector and USB converter

      08

      30m RS422 polyurethane cable with 8-pin inline connector and USB converter

      09

      40m RS422 polyurethane cable with 8-pin inline connector and USB converter

      010

      50m RS422 polyurethane cable with 8-pin inline connector and USB converter

    • Other

      01

      Compass and tilt sensor

      02

      Without compass and tilt sensor
