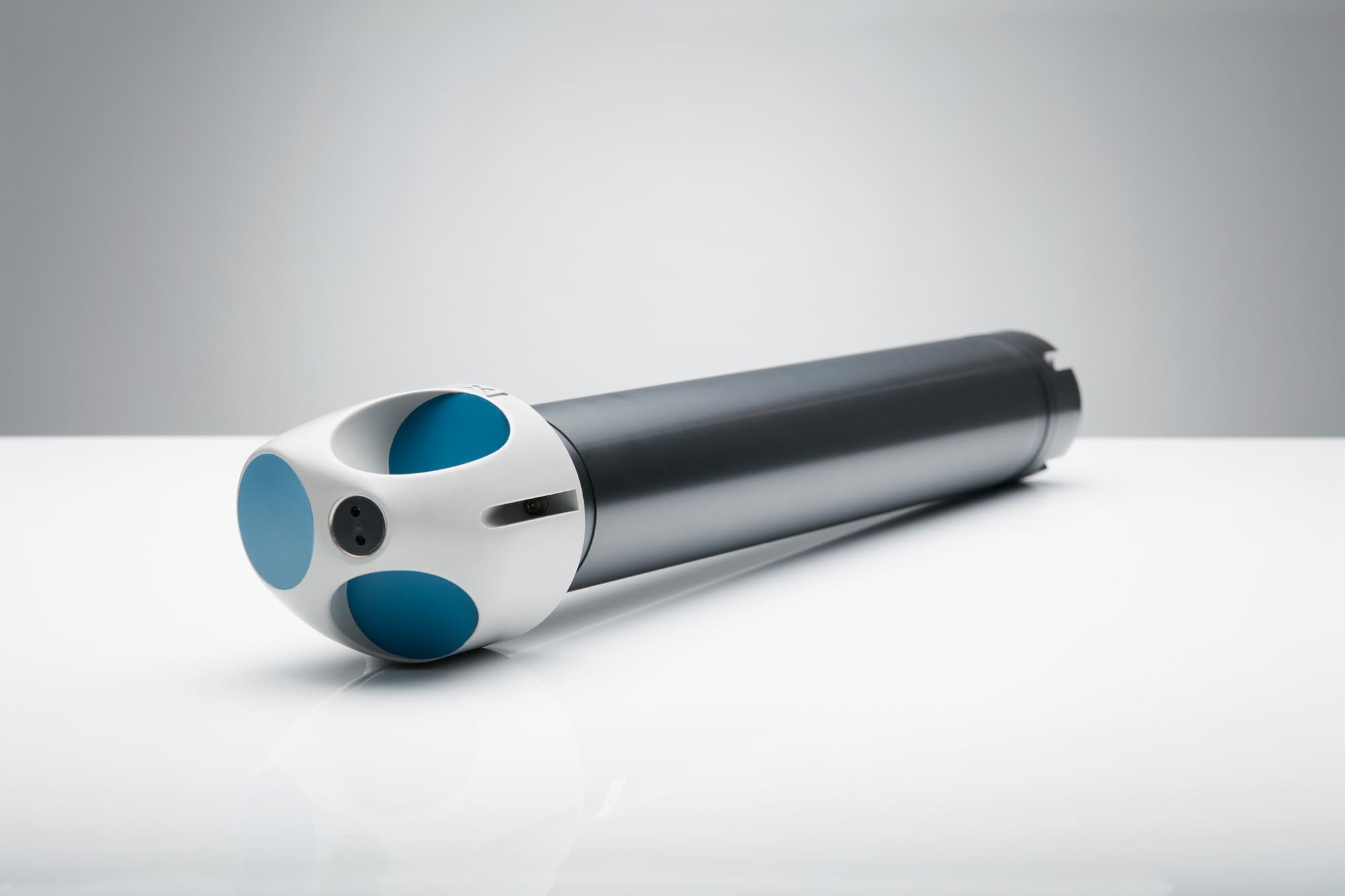

Nortek Aquadopp profiler 600k Hz sideview

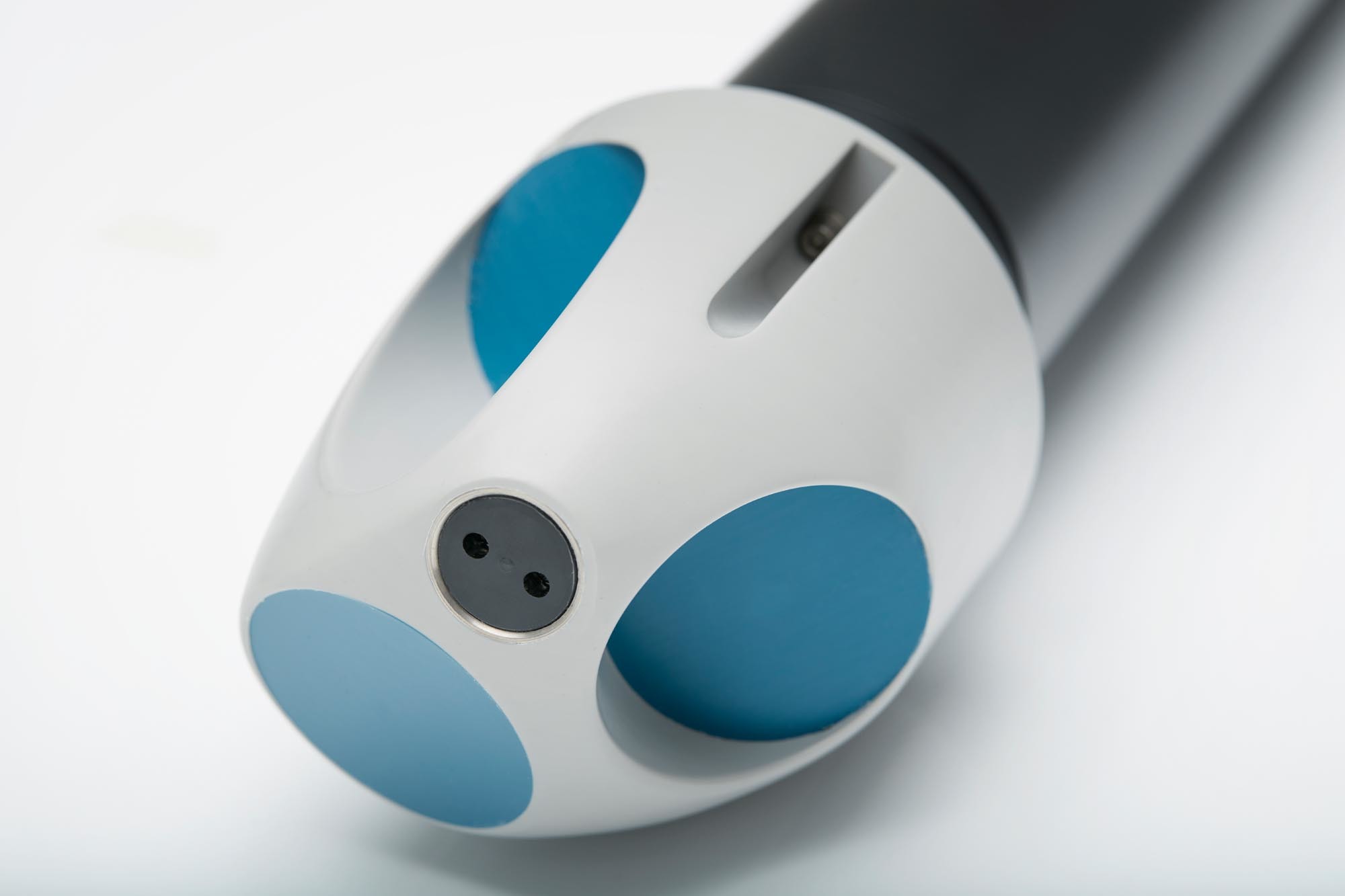

Nortek Aquadopp profiler 600k Hz closeup
Aquadopp Profiler600 2
Nortek Aquadopp profiler 600k Hz sideview Nortek Aquadopp profiler 600k Hz closeup Aquadopp Profiler600 2

CURRENT PROFILER

Aquadopp Profiler 600 kHz

Up to 40 m current profiling range; easy to operate and deploy

  • Up to 40 m current profiling range
  • Ideal for mean current measurements
  • Easy to operate and deploy
Request a quote
Technical specification (PDF)
get help

Need Help? Get in touch.

Overview

  • The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in four profiling range options, from < 1 m to > 85 m. The 600 kHz version has a current profiling range of up to 40 m. Designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.

Highlights

  • Up to 40 m current profiling range
  • Ideal for mean current measurements
  • Easy to operate and deploy

Applications

  • Mean flow measurements with high focus on ease of use and simplicity
  • Measurements in flow regimes with strong variations in flow speeds
  • Studies of tidal currents
  • Measurements of combinations of waves and currents
  • Suitable for wave buoys

    • Toggle all

    • Water velocity measurements

      Maximum profiling range 30-40 m
      Cell size 1-4 m
      Minimum blanking 0.50 m
      Maximum number of cells 96
      Measurement cell position N/A
      Default position (along beam) N/A
      Velocity range ±10 m/s
      Accuracy ±1% of measured value ±0.5 cm/s
      Velocity precision Consult instrument software
      Maximum sampling rate (output) 1 Hz
      Internal sampling rate 4 Hz

    • Echo intensity (along slanted beams)

      Sampling Same as velocity
      Resolution 0.45 dB
      Dynamic range 90 dB
      Transducer acoustic frequency 600 kHz
      Number of beams 3
      Beam width 3.0°

    • HR option

      Maximum profiling range N/A
      Cell size N/A
      Minimum blanking N/A
      Maximum number of cells N/A
      Range/Velocity limitations N/A
      Accuracy N/A
      Max. sampling rate N/A

    • Z-Cell option

      Cell zero acoustic frequency N/A
      Maximum profiling range N/A
      Number of beams N/A

    • Sensors

      Temperature: Thermistor embedded in head
      Temp. range -4 to +40 °C
      Temp. accuracy/resolution 0.1 °C/0.01 °C
      Temp. time response 10 min
      Compass: Magnetometer
      Accuracy/resolution 2°/0.1° for tilt < 20°
      Tilt: Liquid level
      Accuracy/resolution 0.2°/0.1°
      Maximum tilt 30°
      Up or Down Automatic detect
      Pressure: Piezoresistive
      Range 0-100 m (inquire for options)
      Accuracy/precision 0.5% FS / 0.005% of full scale

    • Analog inputs

      No. of channels 2
      Supply voltage to analog output devices Three options selectable through firmware commands:1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA
      Voltage input 0-5 V
      Resolution 16-bit A/D

    • Data recording

      Capacity 9 MB, can add 4/16 GB
      Data record 9*Ncells + 32 bytes
      Diagnostics record N/A
      Wave record Nsamples * 24 + 60 bytes
      Mode Stop when full (default) or wrap mode

    • Real-time clock

      Accuracy ±1 min/year
      Backup in absence of power 4 weeks

    • Data communications

      I/O RS-232 or RS-422
      Communication baud rate 300-115200 Bd
      Recorder download baud rate 600/1200 kBd for both RS-232 and RS-422
      User control Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binary or ASCII data output

    • Connectors

      Bulkhead MCBH-8-FS
      Cable PMCIL-8-MP on 10m polyurethane cable

    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®)

    • Power

      DC input 9-15 V DC
      Maximum peak current 3 A
      Avg. power consumption 0.06 W
      Sleep current < 100 μA
      Transmit power 0.3-20 W, 4 adjustable levels

    • Batteries

      Battery capacity 1) 50 Wh (alkaline or Li-ion), 2) 165 Wh (lithium), 3) Single or dual
      New battery voltage 13.5 V DC (alkaline)

    • Environmental

      Operating temperature -5 to +40 °C
      Storage temperature -20 to +60 °C
      Shock and vibration IEC 721-3-6
      EMC approval IEC 61000
      Depth rating 300 m

    • Materials

      Standard model POM and polyurethane plastics with titanium fasteners

    • Dimensions

      Maximum diameter 100 mm
      Maximum length ~550 mm (single battery), +110 mm (double battery) depending on head configuration

    • Weight

      Weight in air 2.9 kg
      Weight in water 0.4 kg

    • Options

      1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations

    • Toggle all

    • Technical drawings

      AQP 600 General Assembly - NGA011-022 Rev.-

      Download this

    • Approvals

      Declaration of conformity

      Download this

    • Toggle all

    • Main product

      01

      Aquadopp Profiler 600kHz

    • Probe type / Head

      01

      600 kHz Standard head - AQP

    • Housing

      01

      Standard housing for two batteries or one 100Wh package

      02

      Short housing for one battery

      03

      Extra short housing for no batteries

    • Memory

      01

      9 MB of memory on motherboard (M8)

      02

      4 GB SD card data logger

      03

      16 GB SD card data logger

    • Pressure sensors

      01

      Pressure sensor, 0-10 m

      02

      Pressure sensor, 0-20 m

      03

      Pressure sensor, 0-30 m

      04

      Pressure sensor, 0-50 m

      05

      Pressure sensor, 0-100 m

      06

      Pressure sensor, 0-200m

    • Cables

      01

      10m RS232 polyurethane cable with 8-pin inline connector and USB converter

      02

      20m RS232 polyurethane cable with 8-pin inline connector and USB converter

      03

      30m RS232 polyurethane cable with 8-pin inline connector and USB converter

      04

      40m RS232 polyurethane cable with 8-pin inline connector and USB converter

      05

      50m RS232 polyurethane cable with 8-pin inline connector and USB converter

      06

      10m RS422 polyurethane cable with 8-pin inline connector and USB converter

      07

      20m RS422 polyurethane cable with 8-pin inline connector and USB converter

      08

      30m RS422 polyurethane cable with 8-pin inline connector and USB converter

      09

      40m RS422 polyurethane cable with 8-pin inline connector and USB converter

      010

      50m RS422 polyurethane cable with 8-pin inline connector and USB converter

    • Other

      01

      Compass and tilt sensor

      02

      Without compass and tilt sensor
