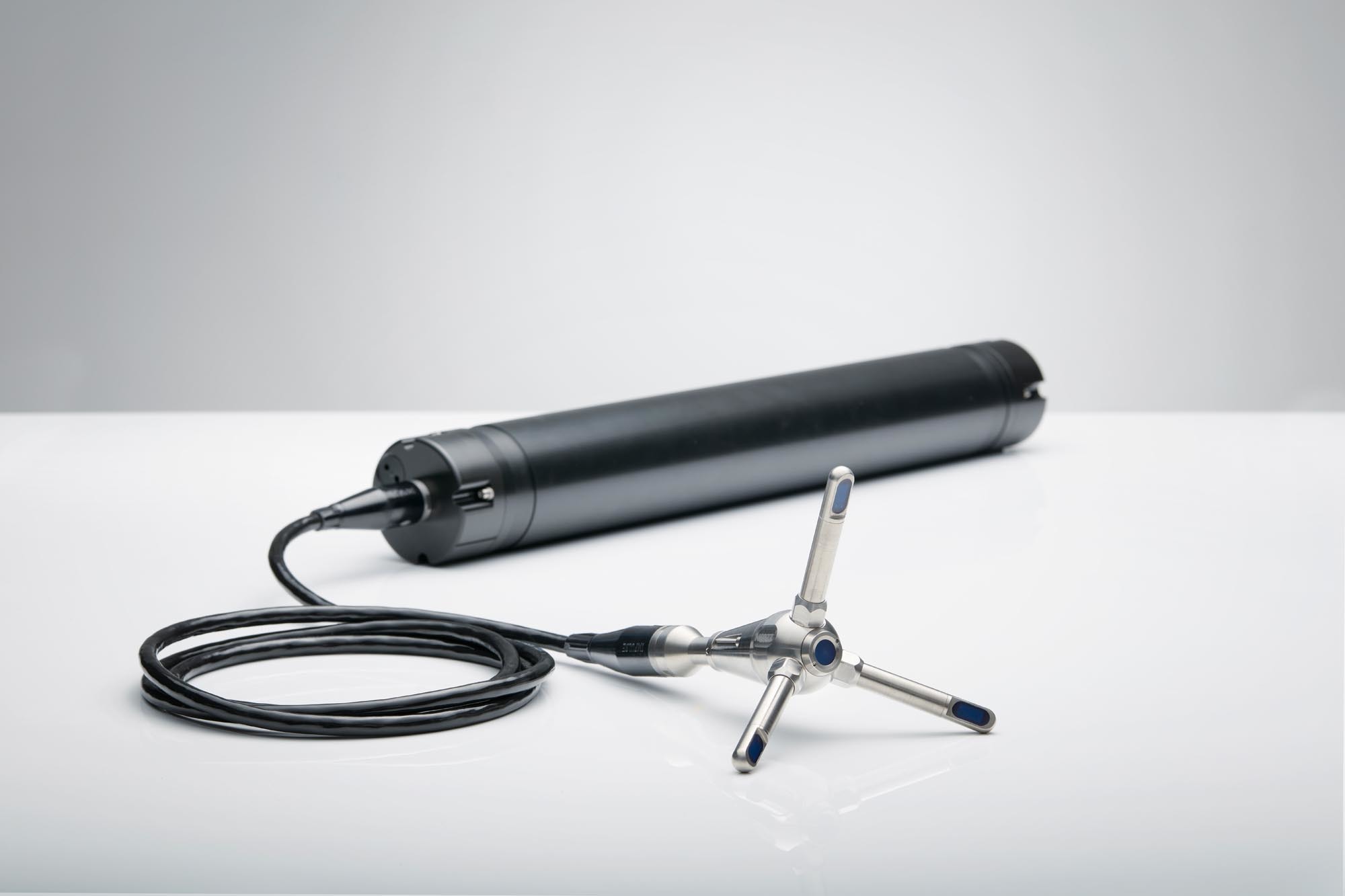

Nortek Vector Cable probe closeup 1
Eddy systems 2
Nortek 30098129756
Vector 1 Nortek Vector Cable probe closeup 1 Eddy systems 2 Nortek 30098129756

VELOCIMETER

Vector - 300 m

Sample 3D velocity at up to 64 Hz for small-scale research in coastal areas

  • Small-scale turbulence
  • Sampling up to 64 Hz
  • Small sampling volume for measurements close to boundaries
Request a quote
Technical specification (PDF)
get help

Need Help? Get in touch.

Overview

  • The Vector is a high-accuracy single-point current meter that is capable of acquiring 3D velocity in a very small volume at rates up to 64 Hz. It is widely used for sediment transport applications, small-scale turbulence measurements and coastal engineering studies. It has an excellent track record of delivering outstanding data quality in a variety of applications. This version is suitable for use down to a depth of 300 m. The Vector’s titanium version is suitable for investigating deep- water currents.

Highlights

  • Small-scale turbulence
  • Sampling up to 64 Hz
  • Small sampling volume for measurements close to boundaries

Applications

  • Wave orbital studies
  • Studies of bottom boundary layers
  • Ocean engineering projects
  • Coastal studies
  • River turbulence
  • Low flow measurements
  • Flux measurements

    • Toggle all

    • Water velocity measurements

      Maximum profiling range N/A
      Distance from probe 0.15 m
      Sampling volume diameter 15 mm
      Sampling volume height (user-selectable) 5-20 mm
      Cell size N/A
      Velocity range ±0.01, 0.1, 0.3, 1, 2, 4, 7 m/s (software-selectable)
      Adaptive ping interval N/A
      Accuracy ±0.5% of measured value ±1 mm/s
      Velocity precision typ. 1% of velocity range (at 16 Hz)
      Sampling rate (output) 1-64 Hz
      Internal sampling rate 100-250 Hz

    • Distance measurements

      Minimum range N/A
      Maximum range N/A
      Cell size N/A
      Accuracy N/A
      Sampling rate N/A

    • Echo intensity

      Acoustic frequency 6 MHz
      Resolution 0.45 dB
      Dynamic range 90 dB

    • Sensors

      Temperature: Thermistor embedded in end bell
      Temp. range -4 to +40 °C
      Temp. accuracy/resolution 0.1 °C/0.01 °C
      Temp. time response 10 min
      Compass: Magnetometer
      Accuracy/resolution 2º/0.1º for tilt < 20°
      Tilt: Liquid level
      Accuracy/resolution 0.2°/0.1°
      Maximum tilt 30°
      Up or Down Automatic detect
      Pressure: Piezoresistive
      Standard range 0-10 m (inquire for options)
      Accuracy/precision 0.5% FS / Better than 0.005% of full scale

    • Analog inputs

      No. of channels 2
      Supply voltage to analog output devices Three options selectable through firmware commands:1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA

    • Data recording

      Capacity (standard): 16 GB
      Data record (Standard) 24 bytes at sampling rate + 28 bytes/second
      Data record (IMU) 72 bytes at sampling rate

    • Real-time clock

      Accuracy ±1 min/year
      Backup in absence of power 4 weeks

    • Data communications

      I/O RS-232 or RS-422
      Communication baud rate 300-115 200 Bd
      Recorder download baud rate 600/1200 kBd for both RS-232 and RS-422
      User control Handled via ”Vector” software, ActiveX® function calls, or direct commands.
      Analog outputs 3 channels standard, one for each velocity component or two velocities and pressure.
      Output range 0–5 V, scaling is user-selectable.
      Synchronization TTL (5V tolerant) sync in/sync out, start on sync, sample on sync

    • Connectors

      Bulkhead MCBH-8-FS
      Cable PMCIL-8-MP on 10 m polyurethane cable

    • Software

      Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®).

    • Multi unit operation

      Software N/A
      I/O N/A

    • Power

      DC input 9-15V DC
      Maximum peak current 3 A
      Max. consumption 1.5 W at 64 Hz
      Typical consumption, 4 Hz 0.6 - 1 W
      Sleep consumption < 100 μA
      Transmit power 2 adjustable levels

    • Batteries

      Battery capacity 50 Wh (alkaline or Li-ion),165 Wh (lithium), single or dual
      New battery voltage 13.5 V DC (alkaline)
      Data collection capacity Refer to planning section in software

    • Environmental

      Operating temperature -4 to +40 °C
      Storage temperature -20 to +60 °C
      Vibration IEC 60068-1/IEC60068-2-64
      Depth rating 300m

    • Materials

      Standard model POM housing, titanium probe and fasteners

    • Dimensions

      Maximum diameter 75 mm
      Maximum length 468 mm (housing only), 246 mm (fixed stem) add 110 mm for double battery

    • Weight

      No batteries Weight in air: 2.32 kg, in water: buoyant
      2 batteries Weight in air: 3.20 kg, in water: 0.54 kg

    • Options

      Probe mounted on fixed stem or on 2 m cable
      Vertical or horizontal probes
      Alkaline, lithium or Li-ion external batteries
      IMU - Inertial Measurement Unit

    • Toggle all

    • Technical drawings

      Vector Fixed Stem GA - NGA008-001 Rev.A

      Download this

      Vector Cable Probe GA - NGA008-002 Rev.A

      Download this

    • Toggle all

    • Main product

      01

      Vector single point current meter

    • Probe type / Head

      01

      Standard probe on fixed stem, vertical instrument mounting (VEC)

      02

      Standard probe on fixed stem, horizontal instrument mounting (VEH)

      03

      Standard probe on 2m cable, vertical instrument mounting (VEC)

      04

      Standard probe on 2m cable, horizontal instrument mounting (VEH)

    • Housing

      01

      Standard housing for two batteries or one 100Wh package

      02

      Short housing for one battery

    • Memory

      01

      16 GB SD card data logger

    • Pressure sensors

      01

      0-10m pressure sensor

      02

      0-20m pressure sensor

      03

      0-30m pressure sensor

      04

      0-50m pressure sensor

      05

      0-100m pressure sensor

      06

      0-200m pressure sensor

    • Cables

      01

      10m RS232 polyurethane cable with 8-pin inline connector and USB converter

      02

      20m RS232 polyurethane cable with 8-pin inline connector and USB converter

      03

      30m RS232 polyurethane cable with 8-pin inline connector and USB converter

      04

      40m RS232 polyurethane cable with 8-pin inline connector and USB converter

      05

      50m RS232 polyurethane cable with 8-pin inline connector and USB converter

      06

      10m RS422 polyurethane cable with 8-pin inline connector and USB converter

      07

      20m RS422 polyurethane cable with 8-pin inline connector and USB converter

      08

      30m RS422 polyurethane cable with 8-pin inline connector and USB converter

      09

      40m RS422 polyurethane cable with 8-pin inline connector and USB converter

      010

      50m RS422 polyurethane cable with 8-pin inline connector and USB converter

    • Other

      01

      With or without IMU

      02

      With or without compass and tilt

Related content

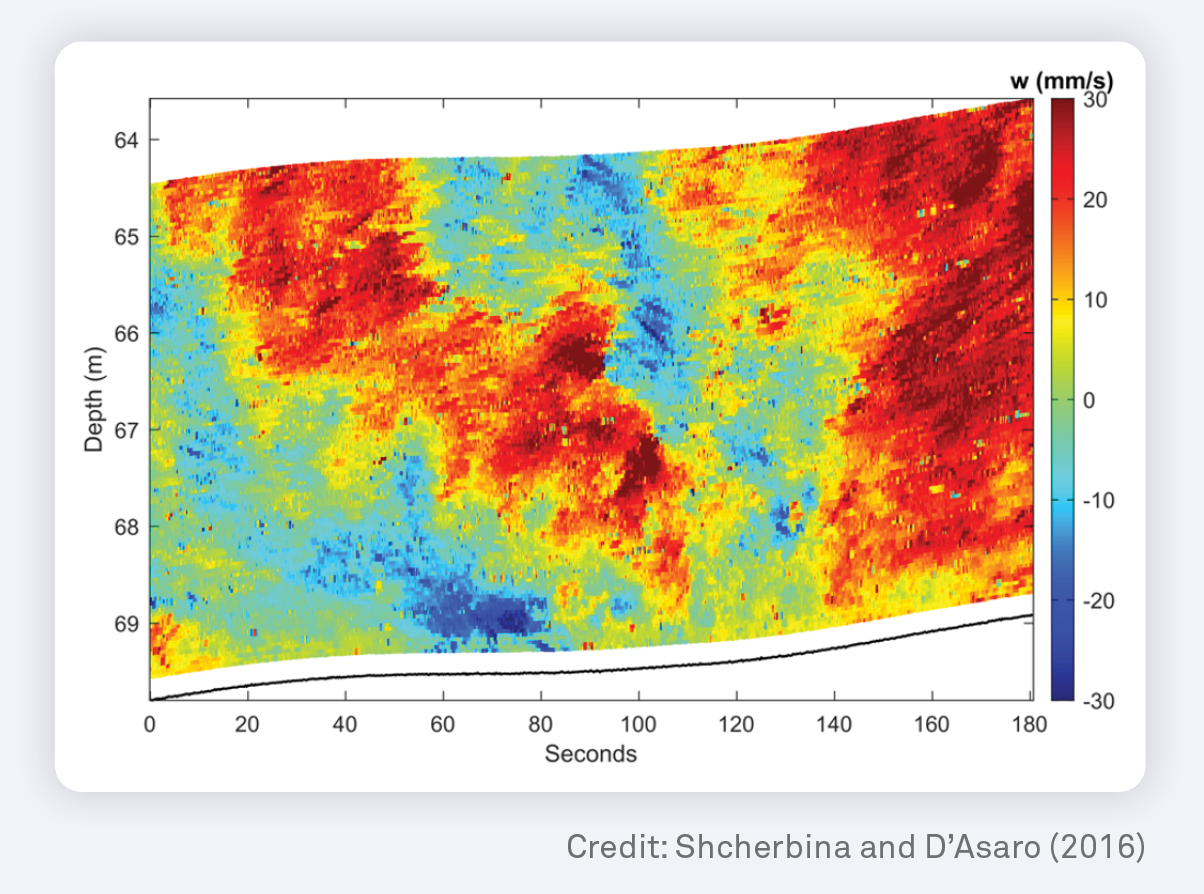

Vertical turbulent flow structures measured by an ADCP (a Signature1000), as a function of depth and time. The different colors correspond to flow speeds from +30 to -30 mm/s.

New to turbulent flow?

Wiki

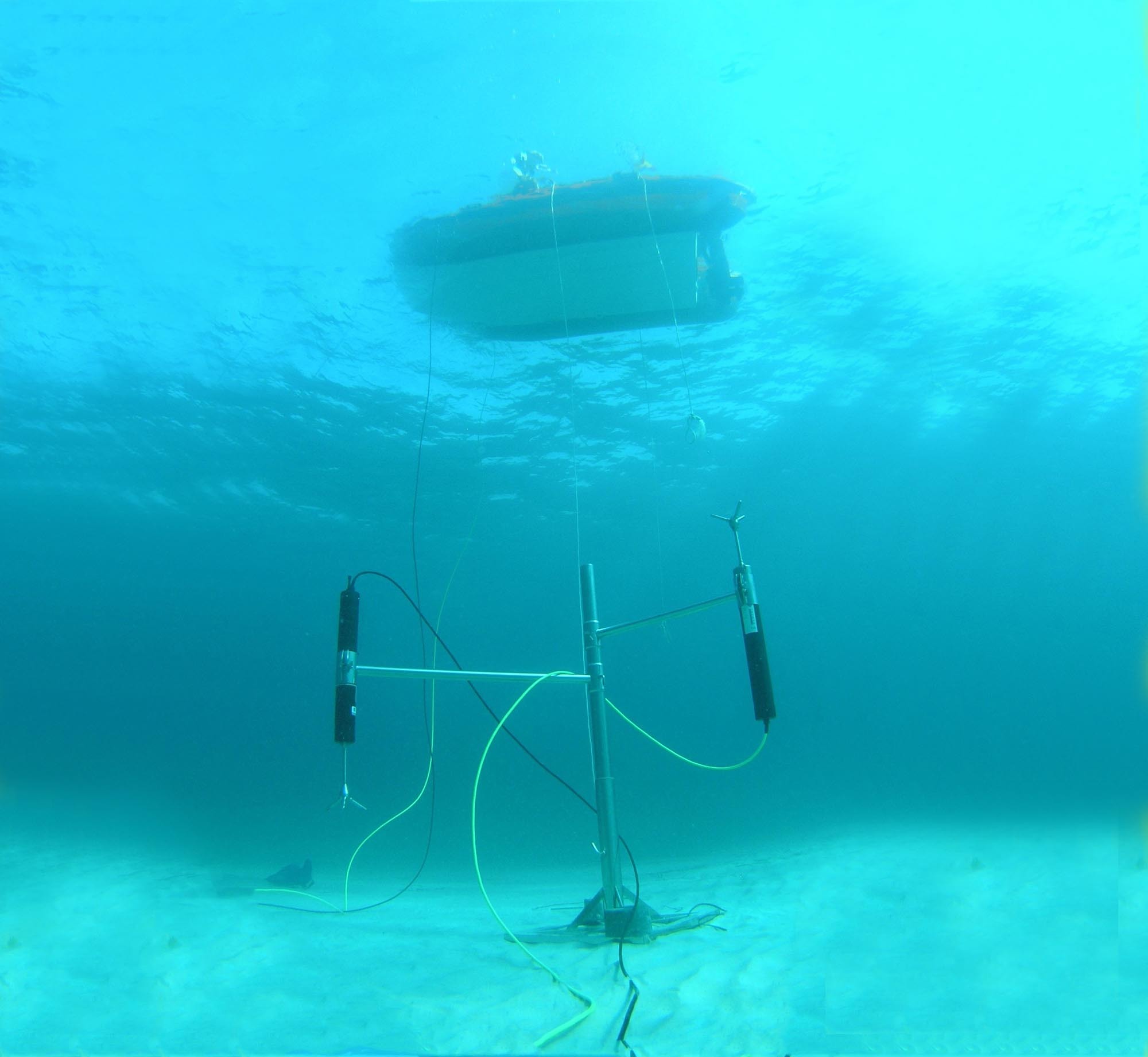

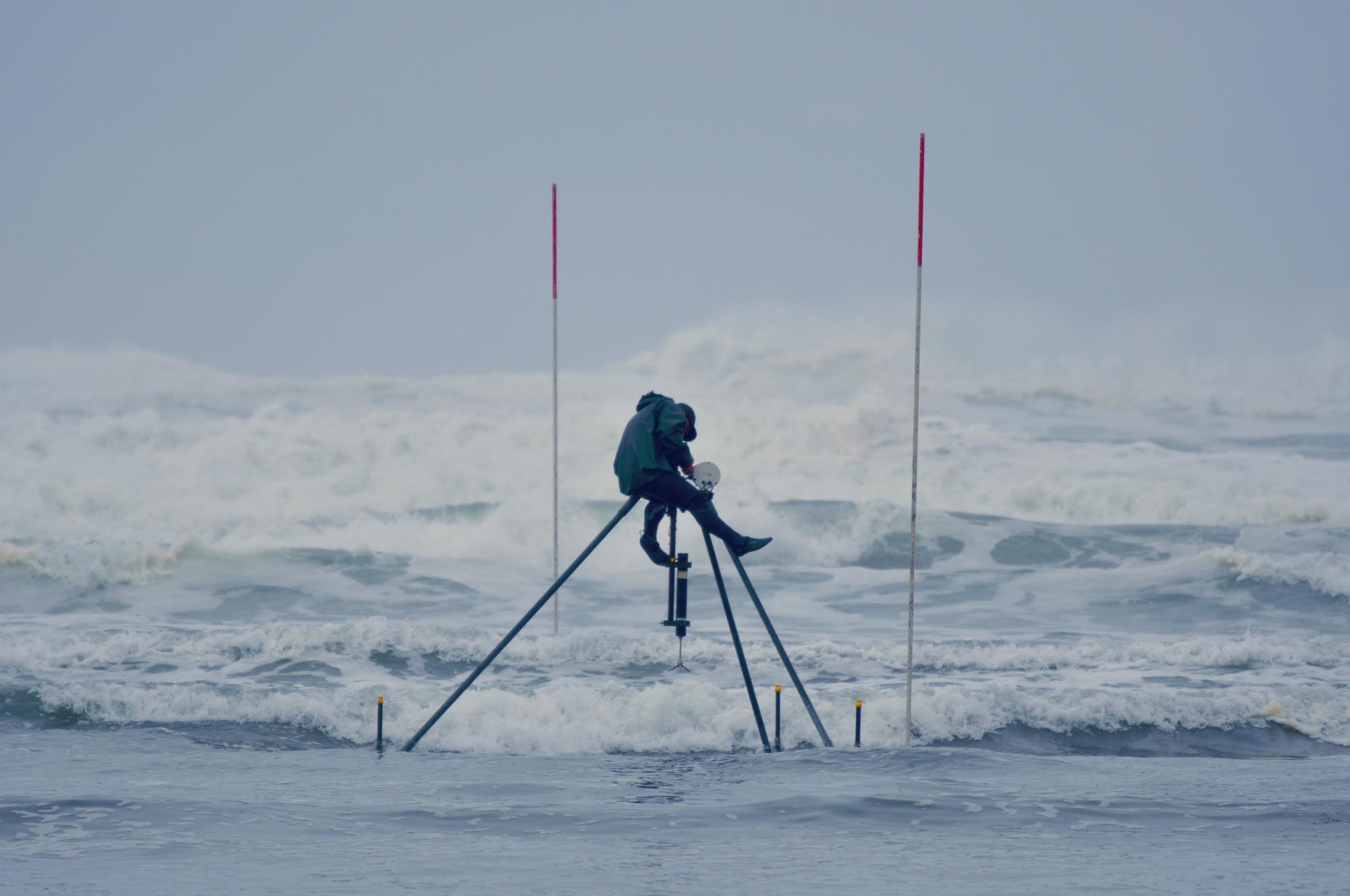

Nortek Vector deployed on an inter-tidal sandbank
