Overview

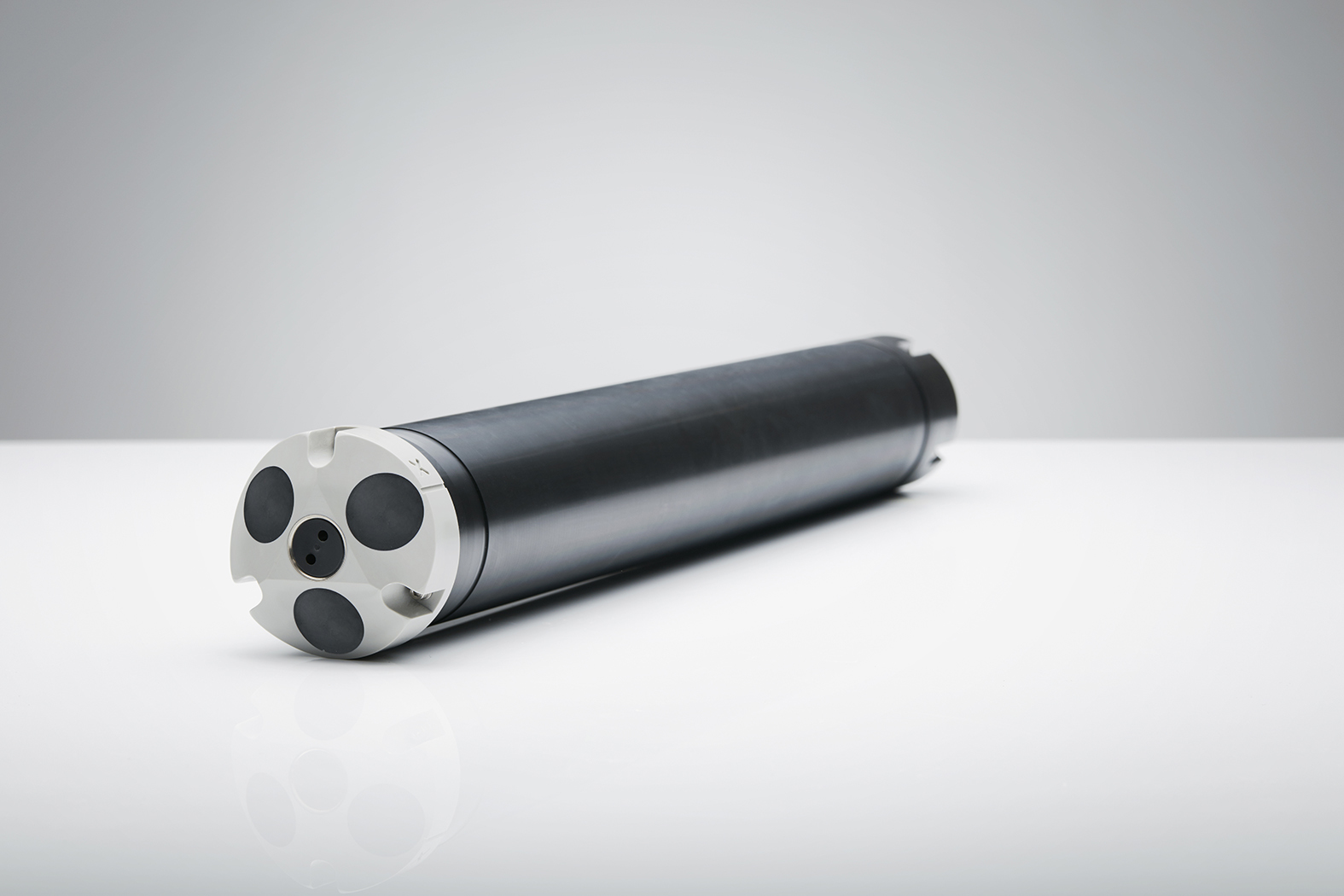

The Aquadopp Profiler is a highly versatile Acoustic Doppler Current Profiler (ADCP) available in four profiling range options, from < 1 m to > 85 m. The 1 MHz version has a current profiling range of up to 25 m. Designed for simple yet powerful operation, this current profiler is packed with features used by engineers and researchers to enable accurate and effective hydrodynamic data collection in a variety of environmental conditions.
- Currents
- Waves
Highlights
-
Up to 25 m current profiling range
-
Optional right-angle head
-
PUV wave measurements
Usage
-
Mean flow measurements with high focus on ease of use and simplicity
-
Measurements in flow regimes with strong variations in flow speeds
-
Projects with needs for both high-resolution and normal-range current measurements
-
Studies of deep-water currents
-
Studies of tidal currents
-
Measurements of combinations of waves and currents
-
Suitable for wave buoys
-
This instrument is used to perform river discharge measurements by River Insight.
Setup
The 1MHz Aquadopp Profiler, designed for current measurements up to a 25m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements.
Deployment
Compact size and an optional right-angle head allow for very near-bed deployments, maximizing water column coverage in shallow areas. Teams of all sizes can deploy an Aquadopp Profiler successfully.
Data
Nortek postprocessing software and/or display software is available for review, visualization, and processing of data, after deployment or in real time.
| Maximum profiling range | 12-25 m |
| Cell size | 0.3-4 m |
| Minimum blanking | 0.20 m |
| Maximum number of cells | 96 |
| Measurement cell position | N/A |
| Default position (along beam) | N/A |
| Velocity range | ±10 m/s |
| Accuracy | ±1% of measured value ±0.5 cm/s |
| Velocity precision | Consult instrument software |
| Maximum sampling rate (output) | 1 Hz |
| Internal sampling rate | 7 Hz |
| Sampling | Same as velocity |
| Resolution | 0.45 dB |
| Dynamic range | 90 dB |
| Transducer acoustic frequency | 1 MHz |
| Number of beams | 3 |
| Beam width | 3.4° |
| Maximum profiling range | 6 m |
| Cell size | 20-300 mm |
| Minimum blanking | 0.2 m |
| Maximum number of cells | 128 |
| Range/Velocity limitations | Product of profiling range and velocity should not exceed 1.0 m2/s |
| Accuracy | ±1% of measured value ±0.5 cm/s |
| Max. sampling rate | 1 Hz (continuous mode), 8 Hz (burst mode) |
| Cell zero acoustic frequency | N/A |
| Maximum profiling range | N/A |
| Number of beams | N/A |
| Temperature: | Thermistor embedded in head |
| Temp. range | -4 to +40 °C |
| Temp. accuracy/resolution | 0.1 °C/0.01 °C |
| Temp. time response | 10 min |
| Compass: | Magnetometer |
| Accuracy/resolution | 2°/0.1° for tilt < 20° |
| Tilt: | Liquid level |
| Accuracy/resolution | 0.2°/0.1° |
| Maximum tilt | 30° |
| Up or Down | Automatic detect |
| Pressure: | Piezoresistive |
| Range | 0-100 m (inquire for options) |
| Accuracy/precision | 0.5% FS / 0.005% of full scale |
| No. of channels | 2 |
| Supply voltage to analog output devices | Three options selectable through firmware commands: 1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA |
| Voltage input | 0-5 V |
| Resolution | 16 bit A/D |
| Capacity | 9 MB, can add 4/16 GB |
| Data record | 9*Ncells + 32 bytes |
| Diagnostics record | N/A |
| Wave record | Nsamples * 24 + 60 bytes |
| Mode | Stop when full (default) or wrap mode |
| Accuracy | ±1 min/year |
| Backup in absence of power | 4 weeks |
| I/O | RS-232 or RS-422 |
| Communication baud rate | 300-115200 Bd |
| Recorder download baud rate | 600/1200 kBd for both RS-232 and RS-422 |
| User control | Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binary or ASCII data output |
| Bulkhead | MCBH-8-FS |
| Cable | PMCIL-8-MP on 10 m Polyurethane cable |
| Functions | Deployment planning, instrument configuration, data retrieval and conversion (for Windows®) |
| DC input | 9-15 V DC |
| Maximum peak current | 3 A |
| Avg. power consumption | 0.05 W |
| Sleep current | < 100 μA |
| Transmit power | 0.3-20 W, 4 adjustable levels |
| Battery capacity | 1) 50 Wh (alkaline or Li-ion), 2) 165 Wh (lithium), 3) Single or dual |
| New battery voltage | 13.5 V DC (alkaline) |
| Operating temperature | -5 to +40 °C |
| Storage temperature | -20 to +60 °C |
| Shock and vibration | IEC 721-3-7 |
| EMC approval | IEC 61000 |
| Depth rating | 300 m (3000 m option) |
| Standard model | POM and polyurethane plastics with titanium fasteners |
| Maximum diameter | 75 mm |
| Maximum length | ~550 mm (single battery), +110 mm (double battery) depending on head configuration |
| Weight in air | 2.2 kg |
| Weight in water | 0.2 kg |
| 1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations |
Aquadopp Profiler 1MHz
3000m Aquadopp Profiler 1MHz
1 MHz Standard head - AQP
1 MHz Right-angle head - ASP
1 MHz 3000m Aquadopp Profiler Head A3P
Standard housing for two batteries or one 100Wh package
Short housing for one battery
Extra short housing for no batteries
3000-m depth rating with standard housing for two batteries or one 100 Wh package (1MHz 3000m Aquadopp only)
3000-m depth rating with short housing for one battery (1MHz 3000m Aquadopp only)
9 MB of memory on motherboard (M8)
4 GB SD card data logger
16 GB SD card data logger
Pressure sensor, 0-10 m
Pressure sensor, 0-20 m
Pressure sensor, 0-30 m
Pressure sensor, 0-50 m
Pressure sensor, 0-100 m
Pressure sensor, 0-200m
Pressure sensor 0-3000 m (1MHz 3000m Aquadopp only)
10m RS232 polyurethane cable with 8-pin inline connector and USB converter
20m RS232 polyurethane cable with 8-pin inline connector and USB converter
30m RS232 polyurethane cable with 8-pin inline connector and USB converter
40m RS232 polyurethane cable with 8-pin inline connector and USB converter
50m RS232 polyurethane cable with 8-pin inline connector and USB converter
10m RS422 polyurethane cable with 8-pin inline connector and USB converter
20m RS422 polyurethane cable with 8-pin inline connector and USB converter
30m RS422 polyurethane cable with 8-pin inline connector and USB converter
40m RS422 polyurethane cable with 8-pin inline connector and USB converter
50m RS422 polyurethane cable with 8-pin inline connector and USB converter
Compass and tilt sensor
Without compass and tilt sensor
Deployment planning, execution and recovery
Note. Firmware for legacy systems (pre April 2008) with version numbers starting with 0. or 1.
Also compatible with Z-cell. New features, fixes and functionality
Deployment planning, execution and recovery
New features, fixes and functionality
Note. Firmware for legacy systems (pre April 2008) with version numbers starting with 0. or 1.
SD6000 data processing
Data conversion to MATLAB format (*.mat)
Display of profiler data. Can be used in combination with Prof2NDP
Data conversion
Processing of waves
Data processing and ready-to-print reporting software. Request quote for license
Wave and current profile data visualization and processing software for online applications. Request quote for license
Analysis and processing of currents and directional waves. Request quote for license
Analysis and processing of current profiles. Request quote for license
Cable for external battery canister to 8-pin inline connector
Cable RS232 polyurethane with 8-pin inline connector and USB converter
Cable RS422 polyurethane with 8-pin inline connector and USB converter
Battery, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery canister, plastic with 4*18 AA pack w/cable 8-pin inline (300m rating)
Battery pack, 5-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 50 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 13.5 V - 100 Wh, alkaline
This slim battery can be used inside the main canister of your Nortek instrument.
Battery pack, 5-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Battery pack, 10-pack, 12 V - 165 Wh, lithium
This battery can be used inside the main canister of your Nortek instrument.
Set of Anti-fouling patches for Aquadopp
This set is suitable for Aquadopp 300 m, Aquadopp Profiler 1MHz, Aquadopp Profiler 2MHz and Eco
