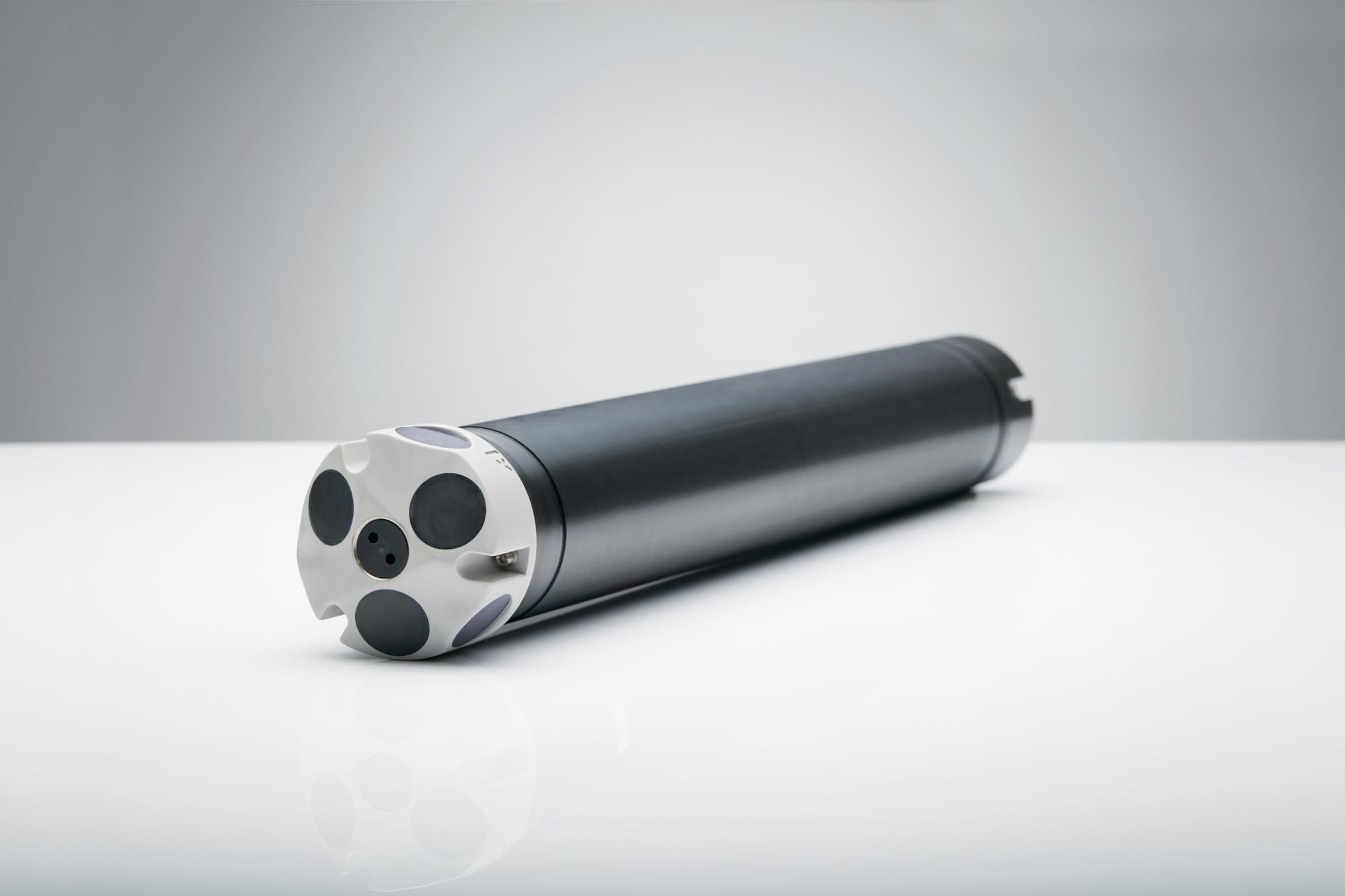

Nortek Aquadopp profiler Z cell 1 M Hz sideview

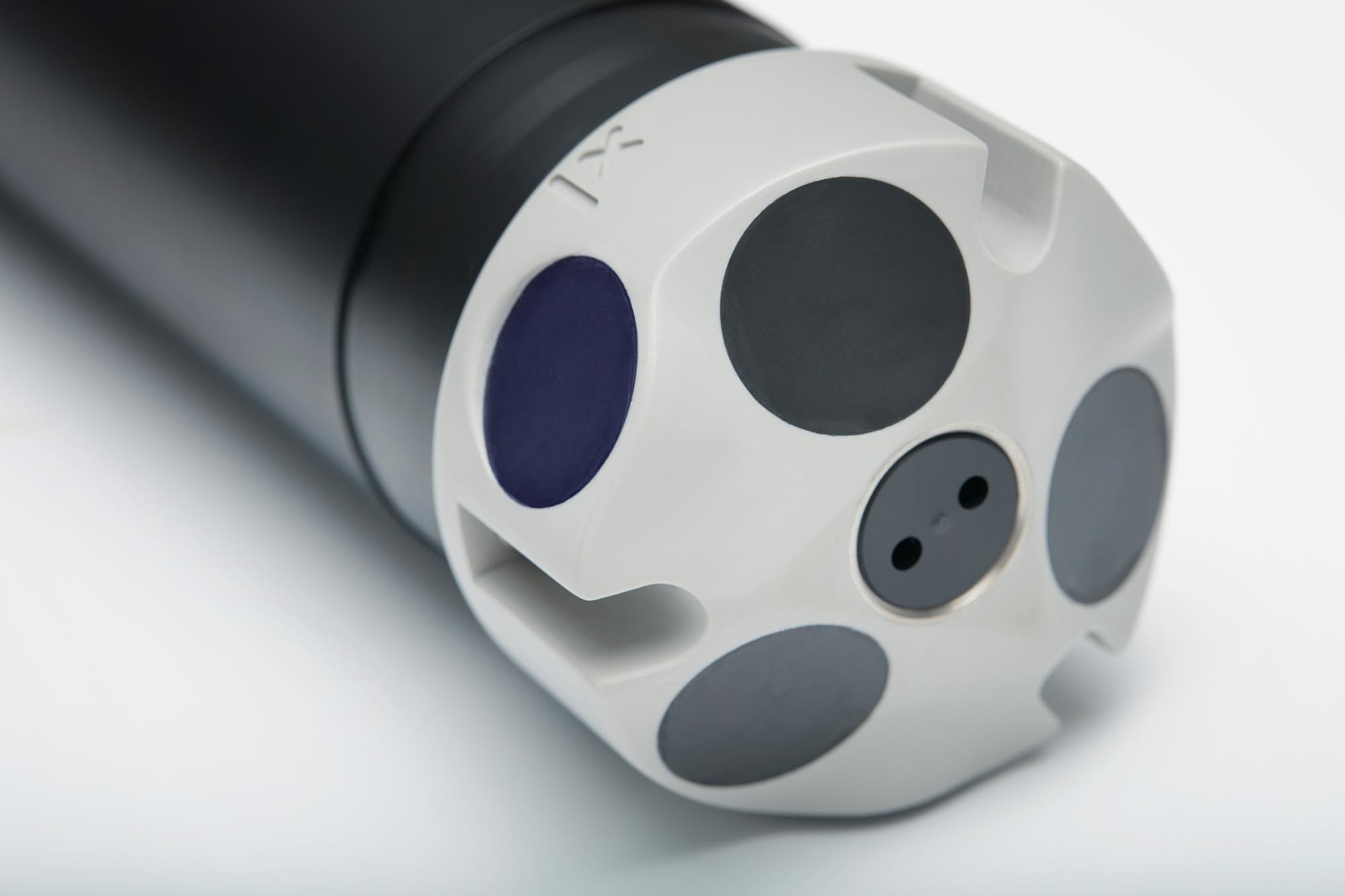

Nortek Aquadopp profiler Z cell 1 M Hz closeup
Z Cell low
Nortek 30269888551
Nortek Aquadopp profiler Z cell 1 M Hz sideview
Nortek Aquadopp profiler Z cell 1 M Hz closeup
Z Cell low
Nortek 30269888551

Oceanography

Aquadopp Z-Cell 1 MHz

Up to 25 m current profiling range and no blanking; can measure near-surface or near-bottom currents

  • Up to 25 m current profiling range
  • Capable of measuring surface or bottom currents
  • PUV-based directional wave measurements

Overview

Need to collect accurate 3D currents very near the seabed or sea surface, in addition to a full water-column profile?

The Z-Cell (Zero Cell) Aquadopp allows current measurement to start right at the instrument’s level through an innovative approach: it has side-looking beams fully integrated into the instrument’s head, effectively removing the blanking distance normally applicable to ADCPs.

  • Currents
  • Waves

Highlights

  • Up to 25 m current profiling range
  • Capable of measuring surface or bottom currents
  • PUV-based directional wave measurements

Usage

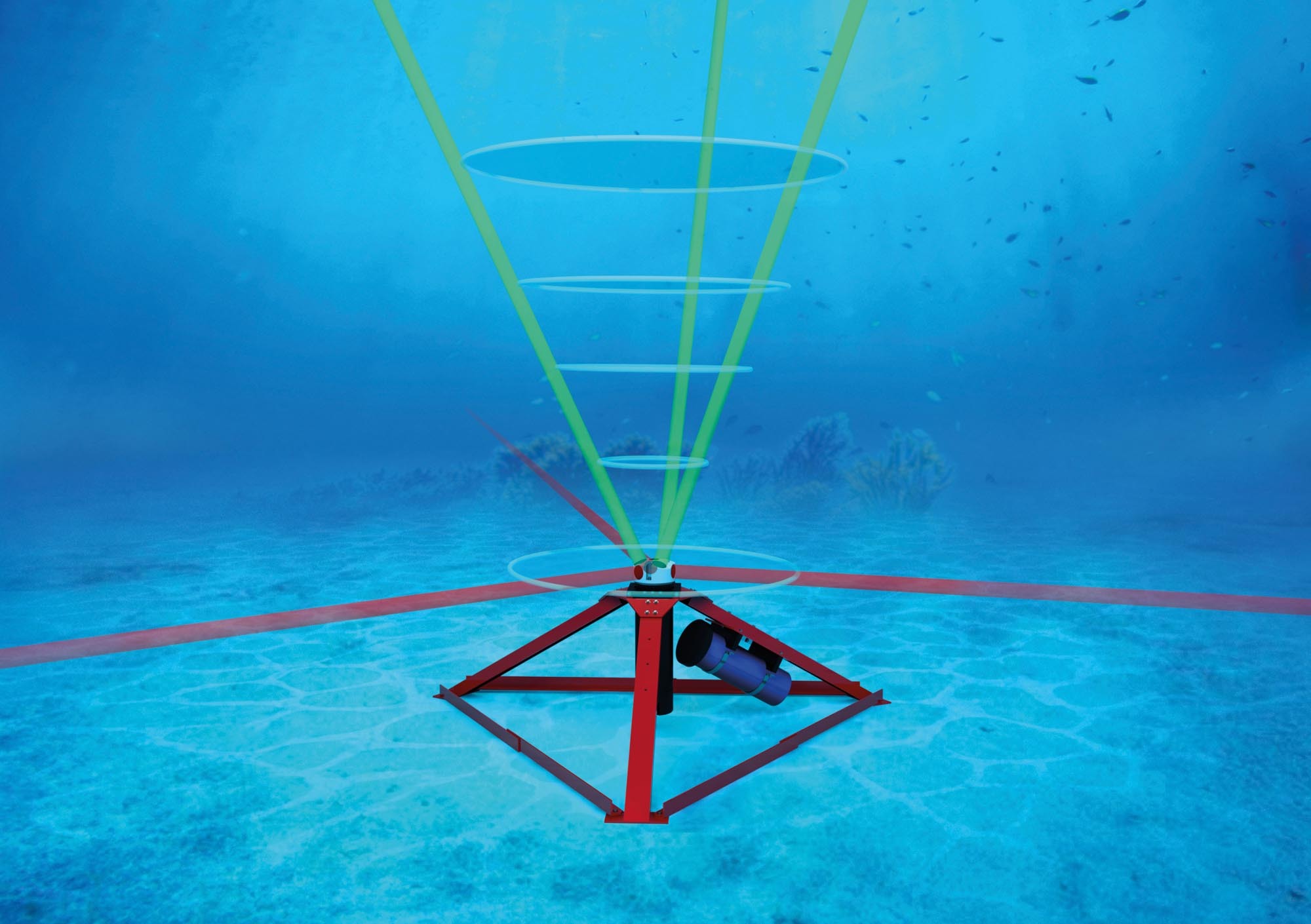

  • Mounted on bottom frames, with ability to measure also near-bed currents
  • Mean flow measurements with high focus on ease of use and simplicity
  • Measurements in flow regimes with strong variations in flow speeds
  • Projects with needs for both high-resolution and normal-range current measurements
  • Studies of tidal currents
  • Measurements of combinations of waves and currents
  • Mounted on surface buoys, with the ability to measure also surface currents

Setup

The 1MHz Aquadopp Z-Cell, designed for current measurements up to a 25m range, is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements. The Z-cell functionality allows measurements at the level of the instrument head, eliminating the “blanking distance” at which most ADCPs cannot measure.

Deployment

Teams of all sizes can deploy an Aquadopp Z-Cell successfully thanks to its compact size. The instrument is optimal for deployments near boundaries such as the seabed or sea surface.

Data

Nortek postprocessing software and/or display software is available for review, visualization and processing of data, after deployment or in real time. The instrument can provide data from the level of the instrument as well as a full water column profile.

Download PDF

Maximum profiling range 12-25 m
Cell size 0.3-4 m
Minimum blanking 0.20 m when profiling; 0 m when Z-Cell enabled
Maximum number of cells 96
Measurement cell position N/A
Default position (along beam) N/A
Velocity range ±10 m/s
Accuracy ±1% of measured value ±0.5 cm/s
Velocity precision Consult instrument software
Maximum sampling rate (output) 1 Hz
Internal sampling rate 6 Hz

Sampling Same as velocity
Resolution 0.45 dB
Dynamic range 90 dB
Transducer acoustic frequency 1 MHz
Number of beams 3
Beam width 3.4°

Maximum profiling range 6 m
Cell size 20-300 mm
Minimum blanking 0.2 m
Maximum number of cells 128
Range/Velocity limitations Product of profiling range and velocity should not exceed 1.0 m2/s
Accuracy ±1% of measured value ±0.5 cm/s
Max. sampling rate 1 Hz (continuous mode), 8 Hz (burst mode)”

Cell zero acoustic frequency 2 MHz
Maximum profiling range 0.4-0.9 m
Number of beams 3

Temperature: Thermistor embedded in head
Temp. range -4 to +40 °C
Temp. accuracy/resolution 0.1 °C/0.01 °C
Temp. time response 10 min
Compass: Magnetometer
Accuracy/resolution 2°/0.1° for tilt < 20°
Tilt: Liquid level
Accuracy/resolution 0.2°/0.1°
Maximum tilt 30°
Up or Down Automatic detect
Pressure: Piezoresistive
Range 0-100 m (inquire for options)
Accuracy/precision 0.5% FS / 0.005% of full scale

No. of channels 2
Supply voltage to analog output devices Three options selectable through firmware commands: 1) Battery voltage/500 mA, 2) +5 V/250 mA, 3) +12 V/100 mA
Voltage input 0-5 V
Resolution 16-bit A/D

Capacity 9 MB, can add 4/16 GB
Data record 9*Ncells + 32 bytes
Diagnostics record N/A
Wave record Nsamples * 24 + 60 bytes
Mode Stop when full (default) or wrap mode

Accuracy ±1 min/year
Backup in absence of power 4 weeks

I/O RS-232 or RS-422
Communication baud rate 300-115200 Bd
Recorder download baud rate 600/1200 kBd for both RS-232 and RS-422
User control Handled via "Aquadopp" software, ActiveX®function calls, or direct commands with binary or ASCII data output

Bulkhead MCBH-8-FS
Cable PMCIL-8-MP on 10 m polyurethane cable

Functions Deployment planning, instrument configuration, data retrieval and conversion (for Windows®).

DC input 9-15 V DC
Maximum peak current 3 A
Avg. power consumption 0.05 W
Sleep current < 100 μA
Transmit power 0.3-20 W, 4 adjustable levels

Battery capacity 50 Wh (alkaline or Li-ion), 165 Wh (lithium), Single or dual
New battery voltage 13.5 V DC (alkaline)

Operating temperature -5 to +40 °C
Storage temperature -20 to +60 °C
Shock and vibration IEC 721-3-7
EMC approval IEC 61000
Depth rating 300 m

Standard model POM and polyurethane plastics with titanium fasteners

Maximum diameter 75 mm
Maximum length ~550 mm (single battery), +110 mm (double battery) depending on head configuration

Weight in air 2.2 kg
Weight in water 0.2 kg

1) Alkaline, lithium or Li-ion external batteries, 2) Inquire for different head configurations

Z-Cell 1MHz, General Arrangement - NGA011-019 Rev.-

Declaration of conformity

Aquadopp Z-Cell 1MHz (+2MHz)

1 MHz Z-Cell Head - A1Z

Standard housing for two batteries or one 100Wh package

Short housing for one battery

Extra short housing for no batteries

9 MB of memory on motherboard (M8)

4 GB SD card data logger

16 GB SD card data logger

Pressure sensor, 0-10 m

Pressure sensor, 0-20 m

Pressure sensor, 0-30 m

Pressure sensor, 0-50 m

Pressure sensor, 0-100 m

Pressure sensor, 0-200m

10m RS232 polyurethane cable with 8-pin inline connector and USB converter

20m RS232 polyurethane cable with 8-pin inline connector and USB converter

30m RS232 polyurethane cable with 8-pin inline connector and USB converter

40m RS232 polyurethane cable with 8-pin inline connector and USB converter

50m RS232 polyurethane cable with 8-pin inline connector and USB converter

10m RS422 polyurethane cable with 8-pin inline connector and USB converter

20m RS422 polyurethane cable with 8-pin inline connector and USB converter

30m RS422 polyurethane cable with 8-pin inline connector and USB converter

40m RS422 polyurethane cable with 8-pin inline connector and USB converter

50m RS422 polyurethane cable with 8-pin inline connector and USB converter

Compass and tilt sensor

Without compass and tilt sensor

Deployment planning, execution and recovery

Also compatible with Z-cell. New features, fixes and functionality

SD6000 data processing

Data conversion to MATLAB format (*.mat)

Display of profiler data. Can be used in combination with Prof2NDP

Data conversion

Processing of waves

Data processing and ready-to-print reporting software. Request quote for license

Wave and current profile data visualization and processing software for online applications. Request quote for license

Analysis and processing of currents and directional waves. Request quote for license

Analysis and processing of current profiles. Request quote for license

320051

Cable for external battery canister to 8-pin inline connector

650001

Cable RS232 polyurethane with 8-pin inline connector and USB converter

650072

Cable RS422 polyurethane with 8-pin inline connector and USB converter

220010

Battery, 13.5 V - 50 Wh, alkaline

This slim battery can be used inside the main canister of your Nortek instrument.

220008

Battery, 13.5 V - 100 Wh, alkaline

This slim battery can be used inside the main canister of your Nortek instrument.

220025

Battery, 12 V - 165 Wh, lithium

This battery can be used inside the main canister of your Nortek instrument.

901115

Battery canister, plastic with 4*18 AA pack w/cable 8-pin inline (300m rating)

220010 5 Pack

Battery pack, 5-pack, 13.5 V - 50 Wh, alkaline

This slim battery can be used inside the main canister of your Nortek instrument.

220010 10 Pack Nortek batteries

Battery pack, 10-pack, 13.5 V - 50 Wh, alkaline

This slim battery can be used inside the main canister of your Nortek instrument.

220008 5 Pack

Battery pack, 5-pack, 13.5 V - 100 Wh, alkaline

This slim battery can be used inside the main canister of your Nortek instrument.

220008 10 pack batteries

Battery pack, 10-pack, 13.5 V - 100 Wh, alkaline

This slim battery can be used inside the main canister of your Nortek instrument.

220025 5 Pack

Battery pack, 5-pack, 12 V - 165 Wh, lithium

This battery can be used inside the main canister of your Nortek instrument.

Nortek battery packs

Battery pack, 10-pack, 12 V - 165 Wh, lithium

This battery can be used inside the main canister of your Nortek instrument.

650246

Set of Anti-fouling patches for Aquadopp Profiler Z-cell 1 MHz

This set is suitable for Aquadopp Profiler Z-cell 1 MHz
