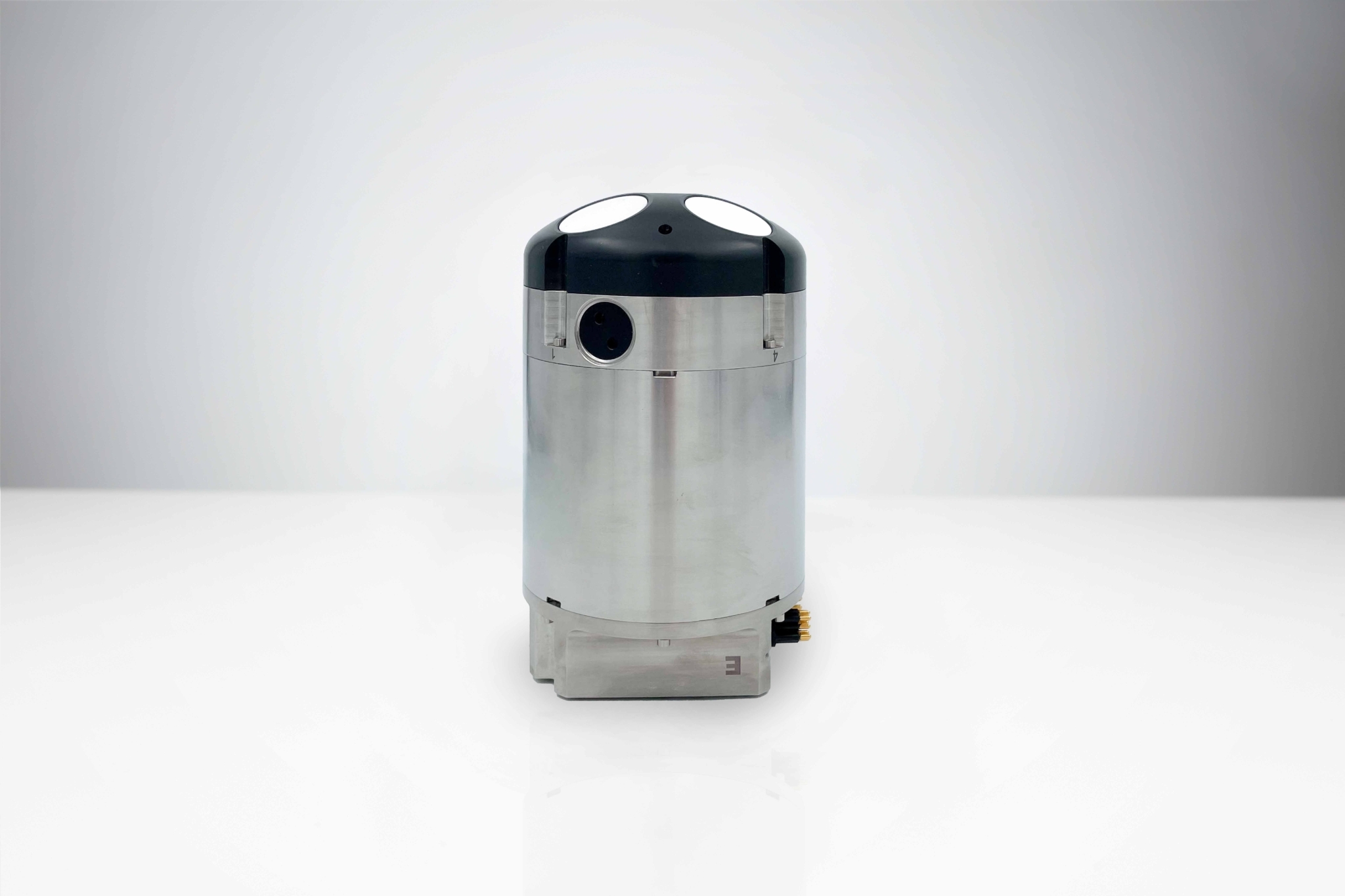

Nortek DVL 500 Compact 6000m Side

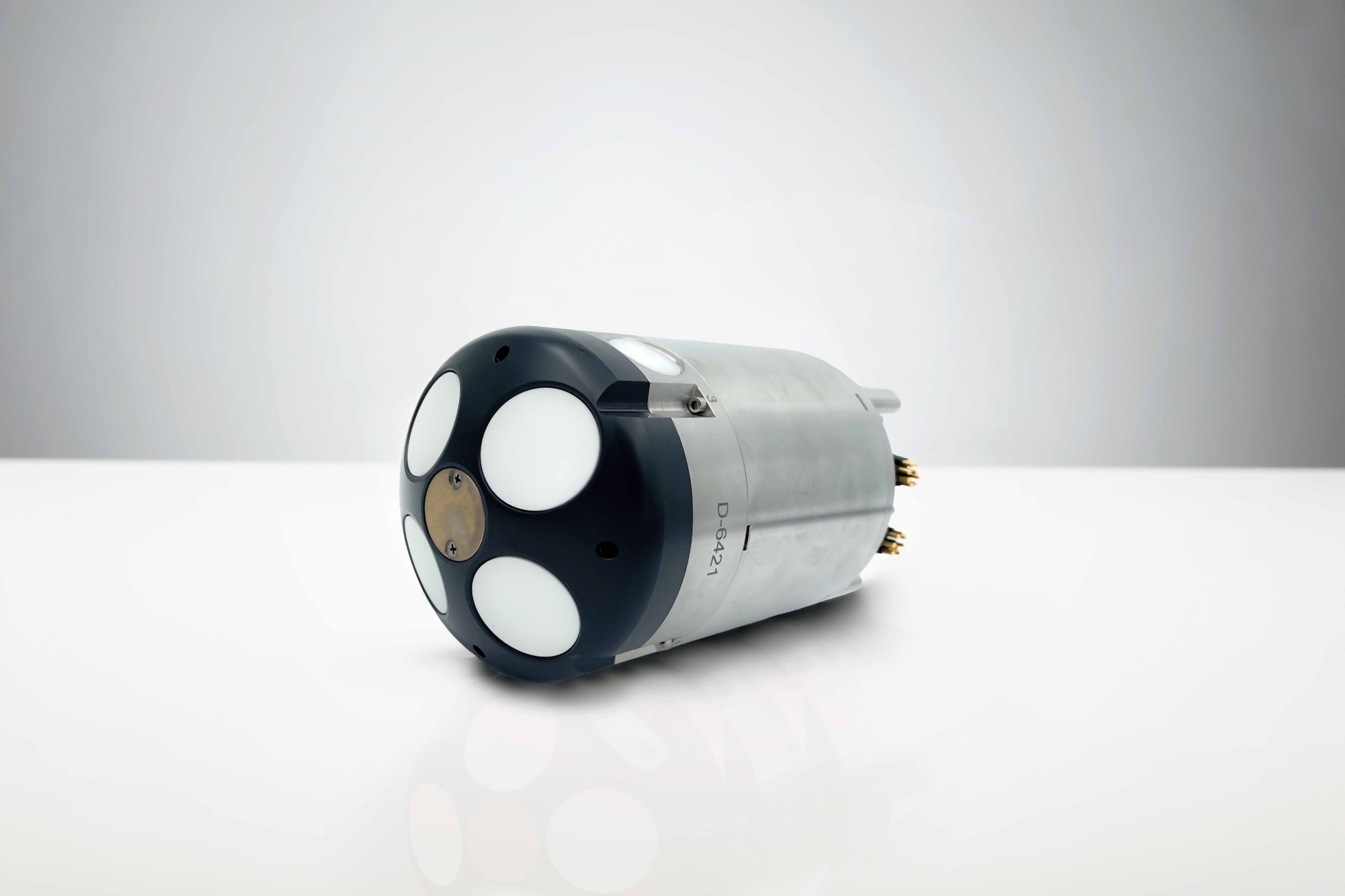

Nortek DVL 500 Compact 6000m Side2

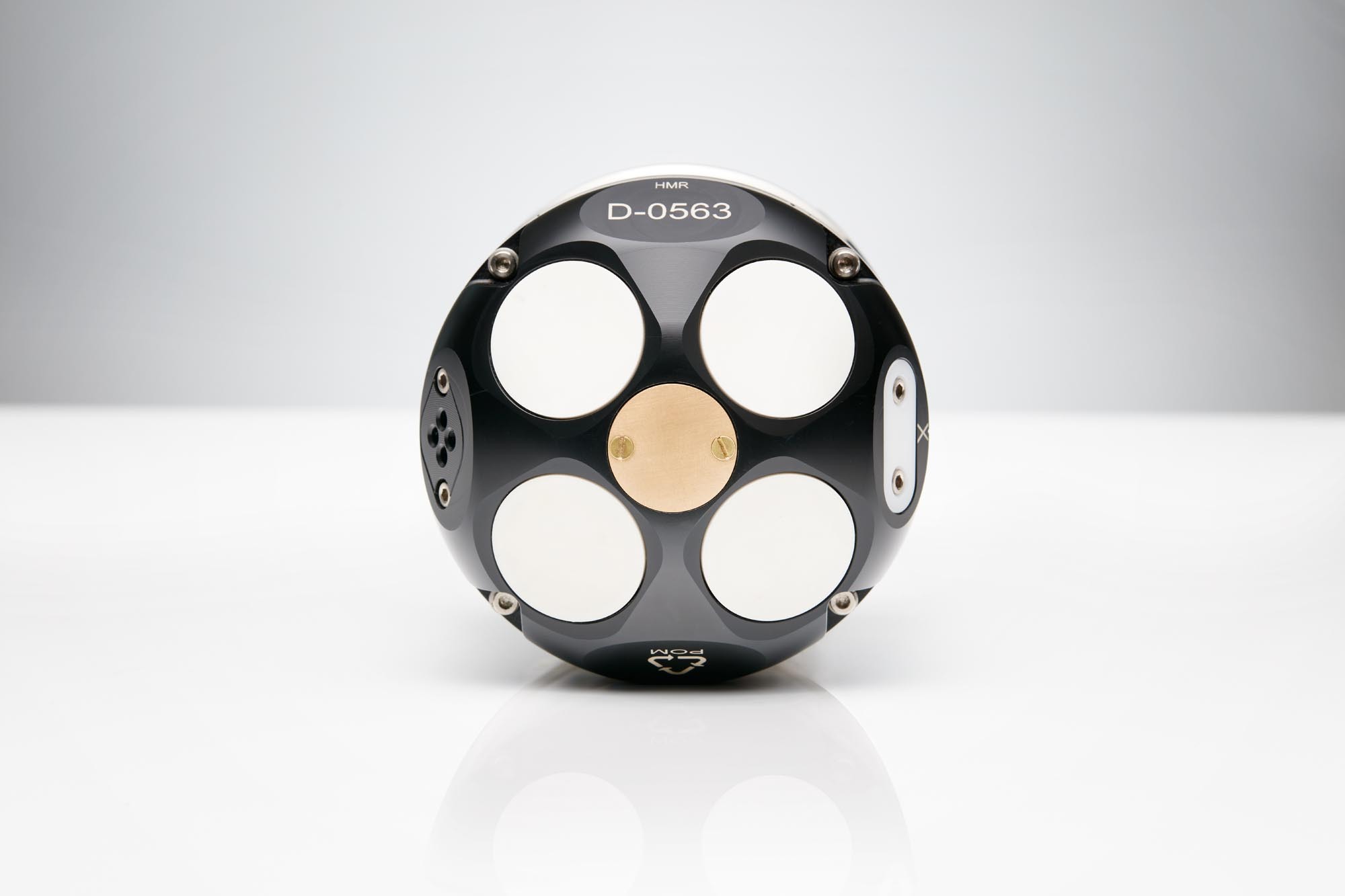

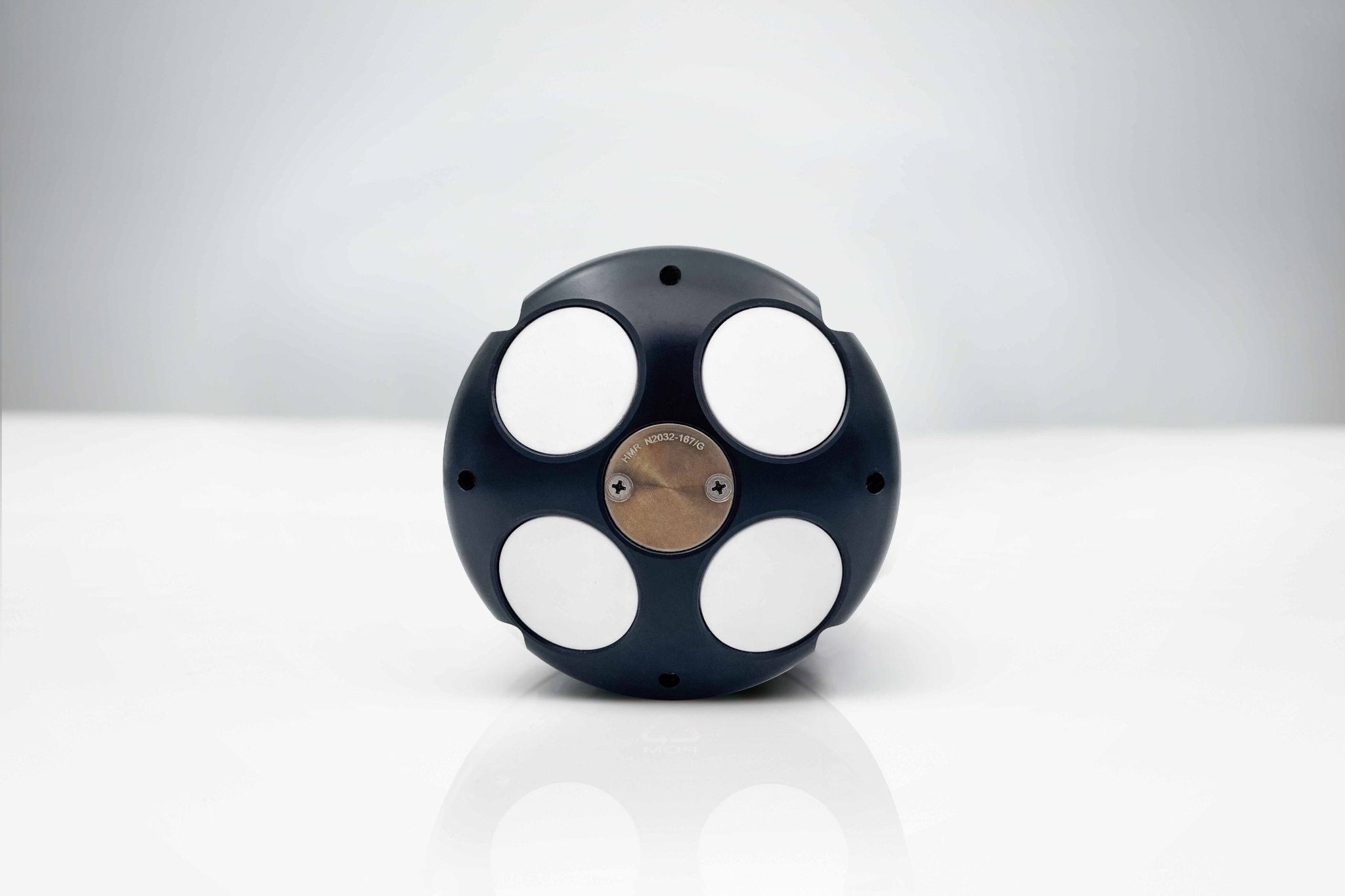

Nortek DVL 500 Compact 6000m Front
Nortek DVL 500 Compact 6000m Side
Nortek DVL 500 Compact 6000m Side2
Nortek DVL 500 Compact 6000m Front

Navigation

DVL 500 Compact

6000 m, Generation 3

Bottom-track from 0.1 to 175 m range; 6000 m operational depth

  • Bottom-track from 0.1-175 m range
  • Per-ping and per-beam data quality estimates
  • 6000 m operational depth

Overview

The DVL 500 Compact combines the compact design of the standard DVL 1000 with the superior bottom-track range of the DVL 500. It can fly higher in the water column and closer to the seabed than similar equipment, enabling small vehicles to do bigger jobs.

Download our guide to Nortek DVLs here.

  • Currents
  • Bottom track

Highlights

  • Bottom-track from 0.1-175 m range
  • Per-ping and per-beam data quality estimates
  • 6000 m operational depth

Usage

  • Next-generation compact survey vehicles
  • Small vehicles requiring longer bottom track range in deep water
  • Compact AUVs with high accuracy requirements
  • Increase range of vehicles with existing DVL 1000 without vehicle redesign

Integration

With the best balance of size and range in the survey-grade DVL market, the 6000m rated DVL 500 Compact is equipped for easy integration with leading INS systems to create a robust, reliable navigation system, tested and proven across AUV, ROV, USV and other platforms. As with all of Nortek's DVLs, the DVL 500 Compact is compatible with top control software including EIVA, Seebyte and Greensea.

Reliability

Tested in demanding conditions in the Oslo fjord, the DVL 500 Compact has a proven track record in areas of variable bathymetry and conditions. The water track feature provides a velocity backup if the bottom becomes out of range. The spectrum analyzer assures thorough system level integration.

Results

The DVL 500 Compact provides reliable navigation in the most demanding conditions across multiple platforms. The addition of simultaneous current profiles improves operational safety and allows opportunistic oceanographic data collection.

Download PDF

Bottom velocity

Single ping std @ 1.5 m/s

0.8 cm/s at 1/2 max altitude

Long-term accuracy

±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)

Minimum altitude

0.1 m

Maximum altitude

175 m

Velocity resolution

0.01 mm/s

Maximum ping rate

8 Hz max

Water tracking

Minimum accuracy

0.3% of measured value ± 0.3 cm/s

Minimum range

4.0 m

Current profiling

Minimum accuracy

0.3% of measured value ± 0.3 cm/s

Velocity resolution

0.1 cm/s

Interval

User-specified Nth ping

Maximum range*

70 m

Blanking

0.5 m

Cell size

0.5-4.0 m

Max # cells

140

*Dependent on measurement conditions

Environmental

Operating temperature

-4 to +40 °C

Storage temperature

-20 to +60 °C

Vibration

IEC60068-2-64

EMC approval

IEC/EN 61000-6-2, 61000-6-3

Mechanical

Depth rating

6000 m *

Weight

4.15 kg / OEM 2.5 kg

Weight in water

1.7 kg

Height

185 mm

Diameter

ø 114 mm

* DVL 500c products delivered before March 2024 are depth rated to 4000m not 6000m. Please contact Nortek if you are unsure about the depth-rating of your instrument.

Hardware

Frequency of operation

500 kHz

Beam width

5.8°

Configuration

4-beam Janus array convex transducer, 25° beam angle

Internal memory

16 GB / 64 GB optional

Frequency of operation

500 kHz

Bandwidth

25% centered at transmit frequency

Interfaces

Serial (either serial or Ethernet)

Configurable RS-232 or RS-422, SubConn connector, 8-pin male

Ethernet

10/100 Mbits Auto MDI-X. TCP/IP, UDP/IP, HTTP protocols. Fixed IP / DHCP client /Auto IP address assignment. UPnP and Nortek proprietary instrument discovery over Ethernet. IEEE1588/PTP and NTP for absolute time stamping. Multiple simultaneous data format transmission possible.

Data formats

Nortek proprietary w/ 1 ms time stamp accuracy, NMEA0183, variants of PDx

Trigger

Internal 1, 2, 3, 4, 5, 6, 7 or 8 Hz or Trigger In. Trigger option through command (Ethernet or serial) External TTL or 485 lines: (configurable Rising/Falling/Edges)

Sensors

Pressure

0.1% FS /precision better than 0.002% of full scale per sample

Temperature

-4° to +40 °C ± 0.1 °C

Power

DC input

12-48 V

Maximum continuous current

1.5 A

Average power

3.0 W*

* Power based on 1 Hz sampling and altitude with greatest transmit pulse.

Materials

Standard models

POM and titanium housing

Compare similar products

Nortek DVL 500k Hz Compact Gen3 6000m 2
Nortek DVL 1 M Hz 500k Hz Compact Gen3 6000m
Nortek Produkter 13051725666
Nortek DVL333 6000m
Products
DVL 500 Compact
DVL 1000
DVL 500
DVL 333
Frequency
500 kHz
1 MHz
500 kHz
333 kHz
Features
Bottom track, water track, current profiles
Bottom track, water track, current profiles
Bottom track, water track, current profiles
Bottom track, water track, current profiles
Depth rating options
300 m, 6000 m
300 m, 6000 m
300 m, 6000 m
300 m, 6000 m
Bottom track range (min - max)
0.1 m - 175 m
0.1 m - 75 m
0.1 m - 200 m
0.1 m - 375 m
Current profiling range
70 m
30 m
70 m
100 m
Long-term accuracy
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
Maximum ping rate (configuration and range dependent)
8 Hz
8 Hz
8 Hz
8 Hz
Head diameter
114 mm
114 mm
186 mm
186 mm
Additional options
Current profiles, Seanet connector for integration with TechnipFMC Schilling Robotics ROVs, rapid pressure output
Current profiles, rapid pressure output
Current profiles, rapid pressure output
Current profiles, rapid pressure output
