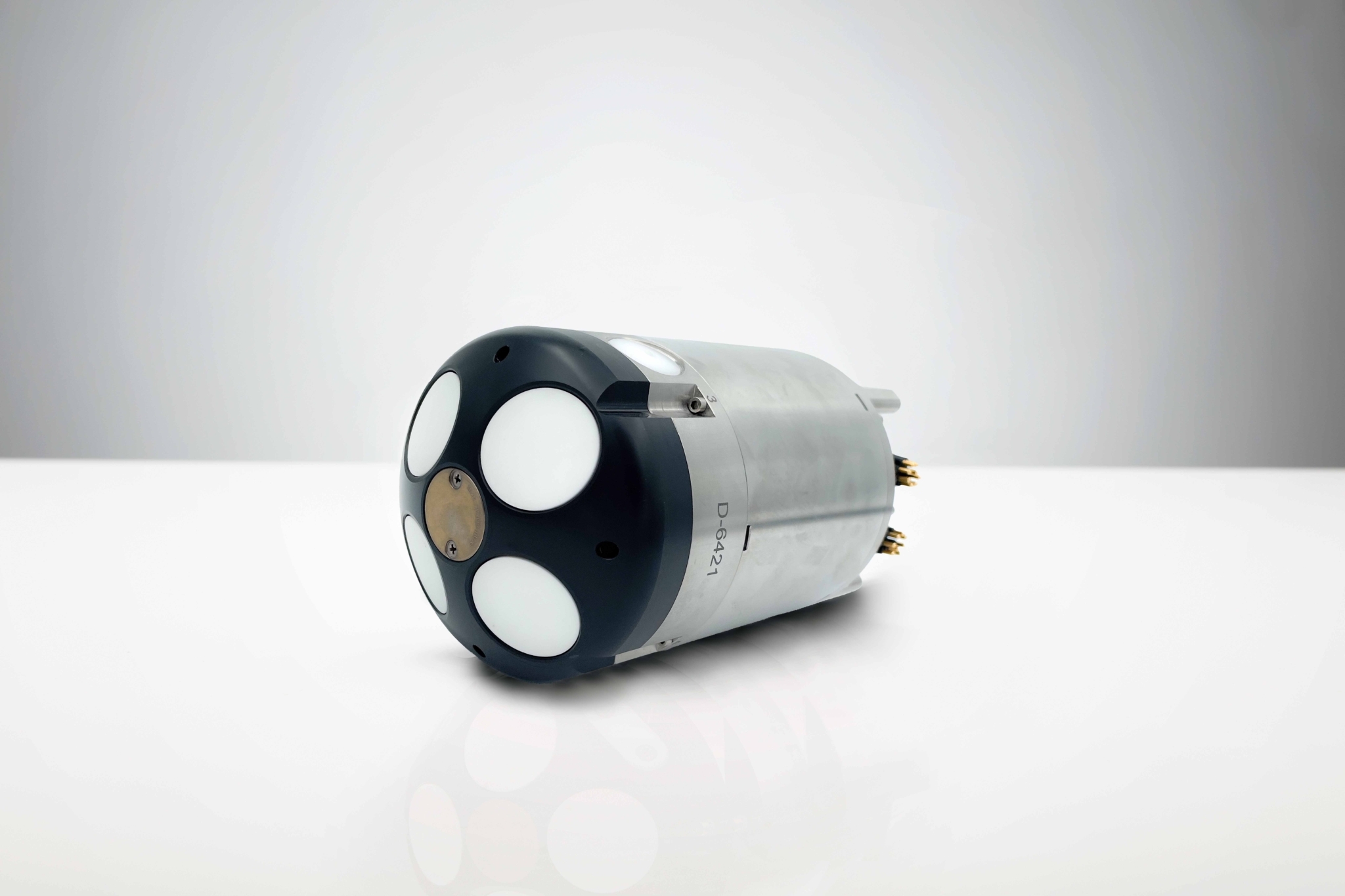

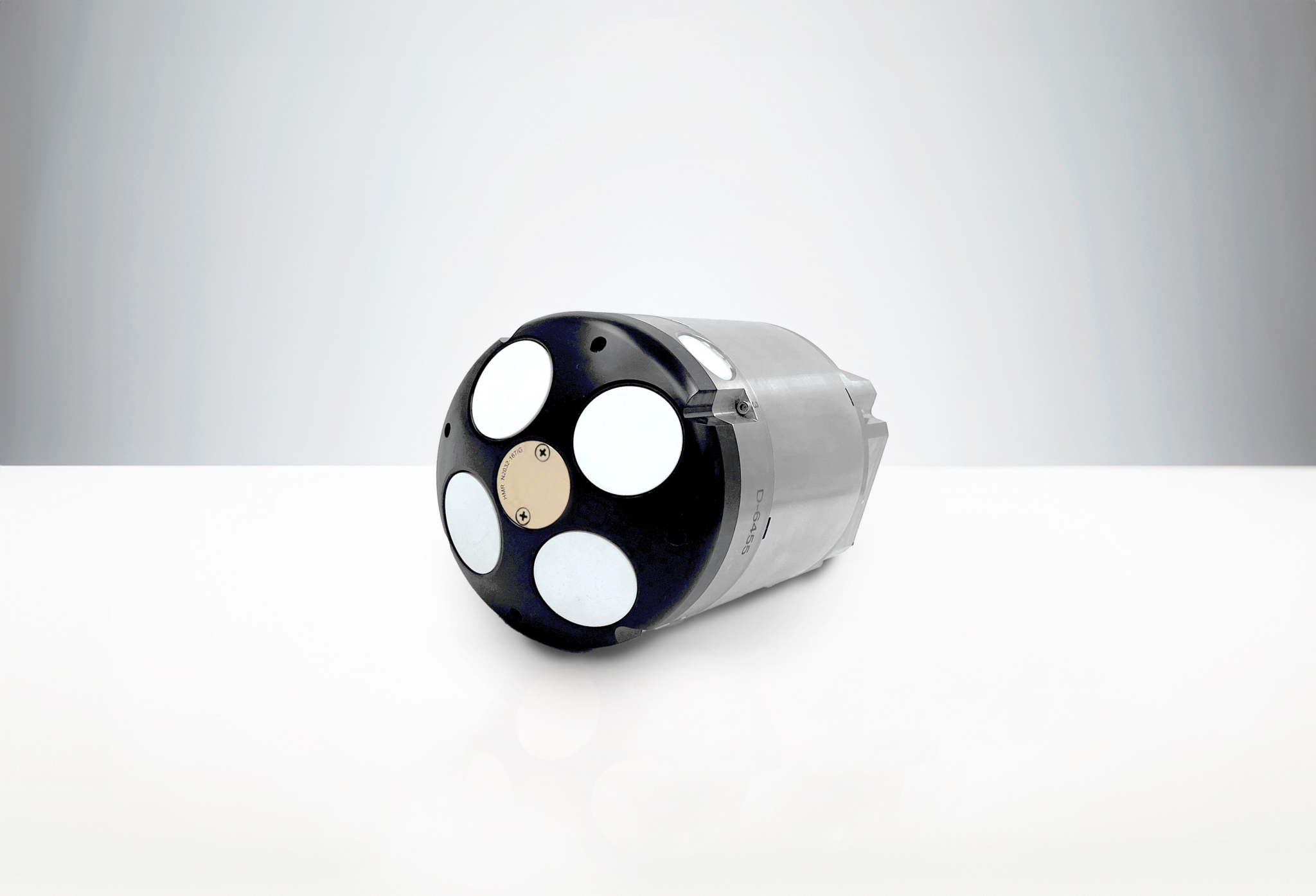

Nortek DVL 1000 6000m Side2

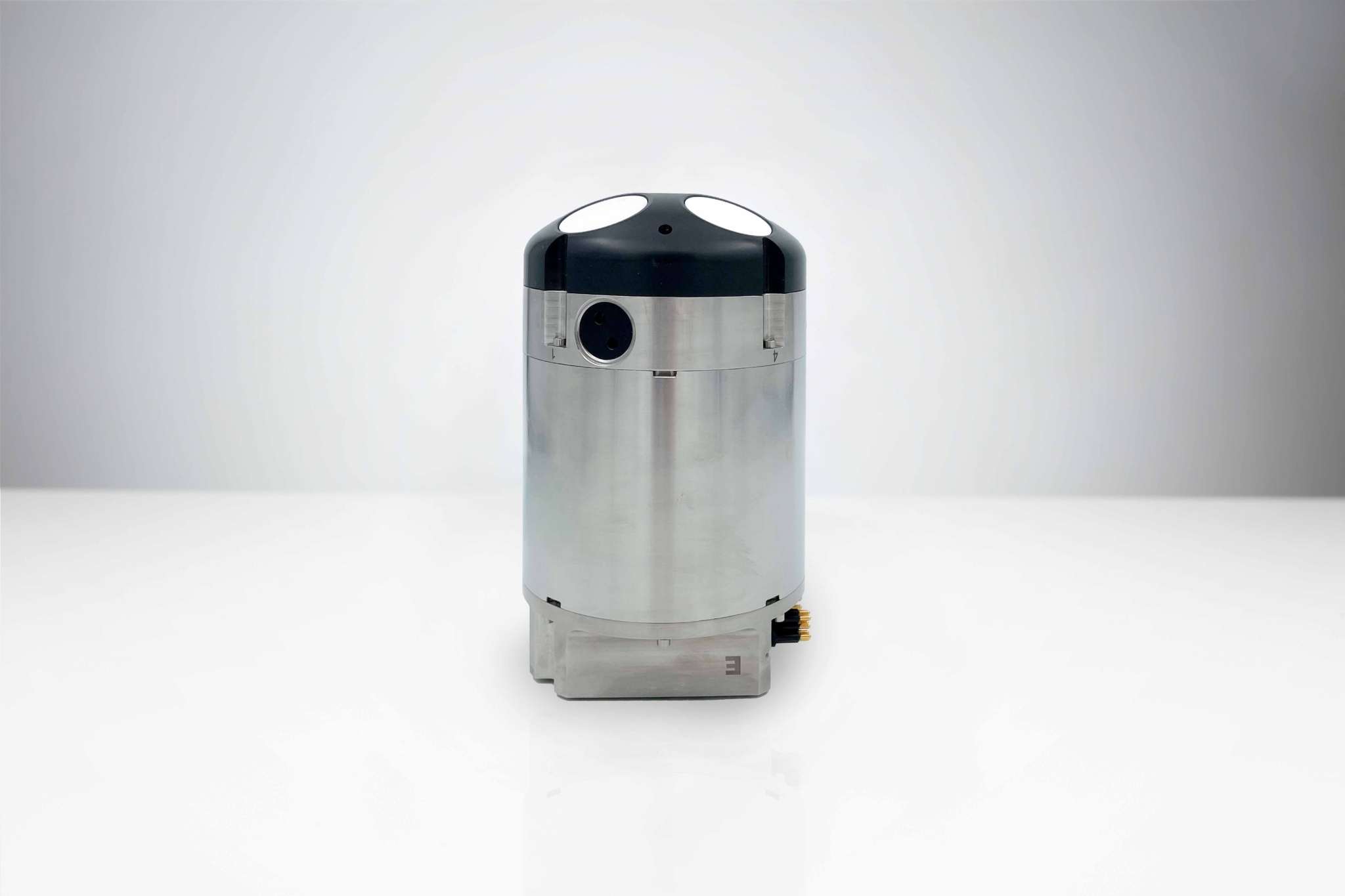

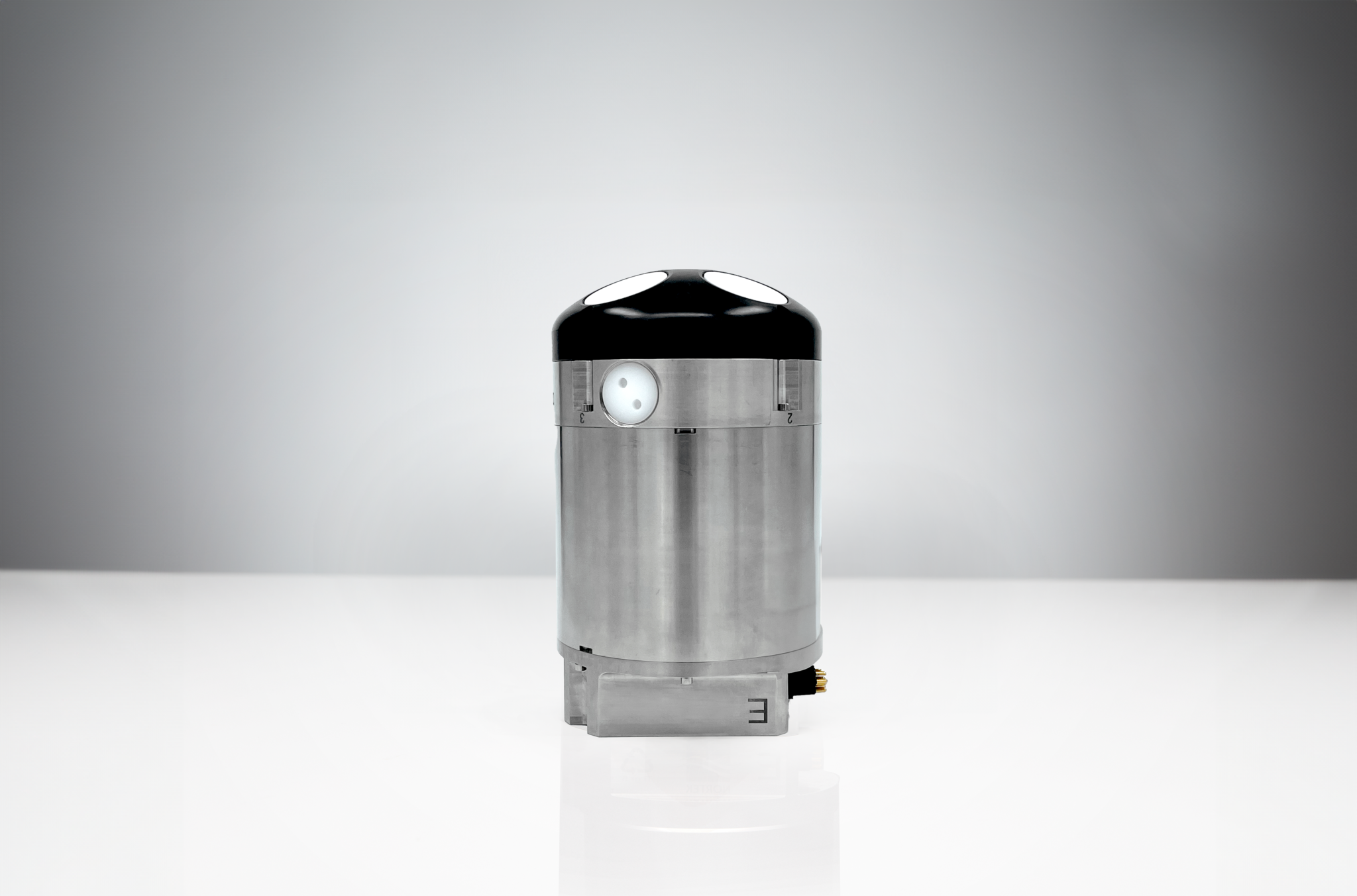

Nortek DVL 1000 6000m Side

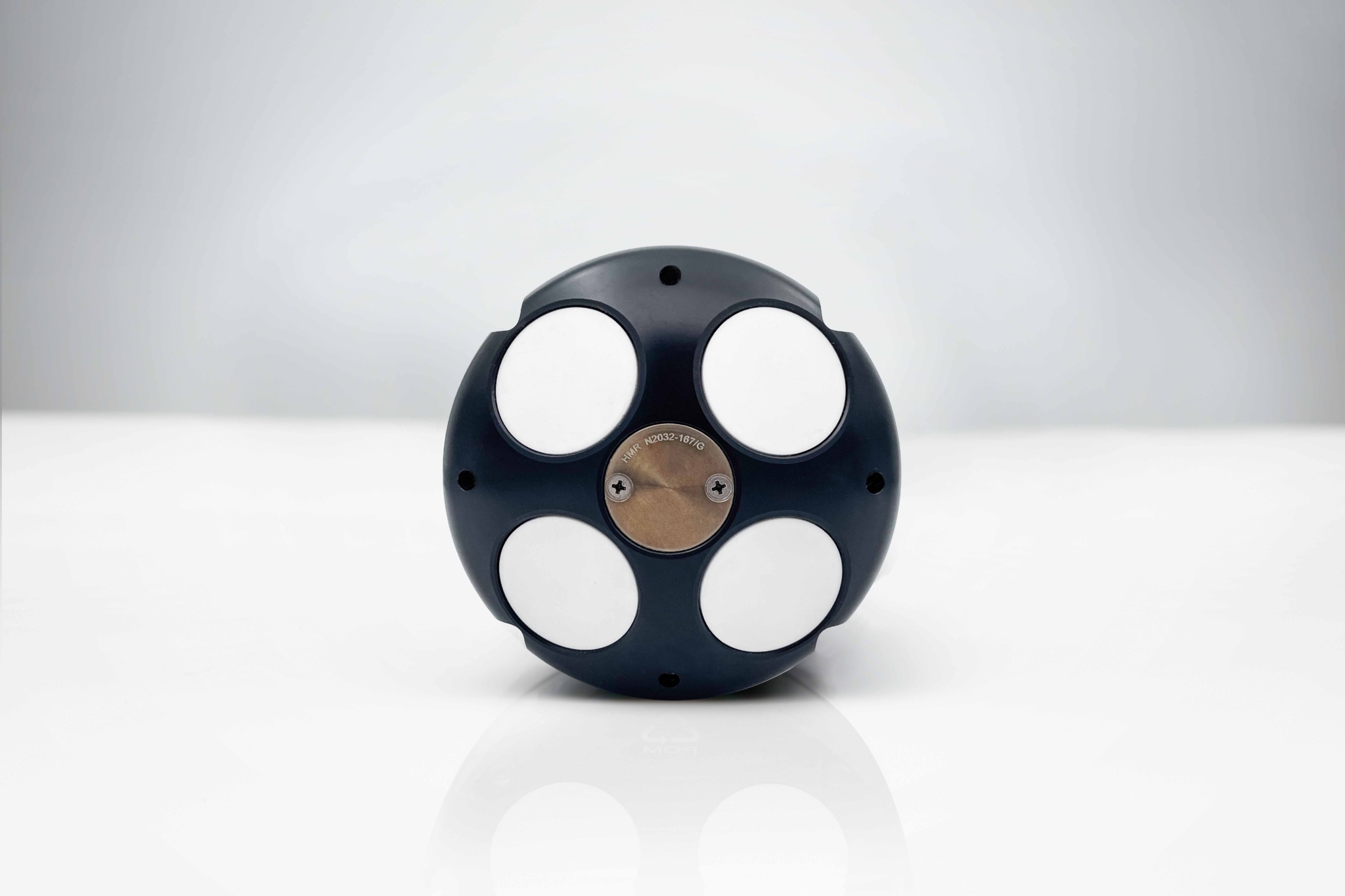

Nortek DVL 1000 6000m Front
IMG 0139
Nortek DVL 1000 6000m Side2
Nortek DVL 1000 6000m Side
Nortek DVL 1000 6000m Front
IMG 0139

Navigation

DVL 1000

6000 m, Generation 3

Bottom-track from over 0.1 to 75 m range; 6000 m max. operational depth

  • Industry-wide acceptance
  • Bottom track from 0.1-75 m range
  • Quality estimates - per beam and ping

Overview

The DVL 1000 is our smallest survey-grade Doppler Velocity Log. It combines compact design with unprecedented functionality, being able to fly higher in the water column and closer to the seabed than similar equipment. It has a maximum operational depth of 6000 m and is ideally suited for subsea navigation where size and weight are a concern. This 1 MHz Doppler Velocity Log is used by industry leaders in the subsea market because of its high accuracy and state-of-the-art technology.

Download our guide to Nortek DVLs here.

  • Currents
  • Bottom track

Highlights

  • Industry-wide acceptance
  • Bottom track from 0.1-75 m range
  • Quality estimates - per beam and ping

Usage

  • Integration on observation-class ROVs and AUVs
  • Near-bottom operations in deep-sea areas
  • Precision navigation for highly accurate subsea surveys

Integration

This 6000m rated survey-grade DVL is equipped for easy integration with leading INS systems to create a robust, reliable navigation system, tested and proven across AUV, ROV, USV and other platforms of all sizes. As with all of Nortek's DVLs, the DVL 1000 is compatible with top control software including EIVA, Seebyte and Greensea.

Reliability

Tested in demanding conditions in the Oslo fjord, the DVL 1000 has a proven track record in areas of variable bathymetry and conditions. The water track feature provides a velocity backup if the bottom becomes out of range. The spectrum analyzer assures thorough system level integration.

Results

The DVL 1000 provides reliable navigation in the most demanding conditions across multiple platforms. The addition of simultaneous current profiles improves operational safety and allows opportunistic oceanographic data collection.

Download PDF

Bottom velocity

Single ping std @ 1.5 m/s

0.8 cm/s at 1/2 max altitude

Long-term accuracy

±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)

Minimum altitude

0.1 m

Maximum altitude

75 m

Velocity resolution

0.01 mm/s

Maximum ping rate

8 Hz max

Water tracking

Minimum accuracy

0.3% of measured value ± 0.3 cm/s

Minimum range

2.0 m

Current profiling

Minimum accuracy

0.3% of measured value ± 0.3 cm/s

Velocity resolution

0.1 cm/s

Interval

User-specified Nth ping

Maximum range*

30 m

Blanking

0.1 m

Cell size

0.2-2.0 m

Max # cells

150

*Dependent on measurement conditions

Environmental

Operating temperature

-4 to +40 °C

Storage temperature

-20 to +60 °C

Vibration

IEC60068-2-64

EMC approval

IEC/EN 61000-6-2, 61000-6-3

Mechanical

Depth rating

6000 m *

Weight

4.15 kg / OEM 2.5 kg

Weight in water

1.7 kg

Height

185 mm

Diameter

ø114 mm

* DVL 1000 products delivered before March 2024 are depth rated to 4000m not 6000m. Please contact Nortek if you are unsure about the depth-rating of your instrument.

Hardware

Frequency of operation

1 MHz

Beam width 2.9°

2.9°

Configuration

4-beam Janus array convex transducer, 25° beam angle

Internal memory

16 GB / 64 GB optional

Bandwidth

25% centered at transmit frequency

Interfaces

Serial (either serial or ethernet)

Configurable RS232 or RS422, 8-pin male

Ethernet

10/100 Mbits Auto MDI-X.TCP/IP, UDP/IP, HTTP protocols. Fixed IP / DHCP client /Auto IP address assignment. UPnP and Nortek proprietary instrument discovery over Ethernet. IEEE1588/PTP and NTP for absolute time stamping.Multiple simultaneous data format transmission possible.

Data formats

Nortek proprietary w/ 1 ms time stamp accuracy, NMEA0183, Variants of PDx

Trigger

Internal 1, 2, 3, 4, 5, 6, 7 or 8 Hz or Trigger In. Trigger option through command (Ethernet or serial) External TTL or 485 lines: (configurable Rising/Falling/Edges)

Sensors

Pressure

0.1% FS /precision better than 0.002% of full scale per sample

Temperature

-4° to +40 °C ± 0.1 °C

Power

DC input

12-48 V

Maximum continuous current

1.5 A

Average power

1.3 W*

* Power based on 1 Hz sampling and altitude with greatest transmit pulse.

Materials

Standard models

POM and titanium housing

Nortek DVL 1 M Hz 500k Hz Compact Gen3 6000m
Nortek Nucleus1000 1000m
Nortek DVL 500k Hz Compact Gen3 6000m 2
Nortek Produkter 13051725666
Products
DVL 1000
Nucleus 1000
DVL 500 Compact
DVL 500
Frequency
1 MHz
1 MHz
500 kHz
500 kHz
Features
Bottom track, water track, current profiles
Bottom track, water track, current profiles, altimeter, AHRS / INS
Bottom track, water track, current profiles
Bottom track, water track, current profiles
Depth rating options
300 m, 6000 m
300 m, 1000 m
300 m, 6000 m
300 m, 6000 m
Bottom track range (min - max)
0.1 m - 75 m
0.1 m - 50 m
0.1 m - 175 m
0.1 m - 375 m
Current profiling range
30 m
30 m
70 m
70 m
Long-term accuracy
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
<0.3% (export-controlled), >1% (license-free)
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
±0.1% / ±0.1 cm/s (export-controlled), >1% (license-free)
Maximum ping rate (configuration and range dependent)
8 Hz
8 Hz
8 Hz
8 Hz
Head diameter
114 mm
90 mm
114 mm
186 mm
Additional options
Current profiles, rapid pressure output
Current profiles, INS license, OEM housing
Current profiles, Seanet connector for integration with TechnipFMC Schilling Robotics ROVs, rapid pressure output
Current profiles, rapid pressure output
