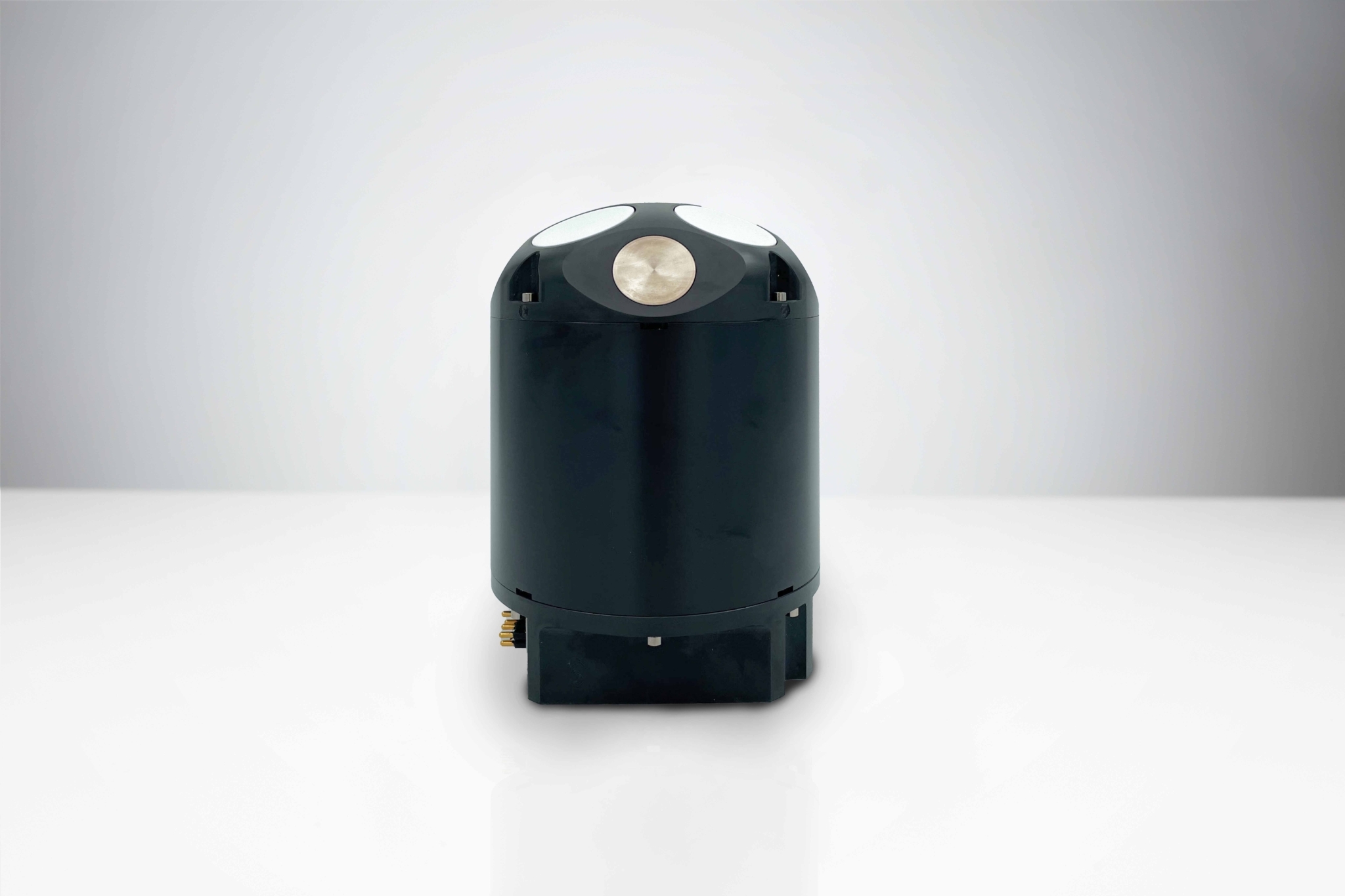

Nortek DVL500 Compact 300m side

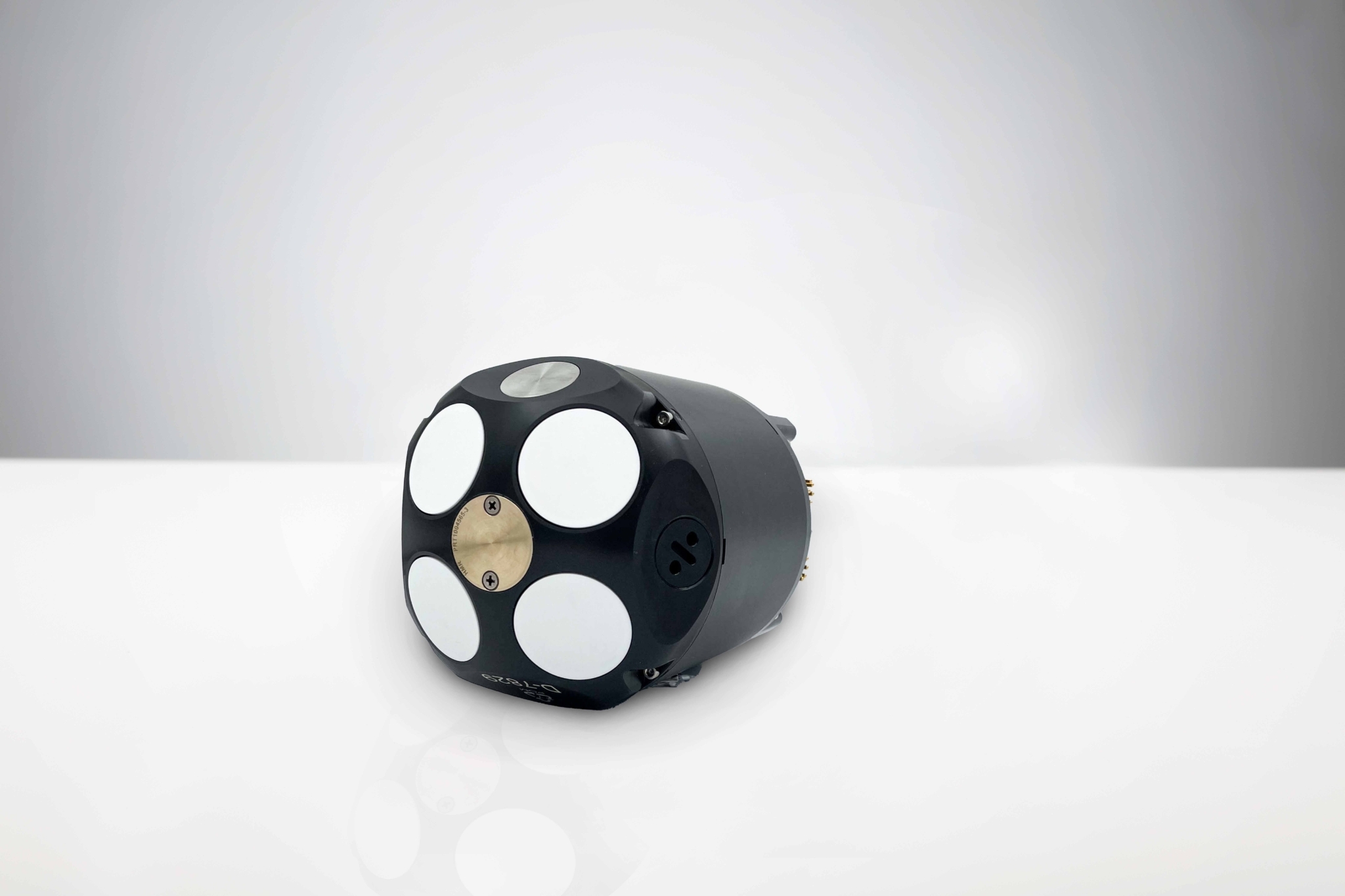

Nortek DVL500 Compact 300m side2
Nortek DVL500 Compact 300m Front
Nortek DVL500 Compact 300m side Nortek DVL500 Compact 300m side2 Nortek DVL500 Compact 300m Front

DOPPLER VELOCITY LOG

DVL500 Compact - 300 m

Bottom-track from 0.3 to 175 m range; 300 m operational depth

  • Bottom-track from 0.3-175 m range
  • Per-ping and per-beam data quality estimates
  • 300 m operational depth
Request a quote
Technical specification (PDF)
get help

Need Help? Get in touch.

Overview

  • The DVL500 Compact combines the compact design of the standard DVL1000 with the superior bottom-track range of the DVL500. It can fly higher in the water column and closer to the seabed than similar equipment, enabling small vehicles to do bigger jobs.

Highlights

  • Bottom-track from 0.3-175 m range
  • Per-ping and per-beam data quality estimates
  • 300 m operational depth

Applications

  • Small vehicles requiring longer bottom track range
  • Compact AUVs with high accuracy requirements
  • Easy integration with leading inertial navigation systems (INS)

    • Toggle all

    • Bottom velocity

      Single ping std @ 3 m/s 0.5 cm/s
      Long-term accuracy ±0.1% / ±0.1 cm/s
      Minimum altitude 0.3 m
      Maximum altitude 175 m
      Velocity resolution 0.01 mm/s
      Maximum ping rate 8 Hz max

    • Water tracking

      Minimum accuracy 0.3% of measured value ± 0.3 cm/s
      Minimum range 4.0 m

    • Current profiling

      Minimum accuracy 0.3% of measured value ± 0.3 cm/s
      Velocity resolution 0.1 cm/s
      Interval User-specified Nth ping
      Maximum range 70 m
      Blanking 0.5 m
      Cell size 0.5-4.0 m
      Max # cells 140

    • Environmental

      Operating temperature -4 to +40 °C
      Storage temperature -20 to +60 °C
      Vibration IEC60068-2-64
      EMC approval IEC/EN 61000-6-2, 61000-6-3

    • Mechanical

      Depth rating 300 m
      Weight 1.30 kg
      Weight in water 0.15 kg
      Height 158 mm
      Diameter ø 114 mm

    • Hardware

      Frequency of operation 500 kHz
      Beam width 5.8°
      Configuration 4-beam Janus array convex transducer, 25° beam angle
      Internal memory 16 GB / 64 GB optional
      Frequency of operation 500 kHz
      Bandwidth 25% centered at transmit frequency

    • Interfaces

      Serial (either serial or Ethernet) Configurable RS232 or RS422 SubConn connector, 8-pin male
      Ethernet 10/100 Mbits Auto MDI-X. TCP/IP, UDP/IP, HTTP protocols. Fixed IP / DHCP client / Auto IP address assignment. UPnP and Nortek proprietary instrument discovery over Ethernet. IEEE1588/PTP and NTP for absolute time stamping. Multiple simultaneous data format transmission possible.
      Data formats Nortek proprietary w/ 1 ms timestamp accuracy, NMEA0183, variants of PDx
      Trigger Internal 1, 2, 3, 4, 5, 6, 7 or 8 Hz or Trigger In. Trigger option through command (Ethernet or serial). External TTL or 485 lines: (configurable Rising/Falling/Edges)

    • Sensors

      Pressure 0.1% FS /precision better than 0.002% of full scale per sample
      Temperature -4° to +40 °C ± 0.1 °C

    • Power

      DC input 12-48 V
      Maximum continuous current 1.5 A
      Average power 3.0 W*
      * Power based on 1 Hz sampling and altitude with greatest transmit pulse.

    • Materials

      Standard models POM housing

    • Toggle all

    • Technical drawings

      DVL500-C, 300 m General Arrangement - NGA032-006 Rev.-

      Download this

    • Approvals

      End User Declaration - Nortek DVL

      Download this

      Declaration of Conformity

      Download this

    • Toggle all

    • Main product

      01

      DVL500-C, 300 m

    • Probe type / Head

      01

      4 beam head

    • Housing

      01

      Plastic housing, 300 m

    • Memory

      01

      16 GB SD card data logger

      02

      64 GB

    • Pressure sensors

      01

      Pressure sensor 0-10 m, 0.1%

      02

      Pressure sensor 0-20 m, 0.1%

      03

      Pressure sensor 0-30 m, 0.1%

      04

      Pressure sensor 0-50 m, 0.1%

      05

      Pressure sensor 0-100 m, 0.1%

      06

      Pressure sensor 0-200m, 0.1%

      07

      Pressure sensor 0-300m, 0.1%

    • Cables

      01

      Cable, 8-pin female Ethernet AD2CP with RS485 trigger

      02

      Cable, 8-pin female serial AD2CP with RS485 trigger

      03

      Cable, 8-pin female Ethernet AD2CP with TTL trigger

      04

      Cable, 8-pin female serial AD2CP with TTL trigger

    • Other

      01

      Bottom-track

      02

      Current profiles, 4 beams
